Stable Operation Traffic Hydraulic Road Blocker Lifting Column Adjustable Rise Time

Basic Information
Place of Origin: Guangdong
Brand Name: SECUERA
Certification: CE,RSOH
Model Number: ZA-H219
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: International standard package
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/sets/month
Detail Information
Product Name: Automatic Rising Road Blocker Rising Bollard Diameter: 11.219*600*6mm,(diameter* Rise* Wall Thickness) (other Size Can Be Customized)
Weight: 180 Kg Rise Time: 2 ~ 3s(adjustable)
Protection Grade: IP67 Controller: 500*400*200mm (up To 6 Lifting Columns Can Be Controlled
Material: 304 Does Not Induce Steel System Power (w): 1.5KW/2.2KW/3.7KW
The Minimum Pressure: Can Pass The Container Truck Below 80 Tons System Control: Electro-hydraulic
High Light:

parking space blocker

,

remote control parking bollards


Product Description





Electro-hydraulic Integrated Rising Bollards Security Traffic Road Blockers Barriers Lifting Column



Automatic Rising Road Blocker, Hydraulic Lifing Road Blockers,Road Block Equipment





Use Range:

Products are widely used in urban transportation, military and national important institutions and surrounding areas, pedestrian streets, highways, toll stations, airports, schools, banks, large clubs, parking lots and many other occasions. Through the restrictions on passing vehicles, the traffic order, that is, the safety of major facilities and places is effectively guaranteed.

  • 1. Gates of important units such as state organs and the military: install lifting and riot-proof roadblocks, and control the lifting and lowering by means of electric, remote control or credit card, effectively preventing the entry of external unit vehicles and illegal vehicles.
  • 2. Pedestrian Street: Install a lifting roadblock at the intersection of the pedestrian street. The roadblock is in a raised state and restricts the entry and exit of the vehicle. In case of emergency or special circumstances (such as fire, first aid, leadership inspection, etc.), the roadblock can be quickly lowered to allow the vehicle to pass.
  • 3. Road isolation belt: In the non-fully enclosed road isolation belt, a lifting road barrier can be used, which usually prevents the vehicle from turning left or turning around. In case of special conditions such as road construction and road blockage, roadblocks can be lowered to allow vehicles to be diverted.
  • 4. Multi-purpose plaza: During the daytime, roadblocks rise, vehicles are prohibited from entering the plaza, and the plaza is used as a temporary parking lot at night, and the roadblocks are put down, and the vehicles can enter the parking.
  • 5. Open parks: Elevated roadblocks are installed at open park intersections. Usually, roadblocks rise to prevent vehicles from passing, and visitors can pass freely. In case of special circumstances, lower the lift barrier to allow the vehicle to pass.
  • 6, The community, banks, schools and other places that restrict the entry of vehicles and ensure the effective use of fire exits.
  • 7. Expressway: It is necessary to urgently close the road and use the automatic lifting road pile, which is convenient and quick, and can solve the pressure of insufficient police force.



Product Performance:

  • 1. The structure is sturdy and durable, with large load carrying capacity, stable operation and low noise.
  • 2, take control, system performance is stable and reliable, easy to integrate.
  • 3. The lifting column and the other devices such as the gate gate are linked and controlled, and can also be combined with other control devices to realize automatic control.
  • 4. In the case of power failure or failure, if the lifting column needs to be lowered in the raised state, the raised column can be manually lowered to the horizontal position to allow the vehicle to pass.
  • 5. Adopting international leading low pressure hydraulic drive technology, the whole system is safe, reliable and stable.
  • 6. Remote control device: Through wireless remote control, it can be lifted within 30 meters around the controller (according to the radio communication environment on site).

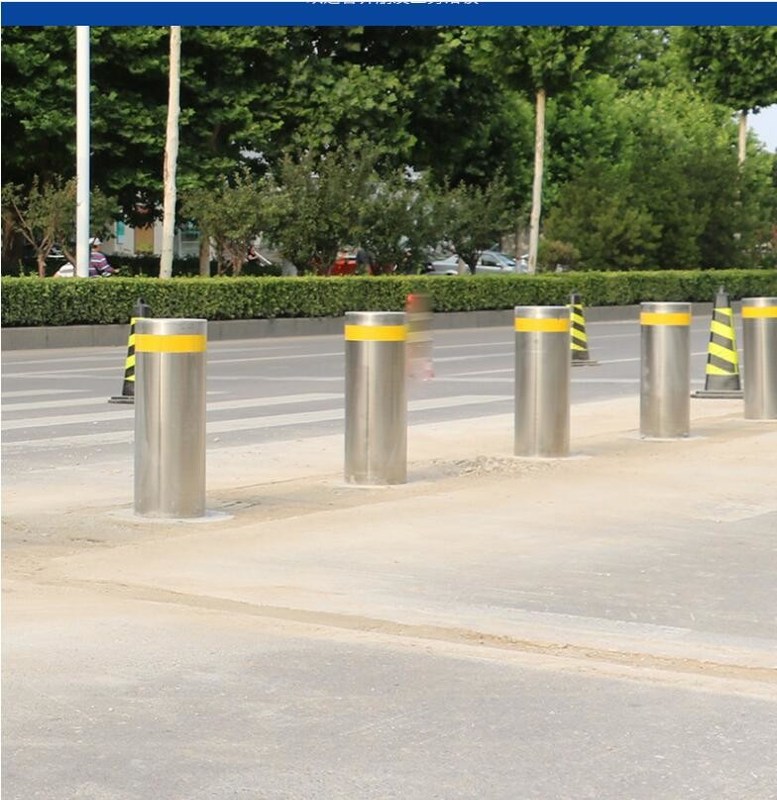

Stable Operation Traffic Hydraulic Road Blocker Lifting Column Adjustable Rise Time 0Stable Operation Traffic Hydraulic Road Blocker Lifting Column Adjustable Rise Time 1




Parameter Introduction:

System control electro-hydraulic
The minimum pressure can pass the container truck below 80 tons
Power supply 220V
System power (w) 1.5KW/2.2KW/3.7KW.
Rising time ≤ 3S (adjustable)
Falling time ≤ 1S (adjustable)
Working temperature -35 ° C ~ 75 ° C (suitable).
Storage environment -10 ° C ~ 65 ° C, rain, moisture and dust
Material 304 does not induce steel
Color a variety of colors (optional)
Rising bollard diameter 219*600*6mm,(diameter* rise* wall thickness) (other size can be customized)
Controller 500*400*200mm (up to 6 lifting columns can be controlled
