| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SECUERA |
| Certification: | CE,FCC,ROHS,ISO |
| Model Number: | SEBG-08 |
| Minimum Order Quantity: | 1 pic |
| Price: | negotiable |
| Packaging Details: | Wooden Parkage |
| Delivery Time: | 5-8 workdays |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 100 pic /Month |
| Warranty: | 3 Years | Packing: | 2pcs/ctn |
|---|---|---|---|
| Material: | Aluminium Alloy | OEM & ODM: | Support |
| Arm Type: | Straight, Folding, Fencing | Boom Length: | Max 6 Meters |
| Feathers-1: | Closing Speed Can Be Adjusted | Feathers-2: | Barrier Gate Up &down Signal Relay Switch Output |
| Feathers-3: | Barrier Gate Operation Abnormal Alarm Signal Output | Feathers-4: | R&G Traffic Light Relay Switch Signal Output. |
| High Light: | parking space blocker,access control turnstile gate |
||

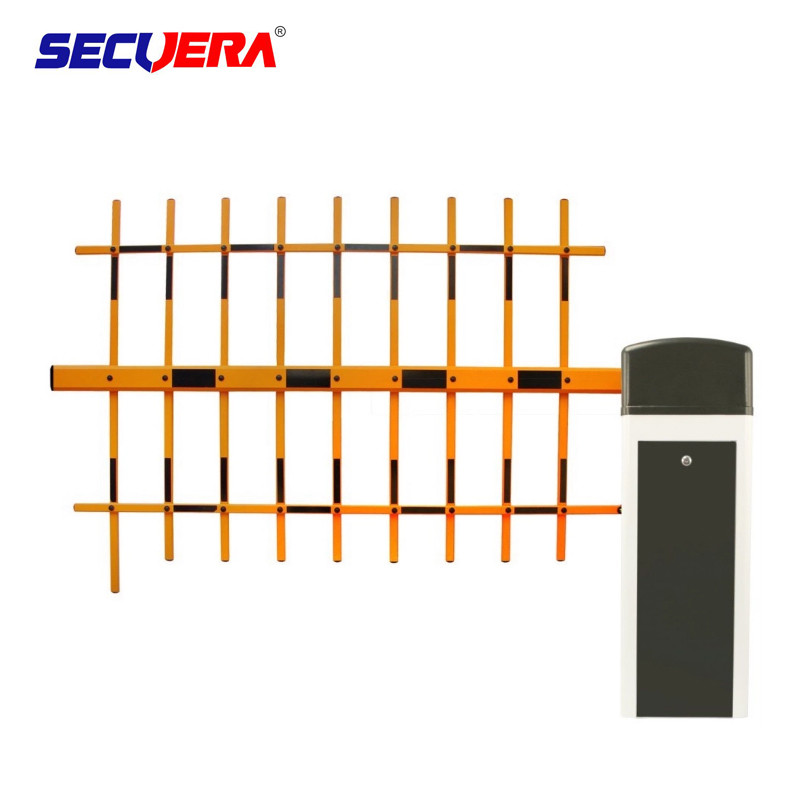

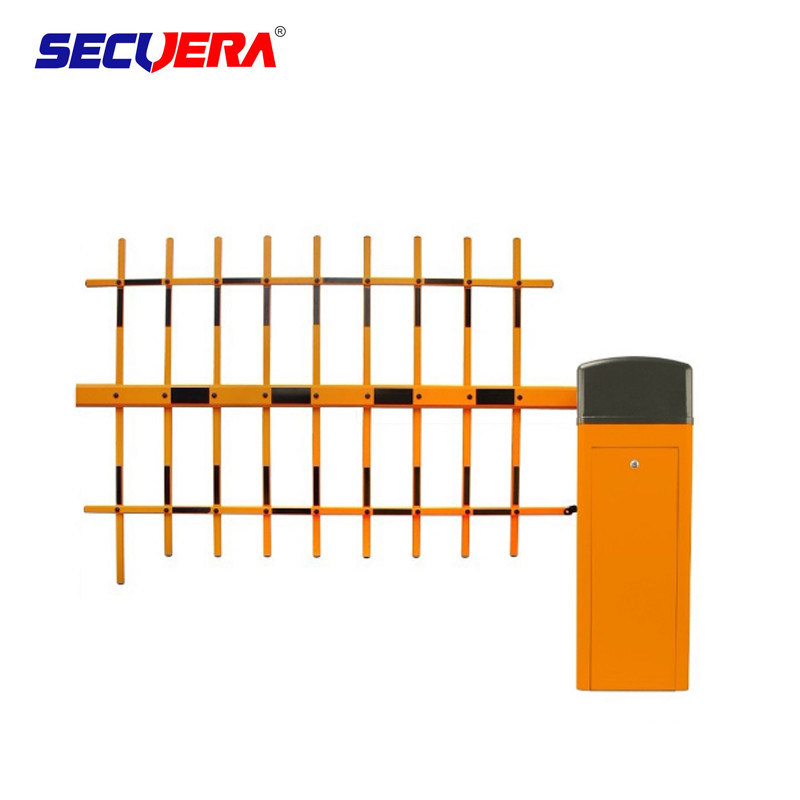

Boom Barrier Gate Parking Traffic Barrier Boom Automatic Road Barrier with Servo Motor
automatic highway barrier toll gate barrier controller specifications
| automatic highway barrier toll gate barrier Controller | ||
| Voltage(±10%) | 100-240 volt | 100-240 volt |
| Frequency(Hz) | 50-60 | 50-60 |
| Max Power Consumption(watt) | 8 | 8 |
| Fuse | F5AH | F5AH |
| Control Voltage | 24V DC/max.3000mA | 24V DC/max.3000mA |
| Input-end Number | 8 | 8 |
| Open Collector Output Number | 2 | 2 |
| Zero Level Reversal Relay Number | 3 | 3 |
| Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Protection System(IP) | 20 | 20 |
| Weight(gram) | 450gram | 450gram |
| Dimension | mm(L-W-H) | 158*126*55 |
Functions and Features
1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special
requirement, manual operation is required when power off, operating arm open and close manually also can
be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
5. Closing speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple
push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid
damage to the vehicle, and barrier gate machine.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Adjustable speed port (from 0.9s to 10 s)
20. High-strength precision cast steel, industry moving parts beyond the industry quality
Packaging& Delivery:
1. Packaging: According to Standard Export Packing or as per customers' requirements
2. Delivery: Express/ Air/ Sea/ under the requirements of customer
3. Taxes & duties: International customers are responsible for all duties and taxes,
please contact your local authority for questions related to the amount of duties or taxes
you will be responsible for.
