| Place of Origin: | China |
|---|---|
| Brand Name: | SECUERA |
| Certification: | CE,FCC,ROHS,ISO |
| Model Number: | SERHB-06 |
| Minimum Order Quantity: | 1 pic |
| Price: | negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 5-8 workdays |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 10 pic /Month |
| Warranty: | 3 Years | Product Name: | Rising Hydraulic Bollards |
|---|---|---|---|
| Life: | Over 10 Years | Material: | 304 Stainless Steel |
| Application: | Factory,School,Prison,Car Parking Station And So On | Model Number: | SERHB-06 |
| Feathers-1: | Automatically Raise/lower/stop | Feathers-2: | Variable Frequency Controller |
| Feathers-3: | Firm Foundation Plate | Feathers-4: | Built-in Valve |
| High Light: | parking space blocker,remote control parking bollards |
||

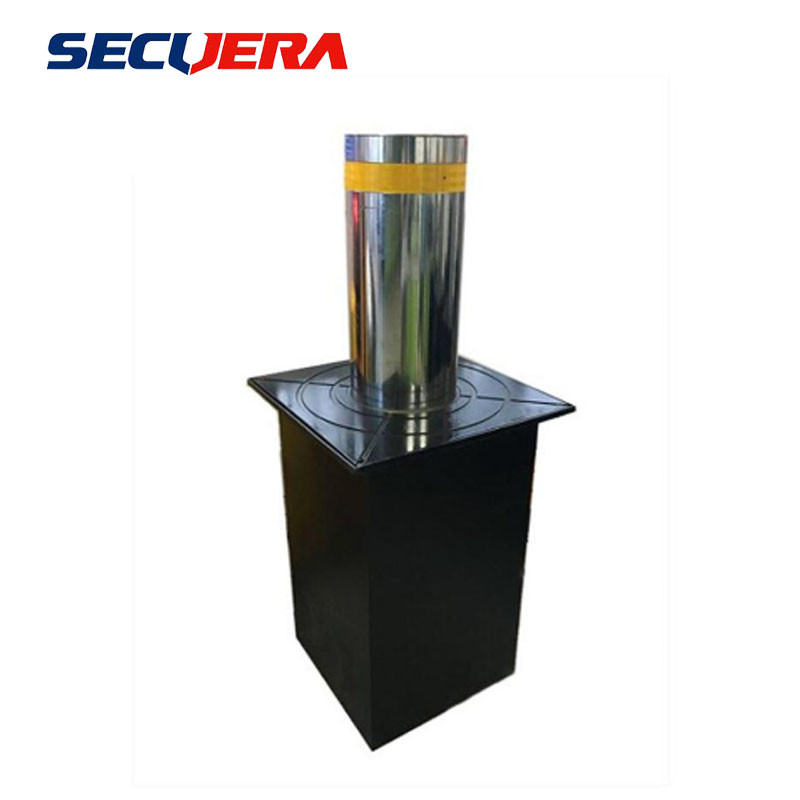

Stainless steel retractable traffic road safety automatic hydraulic rising bollard
automatic bollard in road Product Datasheet
| Model | SERHB-06 |
| Body cylinder Material | 304 stainless steel |
| Outer cylinder diameter | 325mm |
| Body Thickness | 6mm |
| Body Diameter | 219mm(+1) |
| Surface finis | Drawing / polishing / painting |
| Body height | 600mm |
| Embedded cylinder depth | 1100mm |
| Weight | 150kg |
| Embedded cylinder material | 5mm thickness carbon steel with powder coating or zinc coating surface finish |
| Reflective Strip | Available |
| Flashing light | Customized |
| Work frequency | 1500 cycles /day |
| Service life | 10-15years |
| Impact Resistance | More than 60,000 joules |
| Bearing Capacity | More than 40 ton |
| Level of noise | Less than 60 decibel |
| Control method | Cable button or wireless remote |
| Rising/lowering speed | 3s-6s(adjustable) |
| Movement | electric hydraulic |
| Installation | Cemented into the ground |
| Power Supply | 380V(control voltage 24V) |
| System Dynamic Power | 3.7Kw |
| Protection standard | IP67 anti-water, anti-shock, anti- dust,antiimpact |
automatic bollard in road Features
1. Automatically raise/lower/stop.The automated bollards adopt a heavy duty hydraulic power pack and operate by integrated control.Easy to install and operate. Built-in led flashing lights and reflective tap in the bollard head to ensure visibility and safety.
2. Variable frequency controller. Adopt variable frequency controller,the raise/lower speed 3-6s is adjustable.It can stop emergently during raising/lowering process. The control signal is electric transmission, quick and reliable.
3. Firm foundation plate.Thicken seamless 304 stainless steel with strong bearing capacity more than 40 tons. Rust protection and distortion resistance.
4. Built-in valve.In case of emergent issue for example power failure, the obstacle can be lowered by relief valve manually to make sure the passage of pedestrians and vehicles in not affected.
5. Adopt high quality great power motor, the bollards can raise/lower speedy,work stable and durable with 1500 cycles working frequency per day.The motor can be disassembled for easy maintenance.
6. Multiple security protection.Use high pressure air rifle to seal up the vent,the motor can work when soaked in water with electricity leakage protector.
