products

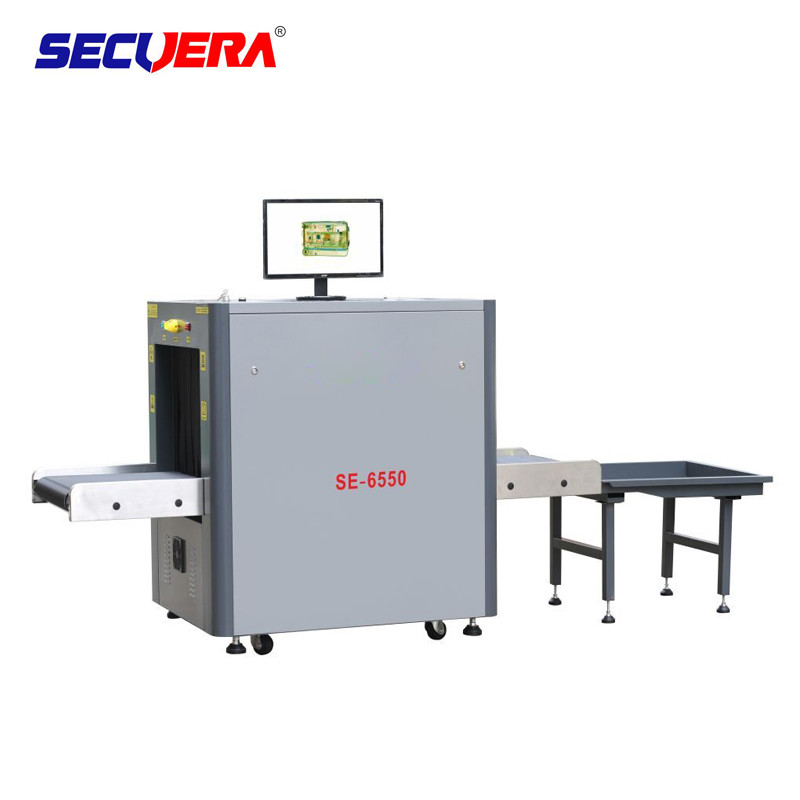

Parcel Baggag Inspection X Ray Screening Machine CE FCC RoHS ISO Certificated

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE,FCC,ROHS,ISO
Model Number: SE-6550A
Minimum Order Quantity: 1 pic
Price: negotiable
Packaging Details: Wooden Box
Delivery Time: 5-8 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 300 pic /Month
Detail Information
Warranty: 3 Years Product Name: Traffic Road Blocker
Life: Over 10 Years Material: 304 Stainless Steel
Application: Factory,School,Prison,Car Parking Station And So On Model Number: SE-6550A
Feathers-1: X-ray Sensor: L-shaped Photodiode Array Detector, 16bit Accuracy Feathers-2: Multi-energy Color
Feathers-3: High Energy / Low Energy: Two Energy Switching Display Feathers-4: Hazardous Materials Assisted Detection
High Light:

portable digital x ray machine

,

x ray baggage scanner


Product Description

CE FCC RoHS ISO certification x ray parcel baggag Iinspection security system scanner



Typical X RAY baggage scanner machine Technicial

Typical X RAY baggage scanner​ General Specification
Tunnel size
650 (W) * 500 (H) mm
Rated power
400W
Rated load
150kg (evenly distributed)
Conveyor height
63CM
Transmission mode
Electric drum
Conveyor thickness
3.0mm
Transport speed
standard 0.22M/S, adjustable speed
Radiation direction
bottom illumination
Penetration
14mm thick
Penetration resolution
Φ0.202mm
Line resolution
resolution 40AWGΦ0.0787mm>44SWG singlesolid core copper wire
Tube voltage / tube current
80KV/0.6mA
Leakage rate
<1.0μGy/h from the outer surface of the casing at 5CM
Single dose
radiation dose <1.5uGy
Net weight
300Kg
Product volume
205*98*127CM
Ray beam divergence angle
80 degrees
Equipment noise level
<55db
Pass rate
720 / h ~ 1500 / h
Leakage current
<0.5mA
Cooling
Sealed circulating oil cooled, 100
Work cycle
full cycle, need to be cooled
Rated voltage
AC 220V 50HZ (±10%)
Film Safety
ISO1600 Film Safety
Working temperature / humidity
-10 ° C ~ 45 ° C / 20% -95% (non-condensing)
Storage temperature / humidity
-20 ° C ~ 60 ° C / 20% -95% (non-condensing)
Typical X RAY baggage scanner​ Image processing system
1. X-ray sensor: L-shaped photodiode array detector, 16bit accuracy
2. Multi-energy color: organic matter is displayed in orange, inorganic substance is displayed in blue, mixture is displayed in green, and unclear area is displayed in black.
3. High energy / low energy: two energy switching display
4. Hazardous materials assisted detection: assisting in the detection of dangerous goods such as some typical drug explosives
5. Independent console: easy to read, can be separated from the host by a maximum distance of 2.5m, 19-inch high- resolution display
6. Magnifying glass local zoom function, edge enhancement object contour edge is more clear, easy to penetrate, full screen imaging graphics without distortion
7. Adopt network port transmission technology to improve information transmission speed



Packaging& Delivery:
1. Packaging: According to Standard Export Packing or as per customers' requirements
2. Delivery: Express/ Air/ Sea/ under the requirements of customer
3. Taxes & duties: International customers are responsible for all duties and taxes,
please contact your local authority for questions related to the amount of duties or taxes
you will be responsible for.



Our services:
1. Securina provides full operational and technical training support by experienced engineers
2. Phone technical support
