200KG Load X Ray Security Scanner 3220 * 1300 * 1650mm For Luggage

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE,FCC,ROHS,ISO
Model Number: ZAD-X10080
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden packing
Delivery Time: 3-5 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 500 pcs per month
Contact Now
Detail Information
Dimensions: 3220*1300*1650mm Tunnel Size: 1000*800mm
Conveyor Speed: 0.22m/s Load: 200KG
NW: 1080KG GW: 1290KG
Penetration: >42mm Steel Plate Warranty: 2 Years

Product Description

Digital Subway Station X-Ray Machine For Luggage , Parcel Scanner Machine


  • X-ray baggage scanner
  • Typical Steel penetration 34mm
  • Designed to thwart the cleverest attempts at hiding weapons, drugs, stolen goods and other contraband, this is ideal for screening everything from over size packages to oddly shaped items and palletized loads.
  • Tunnel Size:1000(Width) *800(Height)mm
  • Dimensions: 2480mm(Length) *1480(Width)* 1880mm(Height) mm
  • Approximate Gross weight: 1000kgs
  • Excellent system for airport, train station, bus station as well as security-sensitive corporate environments
  • X-ray Inspection System
  • General Specification
  • Tunnel Size------------------1000(W)*800(H) mm
  • Conveyor Speed------------0.22m/s
  • Conveyor Max Load-------200kg
  • Dose per Inspection---------< 1.7μGy/h
  • Resolution--------------------< 0.101mm Copper Wire
  • Spatial resolution------------Level: dia1.3mm, Vertical: dia1.0mm
  • Penetrate resolution-------Dia 0.511mm
  • Penetration-------------------34mm Steel
  • Film Safety-------------------Guarantee ISO1600 Film
  • X-ray Leakage---------------<0.1 μGy/h (at a distance of 5cm From external housing)
  • X-ray Generator
  • Generate direct----------------- Downward
  • Generate angle-----------------80 degree
  • Anode Voltage-----------------100~160Kv
  • Anode power--------------------0.4 to 1.2mA
  • Cooling / Duty Cycle---------Oil Cooling /100%
  • Image System
  • X-ray Sensor-----------------L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
  • Monitor-----------------------High Resolution Color, LCD Accord, 17 inch
  • Image Processing------------Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
  • Image Grey Level-----------4096
  • Image Max Resolution------1024 * 1280 pixel
  • Image Processing------------24bit for processing real time
  • Image storage----------------Storage 60000 pictures in real time
  • Zones & Zoom---------------1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

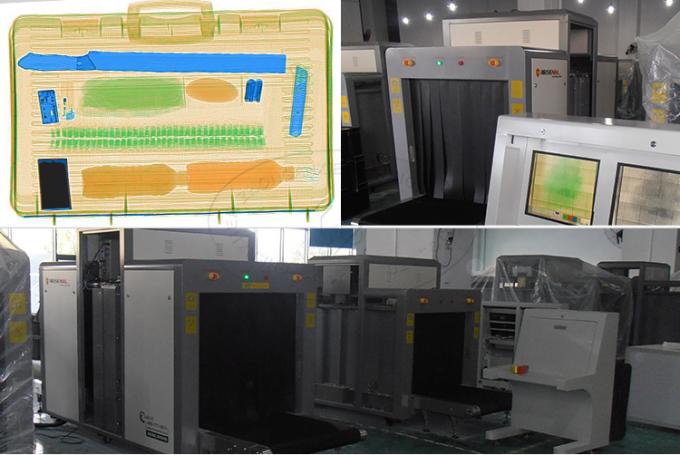

  • Multi-energetic distinguish objects------------organic objects in orange, inorganic objects in blue, mixture in green
  • High-energy/low energy--------------------------switch from high energy to low energy
  • Assist to detect drug and explosive powder
  • Installation Data
  • Operation temperature/Humidity---------0℃-45℃/20%-95%(non-condensing)
  • Storage Temperature/Humidity--------- -20℃-60℃/20%-95%(non-condensing)
  • Operation Power----------------------------220VAC(±10%)50±3Hz
  • Power Consumption------------------------1.0 KW (max)
  • Noise: <58db



200KG Load X Ray Security Scanner 3220 * 1300 * 1650mm For Luggage




This is a X-ray security product for larger channel size , mainly for large stations, railway stations and other places of security checks, larger parcels ,baggages ,luggage trunk can be detected, so it is widely used in the detection of bulky items.
