Intelligent Conveyor Belt Metal Detector Touch Screen Checking Needles In Food / Toy / Cloth

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE,FCC,ROHS, ISO
Model Number: ND-503
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 3-5 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 600 pcs per month
Contact Now
Product Description

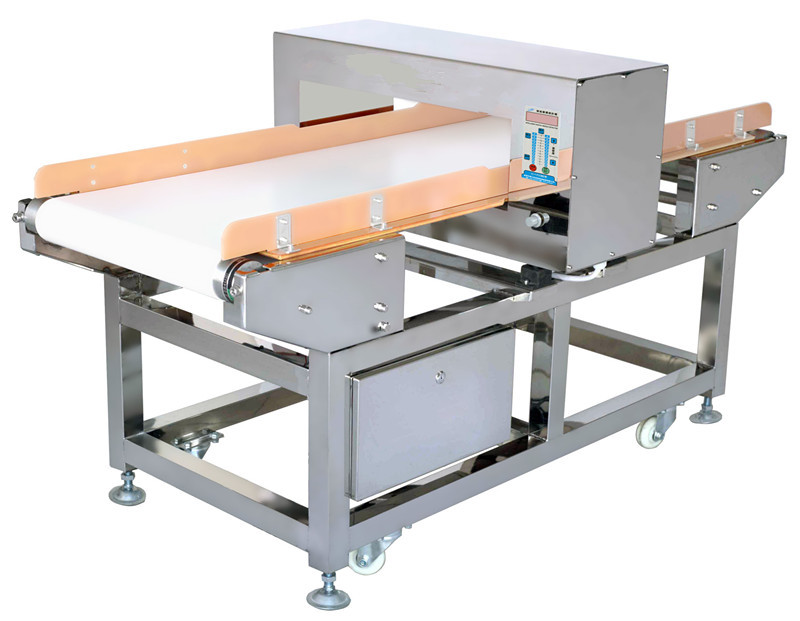

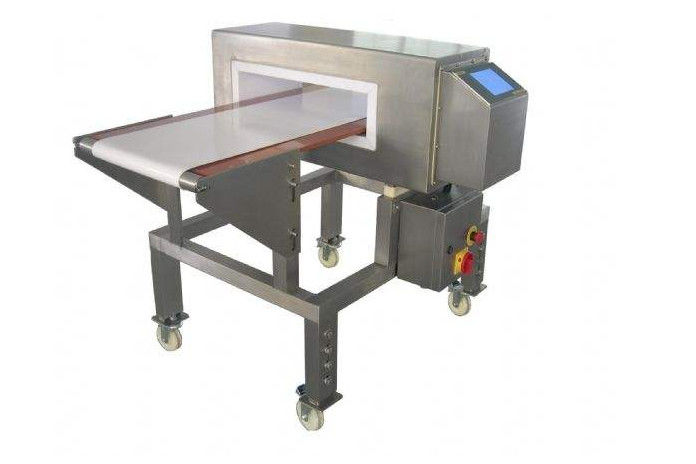

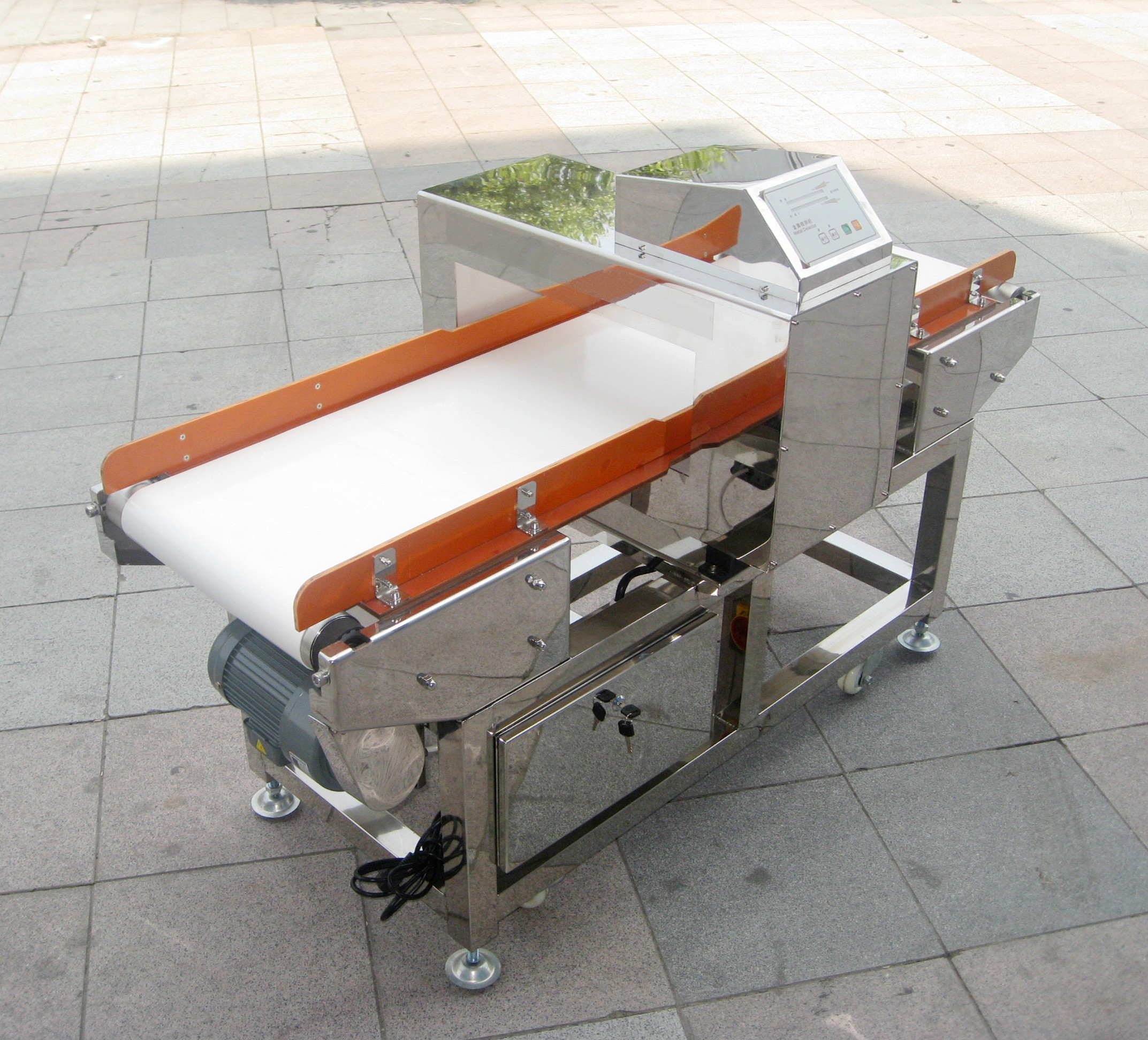

Touch Screen Intelligent Food Metal Detector For Checking Needles In Food / Toy / Cloth

Detailed Product Description
Technology: DSP Detecting Width: 38cm
Detecting Height: 10cm Sensitivity: 10 Level
Belt Speed: 25m/min Power: AC220V
Size: 1500*800*880mm Gross Weight: 200KG




Touch Screen Intelligent Food Metal Detector For Checking Needles In Food/Toy/Cloth



We are offering Food Metal Detector.
Designed For Control Of Packaged & Unpackaged Goods.
Detection Theory : Balance Coil and Electromagnetic Induction.
According to HACCP& FDA Standards.
Designed to Detect : All ferrous, all non-ferrous & SS particles.







Product Description





Technical Specs:



Detecting method Magnetic Induction
Detecting area 400mm(W)×100mm-500mm(H)
Detecting ability Fe 0.8mm-3.0mm , SUS304 1.5mm-5.0mm
Detecting adjustment 10 level adjustment
Alarm Buzzer and the belt stops
Belt Speed 40m /min
Power Supply 220V, 50Hz, Single phase
Rated Output (appr)90W
Dimension 1520(L) x 780(W) x 1000(H)mm
Weight (approx.) 200kg











Feature and Application:

1.Dual-loop circuit design, it can detect ferrous and non-ferrous and other metal objects,

the sensitivity can be adjusted separately, with memory function can be stored 10 kinds of

test material.

2.Detector with audible and visual alarm, and automatically exclude, stop, rewind functions,

user-friendly menu, easy to operate touch screen. Machine made of stainless steel,anti-corrosion, no rust, easy to clean up.

3.Conveyor and pallet assembly used in the U.S. "FDA" standards of white non-toxic materials.

4.Detection accuracy over the corresponding provisions of HACCP system Detect indicators.

5.Can use with production line.

6.It is mainly used for detecting the metal chips inside the nuts,rice,tea and wood processing industry etc.



Touch Screen Intelligent Food Metal Detector For Checking Needles In Food / Toy / Cloth

Touch Screen Intelligent Food Metal Detector For Checking Needles In Food / Toy / Cloth

Touch Screen Intelligent Food Metal Detector For Checking Needles In Food / Toy / Cloth
