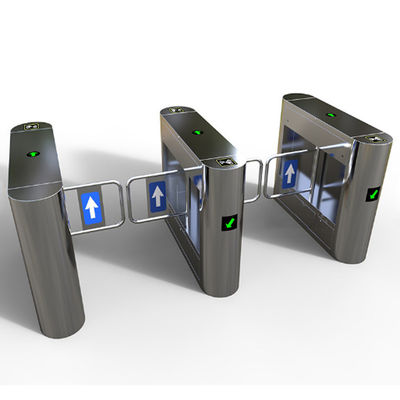

Entrance Swing Security Turnstile Gate Access Control System 600mm Passage Width

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE,FCC,ROHS,ISO9000
Model Number: SEST605
Minimum Order Quantity: 1 pic
Price: $0-1/pic
Packaging Details: Wooden Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per day
Contact Now
Detail Information
Sensitivity: High Sensitivity Charger Voltage: 9V For AC Or 10V For DC
Working Hours: 40 Hours Continuously Application: Electronic,Security,Quality Inspection
Model Number: SEST605 Customize: Support
Features-1: Used IC/ID Card, Bar Code Or Magnetic Cards Features-2: A Direction Indicator
Features-3: Showed That Pedestrian Access To Current Satus Of Features-4: Display Have Been In Used For Statistics And Numbers.

Product Description

Features:

  • Used IC/ID Card, bar code or magnetic cards as automatic indentification system and achieve access, attendance fees or function.
  • A direction indicator, showed that pedestrian access to current satus of, and guide pedestrians correct and smooth passage.
  • Display have been in used for statistics and numbers.
  • A combination of infrared sensors and police anti-illegal entry into pedestrian acces, the protection of pedestians smooth and prevention of the channel following.

Communication:

Dry contat relay with 12V OR 24V pulse.

RS485 OR tcp/ip communication with computer.



Technical Parameter:

Model Number ST605
Passage width ≤600mm
Throughput rate 35p/m
Power supply AC100-240V
Operational voltage DC24V
Max power consumption 35W
Frequency 50-60HZ
prectection level 44IP
Working temperature -25 to +70degree
Dimension excluding bars 1200X185X980mm
Net weight including bars 45kg
Optional devices 1.Fingerprint reader 2.Face recognition 3.Card collector
  4.Card reader 5.2D scanner 6.Palmprint reade
