304 Stainless Steel Walk Through Temperature Scanner Thermal Sensor With Disinfectant Cartridge

Basic Information
Place of Origin: CHINA
Brand Name: SECUERA or OEM
Certification: CE.FCC.ROHS,ISO9999
Model Number: SE-BS600
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: International Standard Packing
Delivery Time: 3 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 2000 SET/Month
Contact Now
Detail Information
With Hand Sanitizer: Yes Sensitivity: 0-99 Adjustable
Display Ways: Single-line Of LCD Display Alarm Way: Audio Alert,and LED Lacation Lamp Work At Same Time
Body Temperature Scanner: Infrared Thermal Scan Language Support: Customizable
Application: Airport.station.church Security,school,factory And So On Feathers-1: Precise Positioning: Average Distribution Of Six Independent Detection Regions To Detect The Targets
Feathers-2: This Type Of Walk Through Metal Detector With The Function Of Waterproof,shockproof High Light: <h2 style='display: inline-block;font-weight: bold;font-size: 14px;'>walk through thermometer</h2>,<h2 style='display: inline-block;font-weight: bold;font-size: 14px;'>walk through body temperature scanner</h2>

Product Description

304 stainless steel thermal sensor measuring with disinfectant cartridge body temperature scanner with hand sanitizer



Temperature measuring door post disinfection machine uses high-precision infrared temperature sensor, the sensing distance is 0-15cm,With high precision and high resolution, immune to the environment and sunlight, small interference, measurement error ± 0.1 at room temperature.

The initial temperature setting is 37.3 ℃ (adjustable). When the detection door is working, it will display an alarm when the detected actual body temperature exceeds 37.3 ℃. After the pedestrian measures the temperature, they can reach into the sterilizer and drop the disposable disinfectant solution automatically after sensing, so as to achieve the disinfection effect and prevent the virus in their hands from being constantly transmitted



Technical parameters

Working temperature -20 ℃ ~ 45 ℃
Temperature measurement range -20 ℃ ~ 100 ℃
Temperature measurement error ± 0.1 ℃
Pass rate 1.5 seconds per person (average data)
Working voltage 3.3 ~ 5V, working current: 5mA
Working power AC110-220V, 50 / 60HZ
Disinfection solution 1L as standard, 1000 persons / time
Power < 20W
Net weight 30KG
Dimensions 1850mm (height) x 150mm (width) x 330mm (depth)
Material 304 stainless steel
Waterproof rating IP55

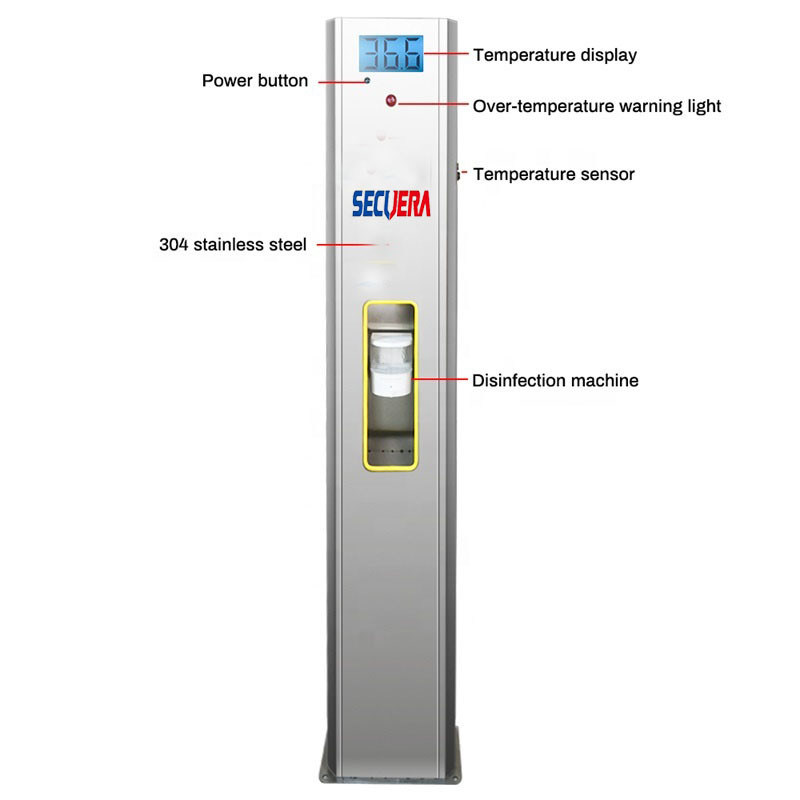

304 Stainless Steel Walk Through Temperature Scanner Thermal Sensor With Disinfectant Cartridge 0

304 Stainless Steel Walk Through Temperature Scanner Thermal Sensor With Disinfectant Cartridge 1
