Human Alarm Lamp Security Metal Detector , Full Body Metal Detectors For Museum / School

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE,FCC,ROHS,ISO
Model Number: SE-3300
Minimum Order Quantity: 1
Price: USD 758-818 set
Packaging Details: carton box according customer needs
Delivery Time: 3 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 600 sets per month
Contact Now
Detail Information
Detecting Zones: 33 Zones Wo Environment: -20℃- +65℃
Alarm Style: Light And Sound Detecting Style: Walk Through
Power Supply: 220V/AC Standard: GB15210-2003
Interference: Anti-interference Sensitivity: 0 To 255

Product Description

Human Alarm lamp Digital Metal Detector door , Body Scanner detector for Museum / School





Features :

  • Superior target detection with unmatched discrimination of harmless items such as coins, jewelry, keys, cigarette packs, etc.
  • The ultimate in safety, throughput and reliability with preset programs to cover the most complete range of security applications including the new Enhanced Metal Detector (EMD) required for all airport installations.

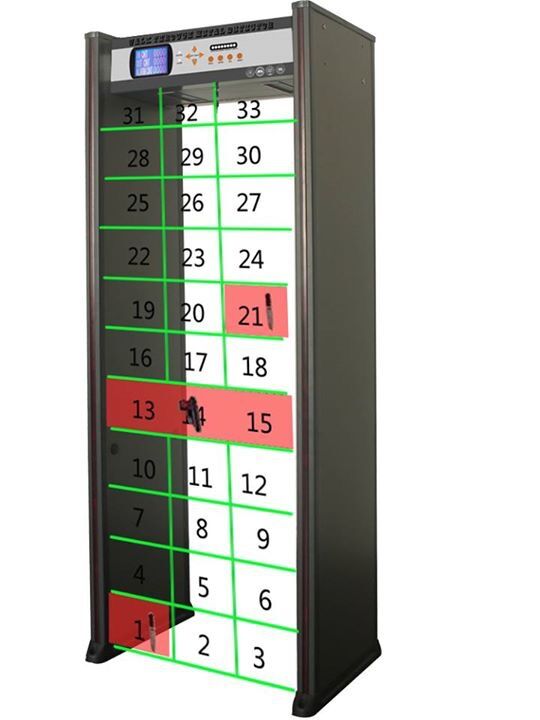

  • Multi-dimensional coil design (33 distinct pinpoint zones) provides superior detection and location of guns, knives and other flat and rod-shaped weapons regardless of orientation.
  • Circuitry with advanced Digital Signal Processor (DSP) technology locates even small, hard-to-find, floor level weapons.
  • Individual zone boost adjustments allow for customization of detection characteristics and/or compensation for metallic environmental challenges.
  • Durable, IP 65 weather-proof construction.
  • Can be connected to the PC for the communication .
  • With REMOTE Control
  • Optional interface for the CCTV, Monitor



Specifications:



  • Operating Temperatures
    -4°F (-20°C) to + 158°F (70°C); Humidity: To 95% non-condensing
  • Power
    Fully automatic 220 to 240 VAC, 50 Hertz, 15 watts; no rewiring, switching or adjustments required. Power supply meets UL, CE,FCC standards.
  • Weatherproofing / Foreign Object Protection Standards
  • Tamper-Proof
    All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.
  • Construction
    Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum.
  • Control Outputs
    Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
  • Traffic Counter
    Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage.
  • Synchronization
    Dual channels and DSP circuitry allow several ZAD-A33's to operate simultaneously in close proximity to one another.
  • Interference Suppression
    Special Security King DSP built-in circuitry eliminates effects from x-ray monitors and other potential electrical interference sources.
  • Alarms
    Audible tone and volume adjustable. Bright LED visual alarm.
  • Target Pinpointing Lights
    33 distinct zones are displayed with 2 independent columns of LED's located on exit side of ZAD-A33.
  • Pacing Lights
    International symbols
  • Warranty
    Limited 24 months





Technical Parameters
Power Supply 220V/AC
Power <15W
External Dimension 2200mm(H)*820mm(W)*550mm(D)
Passageway Dimension 2000mm(H)*700mm(W)*550mm(D)
Work environment -20°C- +70°C
Standard GB15210-2003<WALK THROUGH METAL DETECTOR>



Standard configuration
Main Case ONE
Left Probe ONE
Right Probe ONE
Power Line ONE
Screws Eight
Instruction ONE (Including one Certificate of Quality & Guarantee Repair List)



Packing
Main Case 0.755m*0.485m*0.255m (Carton)
Probe 2.37m*0.68m*0.22m(Carton)
Total Volume 0.38CBM
G.W. 50kg (Approx.)




Application

  • Airports and Seaports
  • Government Buildings
  • Embassies
  • Police Facilities
  • Courthouses
  • Prisons and jails
  • Military Bases
  • Hospitals
  • Banks
  • Financial Institutions
  • Colleges and Schools
  • Hotels and Casinos
  • Power plants
  • Research Sites
  • Sports Stadiums
  • Public Transportation
  • Public Landmarks
  • Factories and Warehouses
  • Broadcast Studios
  • Museums
  • Night Clubs



Examining Standard

Electrical Equipments standardized by EN60950.

Radiation standardized by EN50081-1.

Anti-inference standardized by EB50082.
