Digital Archway Walk Through Metal Detectors With 18 Detection Zones Convert Function

China Digital Archway Walk Through Metal Detectors With 18 Detection Zones Convert Function supplier

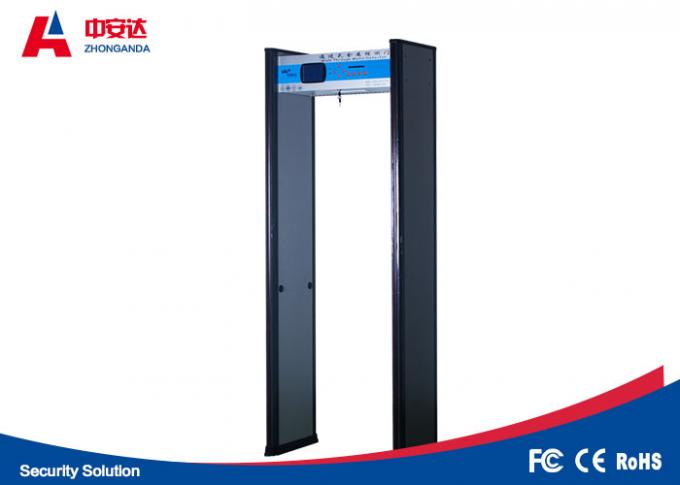

Large Image :  Digital Archway Walk Through Metal Detectors With 18 Detection Zones Convert Function

Product Details:

Place of Origin: China
Brand Name: SECUSTAR
Certification: CE,FCC,ROHS,ISO
Model Number: ZAD-A18

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 5 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 600pcs per month
Contact Now
Detailed Product Description
Each Sensitivity: 0-255 Level Working Frequency: 50-60HZ
Grosee Weight: 50KG Detection Zones: 18 Zones(8/18/24/33/45 Is Optional)
Optional: Remote Control Alarm: Sound And Light
Power Supply: 220V/AC Warranty: 2 Years

Archway Walk Through Metal Detectors with18 Detection Zones Convert Fouction





Features

  • Superior target detection with unmatched discrimination of harmless items such as coins, jewelry, keys, cigarette packs, etc.
  • The ultimate in safety, throughput and reliability with preset programs to cover the most complete range of security applications including the new Enhanced Metal Detector (EMD) required for all airport installations.
  • Multi-dimensional coil design (18 distinct pinpoint zones) provides superior detection and location of guns, knives and other flat and rod-shaped weapons regardless of orientation.
  • Circuitry with advanced Digital Signal Processor (DSP) technology locates even small, hard-to-find, floor level weapons.
  • Individual zone boost adjustments allow for customization of detection characteristics and/or compensation for metallic environmental challenges.
  • Durable, IP 55 weather-proof construction.
  • Can be connected to the PC for the comunication .
  • With REMOTE Control
  • Have the interface for the CCTV, Monitor
  •

Specifications:

  • Operating Temperatures
    -4°F (-20°C) to + 158°F (70°C); Humidity: To 95% non-condensing
  • Power
    Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 5 watts; no rewiring, switching or adjustments required. Power supply meets UL, CE,FCC standards.
  • Weatherproofing / Foreign Object Protection Standards
  • Tamper-Proof
    All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.
  • Construction
    Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum.
  • Control Outputs
    Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
  • Traffic Counter
    Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage.
  • Synchronization
    Dual channels and DSP circuitry allow several ZAD-A18's to operate simultaneously in close proximity to one another.
  • Interference Suppression
    Special Security King DSP built-in circuitry eliminates effects from x-ray monitors and other potential electrical interference sources.
  • Alarms
    Audible tone and volume adjustable. Bright LED visual alarm.
  • Target Pinpointing Lights
    18 distinct zones are displayed with 2 independent columns of LED's located on exit side of ZAD-A18.
  • Pacing Lights
    International symbols
  • Warranty
    Limited 24 months, parts and labor



Technical Parameters
Power Supply 220V/AC 110V/AC
Power <30V
External Dimension 2200mm(H)*820mm(W)*550mm(D)
Passageway Dimension 2000mm(H)*700mm(W)*550mm(D)
Work environment -20°C- +45°C
Standard GB15210-2003<WALK THROUGH METAL DETECTOR>



Standard configuration
Main Case ONE
Left Probe ONE
Right Probe ONE
Power Line ONE
Screws Eight
Instruction ONE (Including one Certificate of Quality & Guarantee Repair List)



Packing
Main Case 0.755m*0.485m*0.255m (Carton)
Probe 2.27m*0.62m*0.19m(Carton)
Total Volume 0.361CBM
G.W. 50kg (Approx.)


Application



  • Airports and Seaports
  • Government Buildings
  • Embassies
  • Police Facilities
  • Courthouses
  • Prisons and jails
  • Military Bases
  • Hospitals
  • Banks
  • Financial Institutions
  • Colleges and Schools
  • Hotels and Casinos
  • Power plants
  • Research Sites
  • Sports Stadiums
  • Public Transportation
  • Public Landmarks
  • Factories and Warehouses
  • Broadcast Studios
  • Museums
  • Night Clubs



Examining Standard

Electrical Equipments standardized by EN60950.

Radiation standardized by EN50081-1.

Anti-inference standardized by EB50082.

Execute the standard of National Standard of Metal Detector
