43 Mm Steel Penetrate Security Baggage Scanner For Subway / Metro / Railway

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE,FCC,ROHS,ISO
Model Number: ZAD-X6550
Minimum Order Quantity: 1 SET
Price: negotiable
Packaging Details: wooden packing
Delivery Time: 1-5 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 800 set per month
Contact Now
Detail Information
Dose Per Inspection: <1.4uGy/h Resolution: <0.0787mmMetal Wire
Conveyor Speed: 0.22m/s Conveyor Max Load: 170kg
Anode Voltage: 100~160Kv Penetration: 34mm Steel
Anode Power: 0.4 To 1.2mA Warranty: 12 MONTHS

Product Description

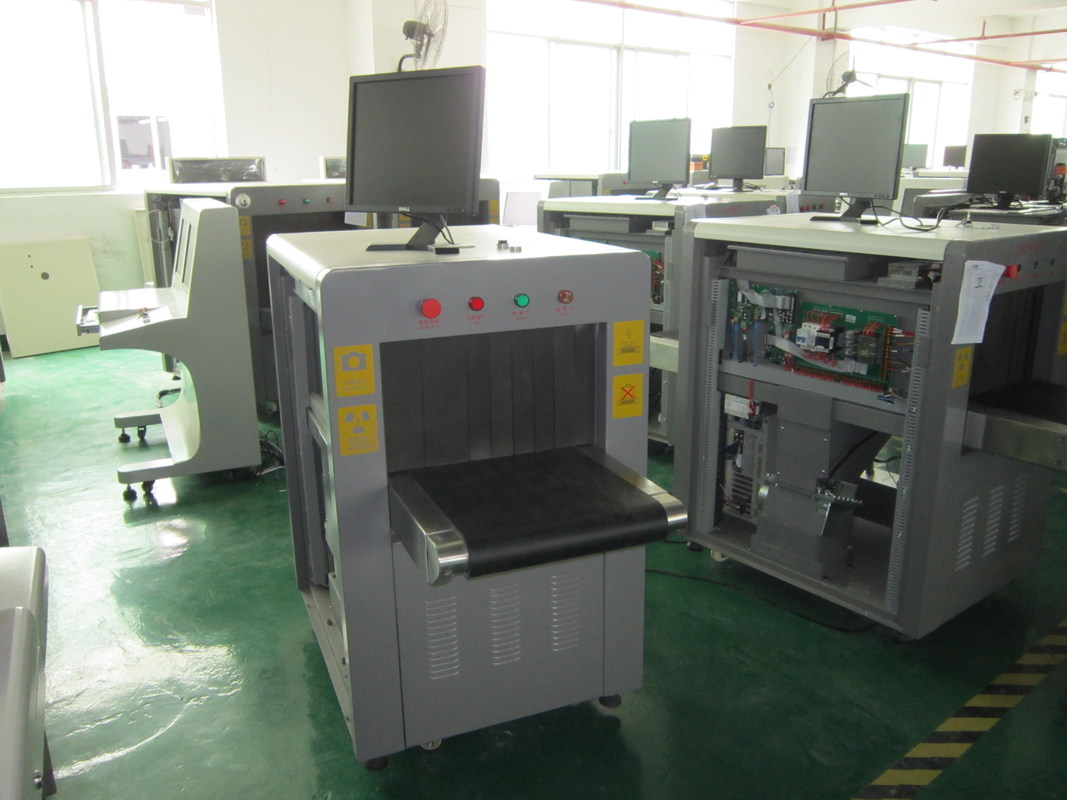

43 mm Steel Penetrate X Ray Baggage Scanner Machine In Subway Metro Railway

43 mm Steel Penetrate X Ray Baggage Scanner Machine In Subway Metro Railway
General Specification

  • Tunnel Size: 650(W)*500(H)mm
  • Conveyor Speed: 0.22m/s
  • Conveyor Max Load: 170kg
  • Dose per Inspection: <1.4uGy/h
  • Resolution: <0.0787mmMetal Wire
  • Spatial resolution Level:dia1.0mm , Vertical:dia1.0mm
  • Penetrate resolution:Dia 0.254mm
  • Penetration: 43mm Steel
  • Film Safety: Guarantee ISO1600 Film
  • X-ray Leakage: <0.05 uGy/h (at a distance of 5cm From external housing)


X-ray Generator

  • Generate direct: Upward
  • Generate angle: 80 degree
  • Anode Voltage: 100~160Kv
  • Anode power: 0.4 to 1.2mA
  • Cooling / Duty Cycle: Oil Cooling /100%


Image System


X-ray Sensor:L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
Monitor:High Resolution Color, LCD Accord, 17 inch
Detector:2
Color display:full color
Image Processing:Edge enhancement, image strengthening,

image lightening,reducing darkening, image returning, image retrieval

Image Grey Level:4096
Image Max Resolution:1024 * 1280 pixel
Image Processing:24bit for processing real time
Image storage:Storage 60000 pictures in real time
Zones & Zoom:

1-9 Image regions, 2,4,8,16 Times Enlarge,
Whole screen continuous observation

Multi-energetic
distinguish objects:

organic objects in orange,inorganic objects in blue, mixture in green
High-energy/low energy:switch from high energy to low energy



Installation Data

  • Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
  • Storage Temperature/Humidity: -26℃~60℃/20%-95%(non-condensing)
  • Operation Power:220AVC/(±10)50Hz±3Hz
  • Power Consumption:1.0KW(Max)
  • Noise: <65 dB



Feature and Application:

X ray penetrate inspection, the object can be found within the metal structure, can display the naked eye can not see where the liquid is also very obvious object display.Used in the factory testing of security
products and business units such as: electronic factories, shoe factories, toy factories, courts, railway
stations, and event bag, line security management package.


43 mm Steel Penetrate X Ray Baggage Scanner Machine In Subway Metro Railway43 mm Steel Penetrate X Ray Baggage Scanner Machine In Subway Metro Railway
