Adjustable Sensitivity Walk Through Metal Detector With PVC Synthetic Material

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE,FCC,ROHS,ISO
Model Number: SE-608
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: carton box
Delivery Time: 3 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 800pcs per month
Contact Now
Detail Information
Each Sensitivity: 0-99 Level Working Frequency: 50-60HZ
Security Level: 1-100 Computer Network: Support (optional)
Grosee Weight: 52KG Detection Zones: 6 Zones(8/18/24/33/45 Is Optional)
Optional: Remote Control Alarm: Sound And Light
Feature-1: Power Safety: The Power Is On The Top Of The Main Unit, Higher Water Resistance Feature-2: Configuration Waterproof Gloves: Not Only Can Fix The Door, But Also Water Proof

Product Description

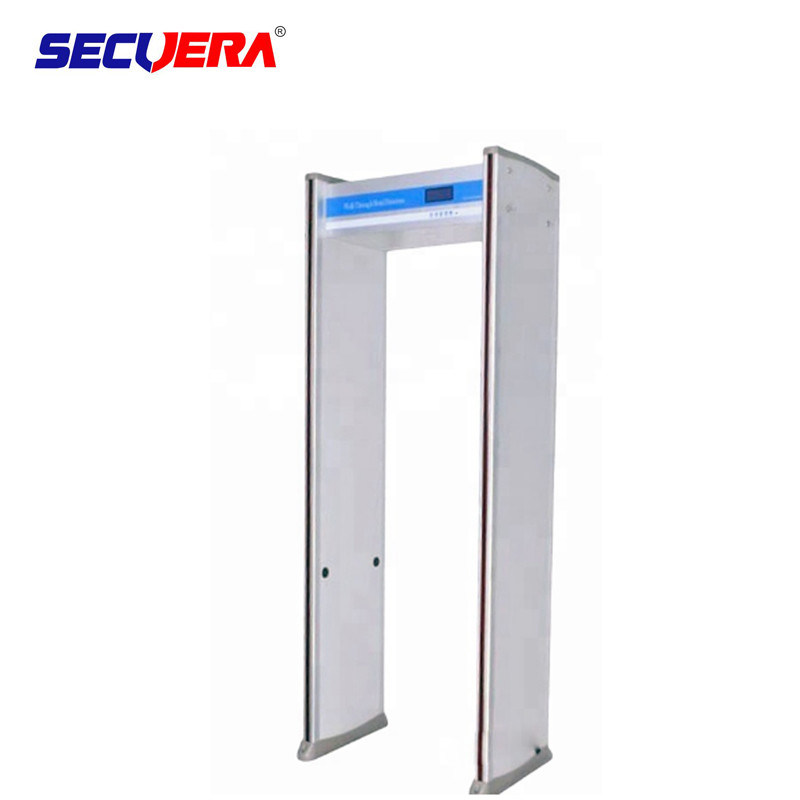

Adjustable sensitivity Walk Through Metal Detector Security Gate PVC Synthetic Material





Feature:



The sensitivity can be adjusted from 0 to 99

In front of the door with Alarm-LED ,6 zones , sound & light alarm.

With Location signal display light

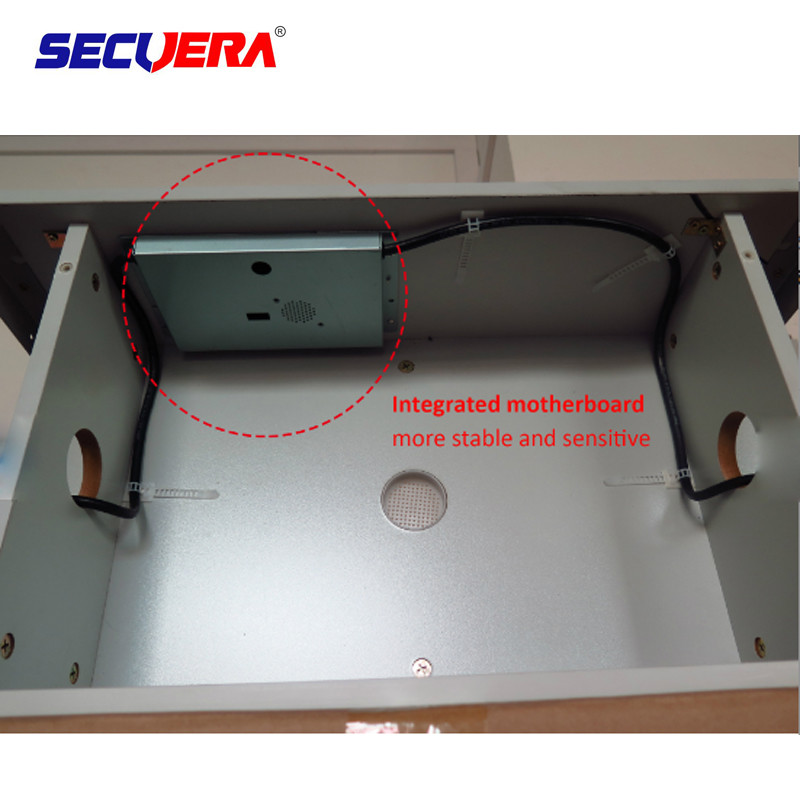

The passing number and the alarm times display on the main board.



  • Six detecting zones which overlapped each other are as tall as the examinee, combine with alarm-LED on every zone. Show the position of target metal directly.
  • Four emitters match with receivers opposite, eliminate detecting blind spots.
  • Sensitivities can be adjusted: Each area’s sensitivity can be adjusted from 0 to 99. You can select the right sensitivity you want. For example you can change the sensitivity to avoid inferences such as the coins, keys, buckle, etc.
  • The function of statistics: The number of passed examinees and the alarm times can be count.
  • Parallel operation: The gate can not only work alone, but also work together with the same model (when parallel operate, the distance between each unit must more than 40 cm), so that it can meet the demand of big visitor flow rate.
  • No harm to people: The gate is harmless to people with cardiac pacemakers, pregnant women, tapes, videotapes.
  • Installed conveniently: Integrated design, you can assemble or disassemble it in 20 minutes with the operation instruction.
  • Protected by password: Only the authorized person can operate it.
  • Location signal display light: Display the responses of each zone apart (independent of alarm lights). Adjust the sensitivity of each zone according to the responses, and get the best sensitivities.



Specification:



External Dimension

2200mm(H)*820mm(W)*550mm(D)

Passageway Dimension

2000mm(H)*700mm(W)*550mm(D)

Main Case Packing

755*485*255

Probe Packing

2270*620*190
Net weight of main box/detectiondoor 48KG
Gross weight of main box/detection door 52KG

Volume in total

0.361 m3

Detection zones 6 zones
Working voltage AC90V~240V50/60Hz
Power consumption 20W
Each zone sensitivity 0-99 Level
Relative Humidity 0 – 95 %



Optional Accessories:



Slipping groove: Let the personal belongings which may be interference (such as keys, watches, cell, etc) slip through.

Remote Control: Control the gate within 10 meters, when paralleled the distance should be short.

Storage Battery: Maintain the gate working for about 4 hours after charged.



Application:



1. Places which should be security examined. Such as airport, customs, harbor, station, etc.

2. Places where prohibited metal items should be examined. Such as court, police station, jail, lockup, etc.

3. Public places entrances Such as important place, exhibition, business rally, celebration meeting, stadium, etc.

4. Industries where the valuable metal articles should be avoided missing. Such as hardware, electronics, jewelry, coinage line , etc.

5. Entertainment places where dangerous items should be forbidden. Such as nightclub, theater, ballroom, bar, KTV, etc.

6. Places where the dangerous items should not be taken with, such as the Bank , Government , Post office, school , private house ,etc.
