|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Packaging Details:||carton box|
|Delivery Time:||3 days after payment|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal|
|Supply Ability:||600pcs per month|
|Each Sensitivity:||0-255 Level||Working Frequency:||50-60HZ|
|Grosee Weight:||50KG||Detection Zones:||33 Zones(8/18/24/33/45 Is Optional)|
|Optional:||Remote Control||Alarm:||Sound And Light|
|Power Supply:||220V/AC||Warranty:||2 Years|

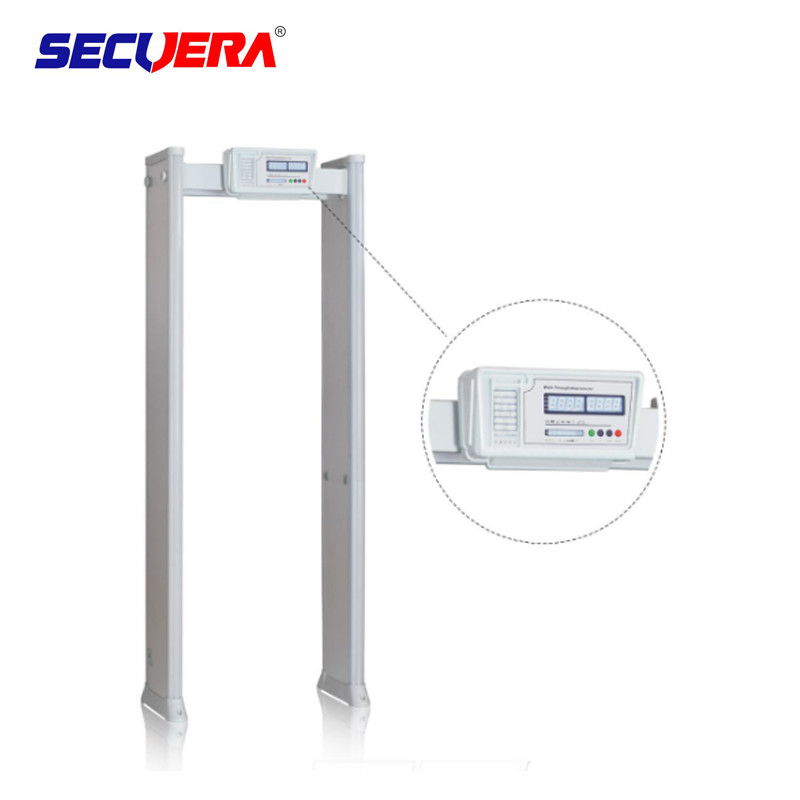

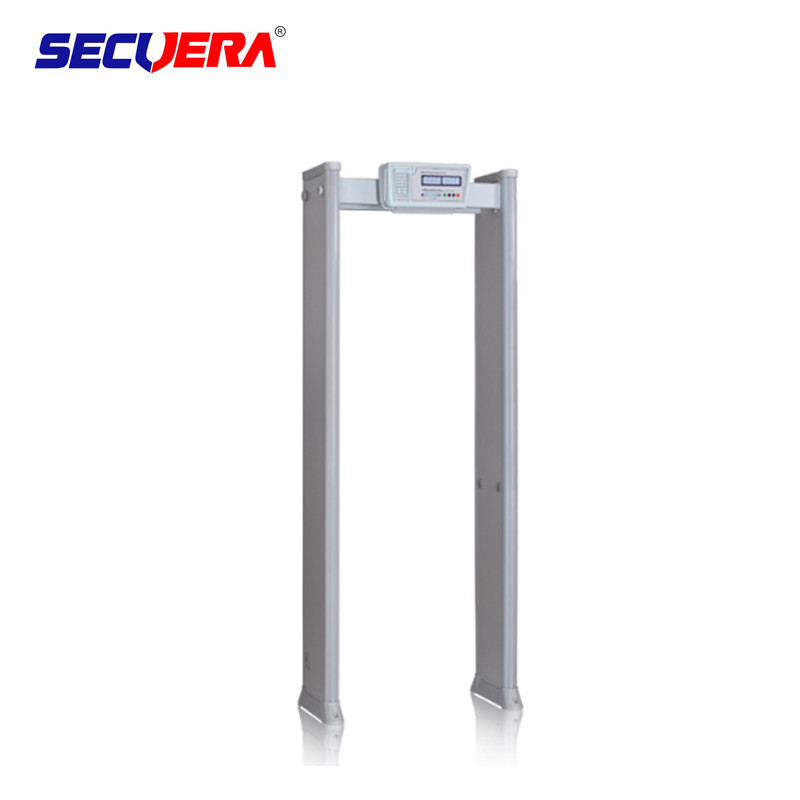

33 ZONES Digital Walk Through Bank Security Gates Metal Detector
In front of the door with Led, 33 detecting zones, sound & light alarm,Anti-inferece.
With big LCD Screem, English operation system,Waterproof and firproof
The ZAD-A33 s sensetivity is from 0 to 255, while A serires' sensetivity is 0 to 99.
The ZAD-A33's modular design allows for a quick and simple assembly of its four sub-assemblies using only eight screws and three internal electrical connections.
33 Distinct Pinpoint Detection Zones
The ZAD-A33 offers exclusive multiple target pinpointing with 33 distinct zones for full target coverage on the left, center and right side of the body from head to toe.

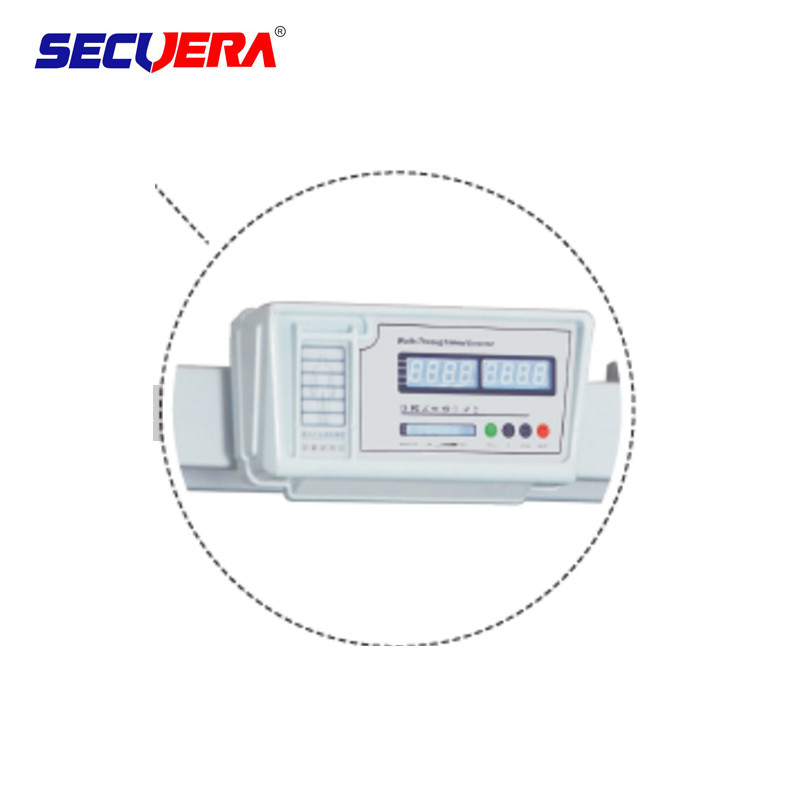

Overhead Control Unit
LCD Display, alarm lights, LED bar graphs and control touchpads plus all wiring, connections and electronics are integrated into a single lockable overhead compartment which eliminates exposure of wires and external control box.
Multi-dimensional Coil Design
The ZAD-A33's exclusive multi-dimensional coil design provides unmatched detection of potentially lethal metal items such as guns, knives and other flat and rod-shaped weapons regardless of location and orientation.
Audible and Visual Alarms
Audible alarm and Visual LED lights signal when a target has been detected.
1. Superior target detection with unmatched discrimination of harmless items such as coins, jewelry, keys, cigarette packs, etc.
2. The ultimate in safety, throughput and reliability with preset programs to cover the most complete range of security applications including the new Enhanced Metal Detector (EMD) required for all airport installations.
3. Multi-dimensional coil design (33 distinct pinpoint zones) provides superior detection and location of guns, knives and other flat and rod-shaped weapons regardless of orientation.
4. Circuitry with advanced Digital Signal Processor (DSP) technology locates even small, hard-to-find, floor level weapons.
5. Individual zone boost adjustments allow for customization of detection characteristics and/or compensation for metallic environmental challenges.
6. Durable, IP 55 weather-proof construction.
|Work environment||-20°C- +45°C|
|Standard||GB15210-2003<WALK THROUGH METAL DETECTOR>|
|Instruction||ONE (Including one Certificate of Quality & Guarantee Repair List)|
Slipping groove: Let the personal belongings which may be interference (such as keys, watches, cell, etc) slip through.
Remote Control: Control the gate within 10 meters, when paralleled the distance should be short.
Storage Battery: Maintain the gate working for about 4 hours after charged.
1. Places which should be security examined. Such as airport, customs, harbor, station, etc.
2. Places where prohibited metal items should be examined. Such as court, police station, jail, lockup, etc.
3. Public places entrances Such as important place, exhibition, business rally, celebration meeting, stadium, etc.
4. Industries where the valuable metal articles should be avoided missing. Such as hardware, electronics, jewelry, coinage line , etc.
5. Entertainment places where dangerous items should be forbidden. Such as nightclub, theater, ballroom, bar, KTV, etc.
6. Places where the dangerous items should not be taken with, such as the Bank , Government , Post office, school , private house ,etc.
