Place of Origin: | China |
---|---|
Brand Name: | SECUERA |
Certification: | CE,FCC,ROHS, ISO |
Model Number: | MD-5008 |
Minimum Order Quantity: | 1 |
Price: | negotiation |
Packaging Details: | carton box |
Delivery Time: | 3-5 days after payment |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 600 pcs per month |
High Light: | airport security body scanner,airport baggage scanner |
---|
Application: | Detect Metals Underground | Weight: | 5kg /pc |
---|---|---|---|
Power: | DC12V | Product Name: | MD-5008 Underground Gold Metal Detector |
Function: | Can Distinguish Ferrous And Non Ferrous Metals | Size: | 19*35*87cm/pc |
Siginal Frequency: | 437KHz | Warranty: | 12 MONTHS |

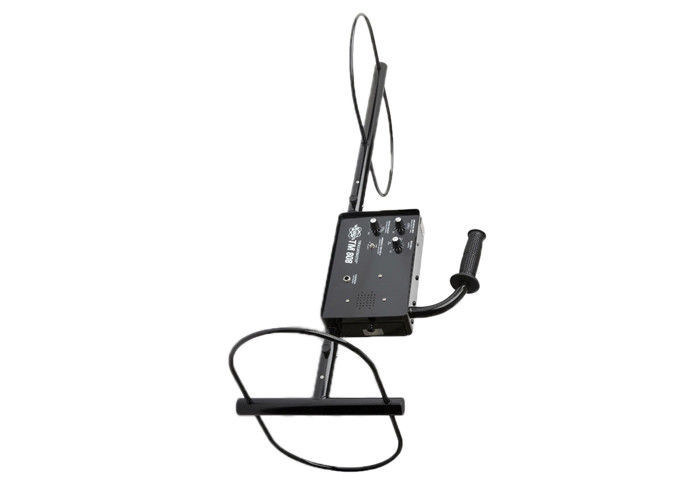

Treasure Hunting Pulse Induction Metal Detector MD5008
Long range underground china metal detector for deep earth
MD-5008(3.5M UNDERGROUND) Ground Search Metal Detectors
Function:
MD-5008 metal detectors, 3-3.5m depth of detection, adopt advanced technique and attach high quality components which have features of ground balance, good discrimination ability, wide detection range, accurate orientation, strong resolution and easy operation
Application:
The metal detectors are mainly used to detect and identify underground metals. Besides military using, they are widely used in:
(1) Security inspection, public security organs’ ransack:
(2) Scan metal foreign matter in raw, fuel and foods;
(3) Scan metal articles in mail or luggage;
(4) Detect underground pipelines, cables;
(5) Archeology, mineral exploration, find underground metal articles.
Component:
(1) Attach external battery box and bag
(2) Attach big and small search coils
Specification:
(1) Emission Frequency: 6.99KHz
(2) Signal Frequency: 437Hz
(3) Weight: 2.87KG
(4) Sensitivity: Small coil: 25~30cm (test 25US cent)
Big coil: 35~40cm (test 25US cent)
(5) Max Detection: Small coil: 1.5 meters
Big coil: 3.0~3.5 meters
This conclusion is elicited by testing a aluminium sheet (60cm*60cm*1cm) buried in dry soil.
(6) Power Supply: 8pcs 1.5V Batteries
(7) Operation Mode: Ground balance mode;Discrimination mode.
(8) Packing: 4pcs/ctn
Package:
(1) G.W./Unit: 5.3kg
(2) Size/Unit: 83*33*17cm
(3) Qty./CNT: 4pcs
(4) G.W./CNT: 21.2kg
(5) Size/CNT: 68*34*84.5cm
Product Parameters
Maximum detection depth | Small reel 1.5m / Big reel 3m |
Signal Frequency | 7KHz |
Audio frequency | 450Hz |
Working current | 12DCV "AA"(Alkalinity) 8*1.5V |
Power consumption | 0.6W |
Weight | 3.2KG |
