|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Packaging Details:||1.Main Case 0.755m*0.485m*0.255m (Carton) 2.Probe 2.27m*0.62m*0.19m(Carton) 3.Total Volume 0.361CBM 4.G.W.:50kg (Approx.)|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal|
|Supply Ability:||1000/per month|
|Product Name:||Flap Barrier Turnstile||Life:||Over 10 Years|
|Warranty:||3 Years||Language Support:||Customizable|
|Application:||Airport.station.church Security,school,factory And So On||Quality:||Stable And Good|
|Feathers-1:||Adopt Brush-less Motor,it Has Longer Lifespan.||Feathers-2:||Adopt ARM Control Technology, Merits For Stronger Function And Better Expand-ability.|
|Feathers-3:||Modular Design, The Structure Is Simpler And Easier To Maintain.||Feathers-4:||Better Buffer Effect, Greatly Prevent Collision And Human Injuries|
pedestrian barrier gate,
pedestrian turnstile gate

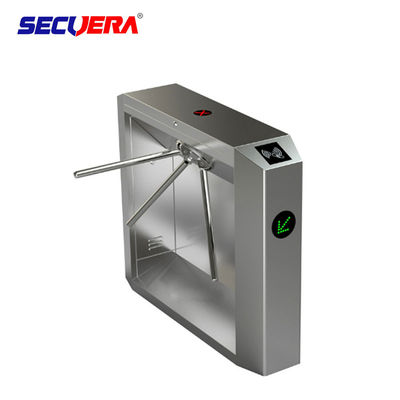

Artistic Design Tripod Turnstile for Meeting Room Turnstile Barrier Gate
Tripod Turnstile Sportlight :
1.Adopt Brush-less motor,it has longer lifespan.
2.Adopt ARM control technology, merits for stronger function and better expand-ability.
3.Modular design, the structure is simpler and easier to maintain.
4.Better buffer effect, greatly prevent collision and human injuries;
5.With timely reverse push force will fright illegible intruder.
6.Merits for smooth running,speed adjustable and low wear.
7.Higher cost effective( high end performance and affordable price)
Good Performance best Price Baffle Gate Turnstile Entrance Tripod Turnstile
Tripod Turnstile Technical Parameter :
1.Housing material: Stainless steel 304
5.Pole maximum force:80kg
6.Pole working force :3KG
7.Pole rotation: one-way and two-way
8.Working movement:12V/20W DC brushless motor
9.Working environment: Indoor and outdoor(canopy is suggested)
10.Suitable Temperature: -40℃ ~ 80℃
11.Emergency measure: Pole falling when power off
12.Gate opening time:0.2s
13.Standard input interface: Relay switch signal
Tripod Turnstile Main Function :
1.Equipped with standard card read window, can be connect with multi card-readdevice
2.Tripod turnstile with function of break down self check and alarm,easy maintenance and operation.
3.can be controlled by external button or remote control. Can set one or bi-direction passing at will
4.Auto reset function.
5.LED indicator light :green and red indicate the passing information
6.Anti-follow function,Anti buffering function,Anti-reverse,anti-pinch.
7.Alarm prompt function: Sending out alarm when has illegal intruder or crash.
8.Gate auto open when power is off to meet the fire protection requirements.
9.Memory function:fast access.accurate signal memory, continuous to receive many times the legitimate signal, after the last man detected by automatic reset.
10.The pole will Auto drop when power is off, auto raising when power is on.
11.Dynamic prompt:When receiving legitimate open-gate signal,tripod turnstile arms move forward about 15 degree,and rotate mutely with a soft touch to the reset point.
|Supply Voltage||AC220V±10V 50Hz|
|Working Temperature||-45℃ ~ 60℃|
|Relative Humidity||≤95%, No Condensation|
|Max Access Width||510mm|
|Communication Interface||Relay, RS485|
Packaging& Delivery :
1. Packaging: According to Standard Export Packing or as per customers' requirements
2. Delivery: Express/ Air/ Sea/ under the requirements of customer
3. Taxes & duties: International customers are responsible for all duties and taxes,
please contact your local authority for questions related to the amount of duties or taxes
you will be responsible for.
Our services :
1. Securina provides full operational and technical training support by experienced engineers
2. Phone technical support
Q: Are you manufacturer or trader?
A:We are manufacturer, we have own factory in Shenzhen, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.
Q. Do you sell the accessories for Products ?
A:Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.
Q.How about the packing for product?
A:Is it easy damaged during transportation? For light structure products like Gold detector. Hand held metal detector and so on we takes of strong carton box . For heavy structure products like conveyor belt needle detector. Food metal detector X ray machine .Our packing is Standard Export ploy Wooden Case. Every prepackage have a plastic bags cover .
Q. What’s your main product?
A:We professional in needle detector. Metal detector. X ray machine and other related electronic products and machines
Q.Where is your main sales market?
A:Our Gold meal detectors customer all over the world. Our hand metal detector and walk through metal detector mainly in Southeast of Asia. South of America.Middle east. East Europe and Africa Our needle and food metal detector mainly customers are from Australia. USA. All Europe and Asia
Q.How about your after-sales policy?
A:Customer first is our always principle . All of our products normal warranty is 24months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .
Q.Do you accept customer Logo and customized ?
A:we accept kinds of customized and logo of all of our products for customers
Q:How can we contact with you?
A:Whatsapp&Wechat : +86-15818573270
