AC110V Body Metal Detector With Dual High - Brightness LED Host 2000 x 700mm

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE,ISO
Model Number: ZA-1808
Minimum Order Quantity: 1
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/sets/month
Detail Information
Product Name: Door Frame Metal Detector Zones: 18 Zones
Sensitivity Level: 0-255 Each Zone Sensitivity Level: 400 (Adjustable)
Power Consumption: 12W Working Frequency: 1~50 Bands
Vertical Dimension: 2200x860x440mm Vertical Channel Size: 2000x700mm
Customizable Width: 700~1500mm Working Voltage: AC110V~240V 50/60Hz
High Light:

metal detector gate


portable metal detecto

Product Description

New Model 18 zones LED Walk Through Door Fram Metal Detector



walk through metal detector , archway metal detector , door frame metal detctor

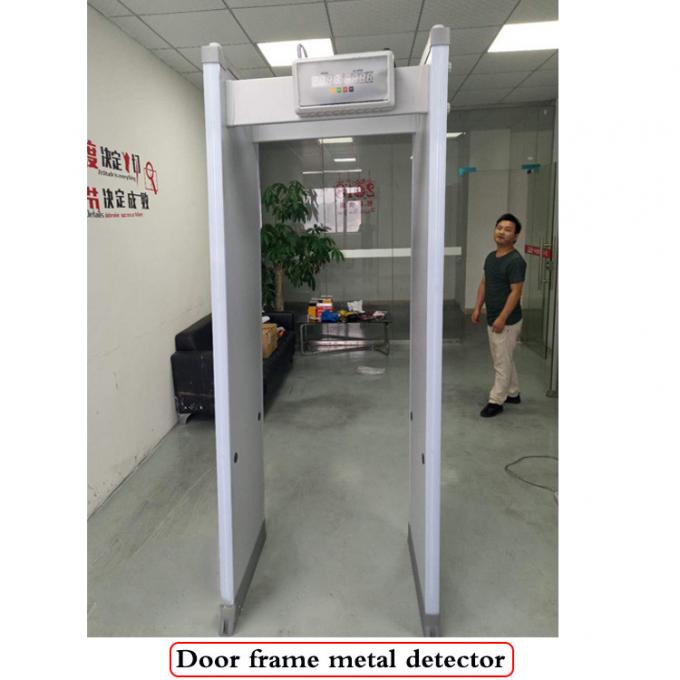

   ZA-1808 door frame metal detector gate adopts Full Aluminum Frame and Highly Integrated Dual High-Brightness LED Host to check whether there is any metal items been hided in the body, such as metals, guns, controlled knives and so on. The max sensitivity reach up to 400 level, with remote control and simple software interface, much more easier for installation and maintenance.

Advanced Features

  • 6.18.33 independent zones available to choose, Dual High-Brightness Red LED Display
  • Adjustable sensitivity of each detection zone, multi-alarm sounds to choose
  • Operating frequency can be adjusted manually or automatically
  • Detection technology: Even detection technology, no blind spot
  • Internet technology:Remote upgrade system and remote control system
  • Statistics: Record the pass and alarm numbers
  • Query function: The system has real-time information query function
  • Intelligent Standby: The system has intelligent standby operation alerts
  • Detection speed: more than 60 people pass and detect in 1 minute
  • Intelligent partion: Can change detection zones according customers’ demands
  • Can connect PC terminal that change specification of WTMD anytime,anywhere(optional)
  • Have 4 kinds infrared mode: IR ON/IR OFF/Front group IR ON/Back group IR ON
  • We integrated 72 application occasions in the program, can change all zones,sensitivity when you choose different occasion
  • No harm to human body with heart peacemaker, pregnant women, magnetic floppy and recording tapes

Technical Parameter:


 Sensitivity level  0-255
 Each zone sensitivity level  400 (Adjustable)
 Power consumption  12 W

 Working frequency

 1~50 bands
 Highest standard  Metal size ≥ 6 g
 Vertical dimension  2200x860x440mm
 Vertical channel size  2000x700mm
 Customizable width  700~1500mm
 Working voltage  AC110V~240V 50/60Hz
 Working environment temperature  -40℃~+85℃


  • Airport, port, travelling check point
  • Conference, stadium, access control, court, visiting check point
  • power plant, factory, hotel, restaurant, entertainment, power venue, KTV, temple
