LCD Display X Ray Security Scanner Airport Security Checking SE6040 12 Months Warranty

Basic Information
Place of Origin: Shenzhen China
Brand Name: SECUERA
Certification: CE. ISO
Model Number: SE6040
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Takes of ploy wooden case that suitable delivery by air or by sea High Quility Whole Screen Continuous Observation Security Examined X-ray Baggage Scanner Provided By China Supplies
Delivery Time: 5-15days, according to order amount
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100/per month
Detail Information
Product Name: X-ray Baggage Scanner Tunnel Size: 400mm(H)*600mm(W)
Maximum Leak: <0.3 μGy/H Wire Resolution: 0.0787mm Metal Line
Warranty: 12 Months Steel Penetration: 34mm
Conveyor Speed: 0.22 M/s UsageImage Storage: Storage 60000 Pictures In Real Time
System Voltage: 220 VAC (±10%) 50±3HZ Conveyor Max Load: 170kg
High Light:

x ray baggage scanner


airport baggage x ray machines

Product Description

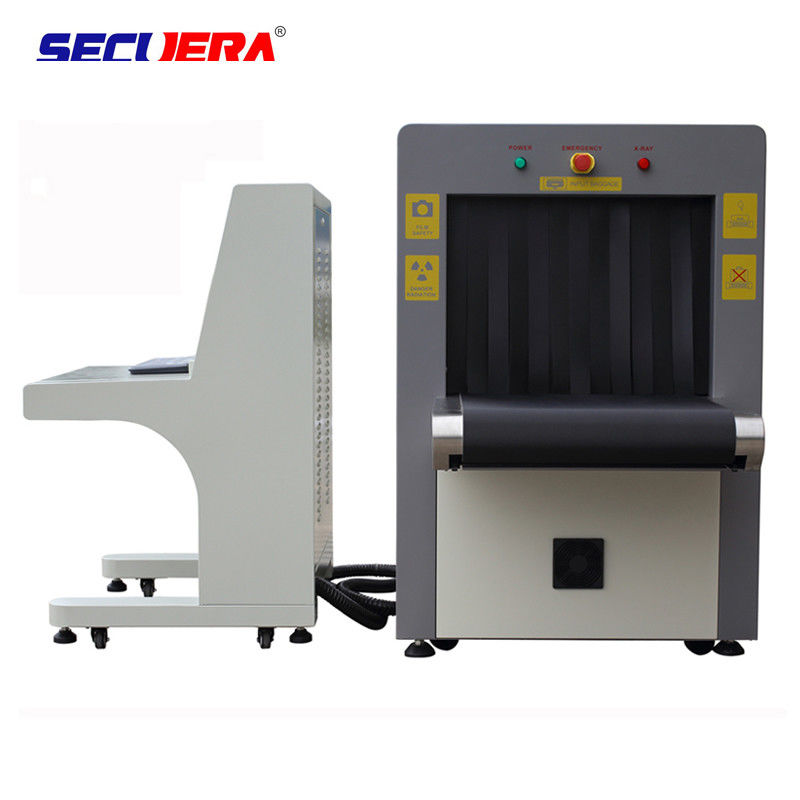

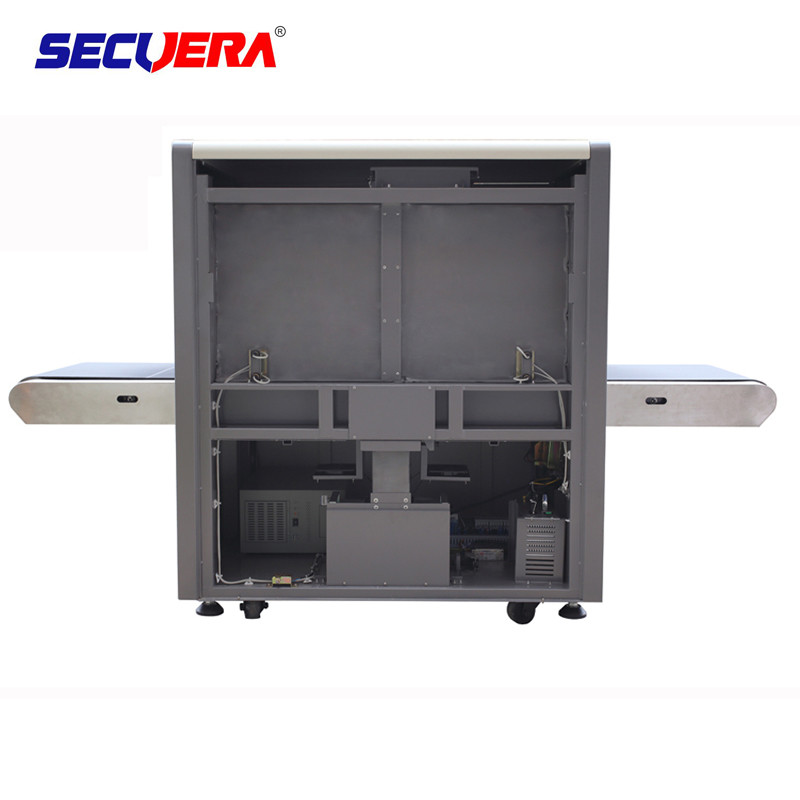

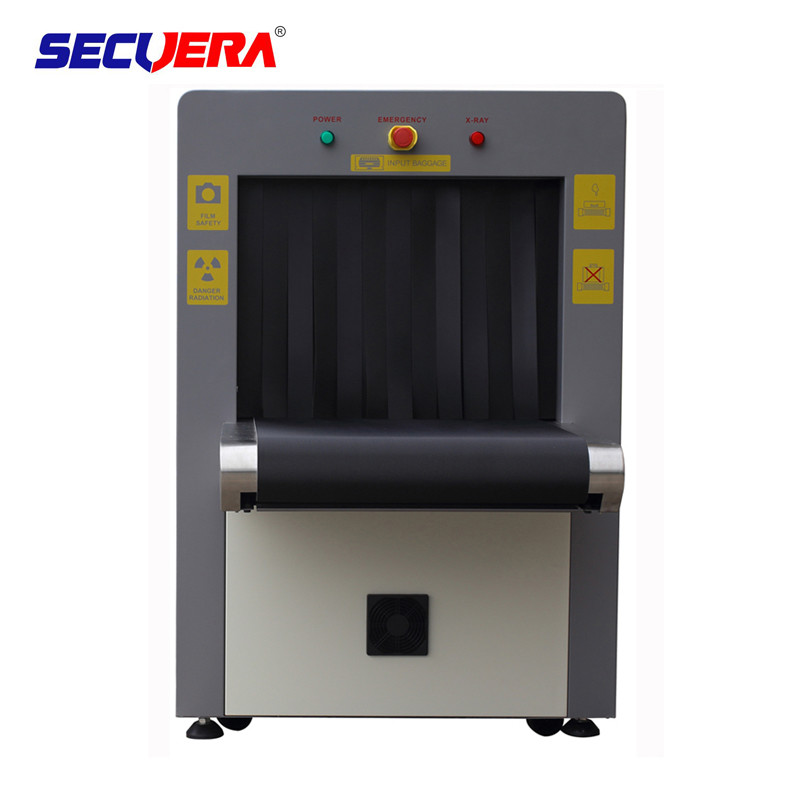

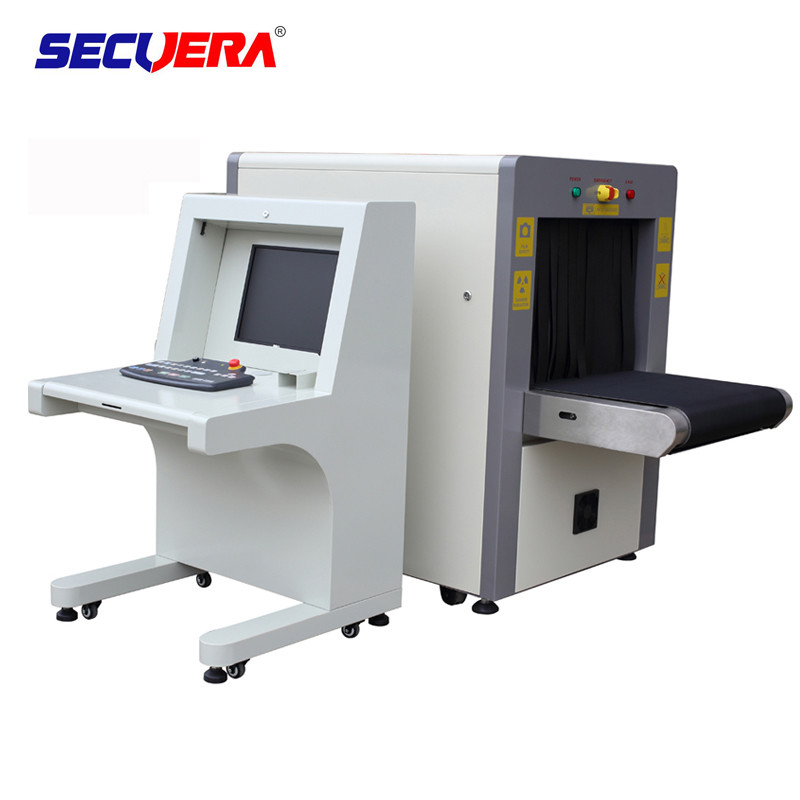

X-ray Baggage Machines Airport Security Scanner Metal Detector SE6040


Airport Security Scanner Metal Detector Technical Specification

 Tunnel Dimension 400mm(H)*600mm(W)
 Outer Dimension 1631mm(L)*774 mm(W)*1208 mm(H)
 Conveyor Speed 0.22 m/s
 Conveyor Max Load 170 KGS
 Single inspection dosage < 1.32 μGy
 Wire Resolution 0.0787 mm metal line
 Steel Penetration 10 mm
 Film Safety For ISO 1600
 Maximum leakage radiation <0.3 µGY/H


Airport Security Scanner Metal Detector X-ray Generator

 Orientation Upward
 Tube Current 0.3~0.8 MA(adjustable)
 Anode Voltage 80 KV(adjustable)
 Angle 60°
 Cooling: Sealed oil bath with forced air
 Duty Cycle Rated for 100% Duty Cycle


Airport Security Scanner Metal Detector Operating Environment

 Work Temp/Humidity 0℃~ +45℃/20%~95% non-condensing
 Storage Temp/Humidity -20℃~ +60℃/20%~95% non-condensing
 Voltage 220VAC(±10%) 50±3 Hz
 Power Loss 1.0KW(MAX)
 Noise < 55 DB


Airport Security Scanner Metal Detector Image Processing system

1 X-ray sensor: L-shaped photodiode array detector (single energy), 24bit depth

2 Display: High-resolution 19 inch color LCD display

3 Edge enhancement: Object contour edge is more distinct

4 Super image enhancement: Image detail is more distinct

5 Magnifier: Partial magnifying function

6 Brightening/dimming: Increase/Decrease brightness of image

7 Image recurrence: Display all the the previous images and process any one of them

8 Image restoration: Restore image to initial status

9 Image storage: Real-time store any image and process it in operation status

Airport Security Scanner Metal Detector Application

1. Airports;

2. Banks;

3. Commercial buildings;

4. Courthouses;

5. Embassies;

6. Government buildings;

7. Military installations;

8. Prisons;

9. Ships;

10.Security checkpoints.



LCD Display X Ray Security Scanner Airport Security Checking SE6040 12 Months Warranty 0LCD Display X Ray Security Scanner Airport Security Checking SE6040 12 Months Warranty 1

Q: Are you manufacturer or trader?
A:We are manufacturer, we have own factory in Shenzhen, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.


Q. Do you sell the accessories for Products ?
A:Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.


Q.How about the packing for product?
A:Is it easy damaged during transportation? For light structure products like Gold detector. Hand held metal detector and so on we takes of strong carton box . For heavy structure products like conveyor belt needle detector. Food metal detector X ray machine .Our packing is Standard Export ploy Wooden Case. Every prepackage have a plastic bags cover .


Q. What’s your main product?
A:We professional in needle detector. Metal detector. X ray machine and other related electronic products and machines


Q.Where is your main sales market?
A:Our Gold meal detectors customer all over the world. Our hand metal detector and walk through metal detector mainly in Southeast of Asia. South of America.Middle east. East Europe and Africa Our needle and food metal detector mainly customers are from Australia. USA. All Europe and Asia


Q.How about your after-sales policy?
A:Customer first is our always principle . All of our products normal warranty is 24months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .


Q.Do you accept customer Logo and customized ?
A:we accept kinds of customized and logo of all of our products for customers
