| Place of Origin: | China |
|---|---|
| Brand Name: | SECUERA |
| Certification: | CE,FCC,ROHS,ISO9000 |
| Model Number: | SE6040 |
| Minimum Order Quantity: | 1 pic |
| Price: | $0-1/pic |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 100 pcs per day |
| Sensitivity: | High Sensitivity | Charger Voltage: | 9V For AC Or 10V For DC |
|---|---|---|---|
| Working Hours: | 40 Hours Continuously | Application: | Electronic,Security,Quality Inspection |
| Model Number: | SE6040 | Customize: | Support |
| Features-1: | L-Shaped Photodiode Array (multi-energetic) , 12bit Deep | Features-2: | High Resolution Color |
| Features-3: | LCD Accord, 17 Inch (19 Inch Optional) | Features-4: | Edge Enhancement, Image Strengthening |
| High Light: | airport baggage x ray machines,x ray airport scanne |
||

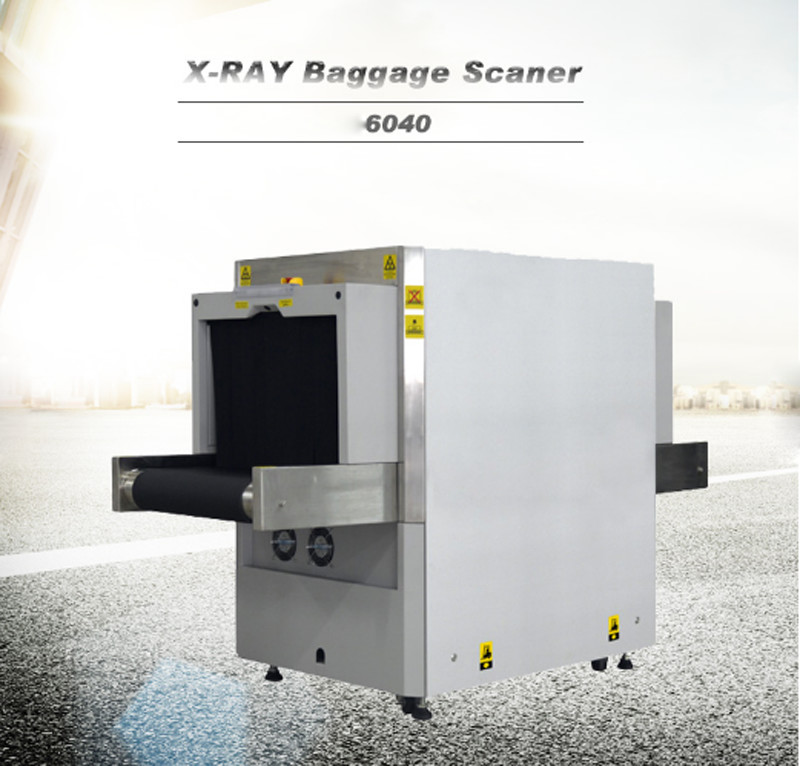

X Ray Baggage Inspection Scanner SE-6040
General Specification
| Tunnel Size | 600(W)*400(H)mm |
| Conveyor Speed | 0.22m/s |
| Conveyor Max Load | 150kg |
| Wire Resolution | 32AWG to 40AWG |
| Spatial resolution | horizontal:1.3 or 1.0mm;vertical: 1.3 or 1.0mm |
| Penetration | 30 to 40mm Steel |
| Film Safety | Guarantee ISO1600 Film |
| X-ray Leakage | <1 μSv/h (at a distance of 5cm from external housing) |
| Pass rate | 720 bags per hour |
Installation Data
| Operation temperature/Humidity | 0℃-45℃/20%-95%(non-condensing) |
| Storage Temperature/Humidity | -20℃-60℃/20%-95%(non-condensing) |
| Operation Power | 220VAC(±10%)50±3Hz |
| Power Consumption | 1.0 KW (max), 0.7KW(working) |
| Noise | <58db |
X-ray Generator
| Beam direction | Diagonal |
| Generate angle | 80 degree |
| Anode Voltage | 140Kv or (100Kv to 160Kv adjustable) |
| Anode power | 0.4 to 0.5mA |
| Cooling / Duty Cycle | Oil Cooling /100% |
Image System
