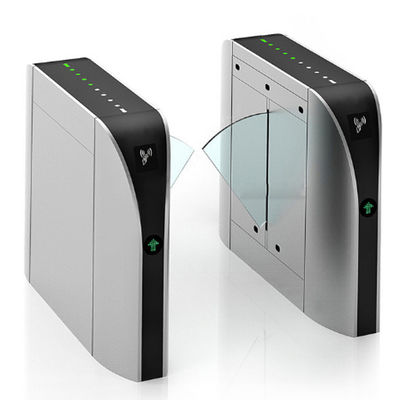

Electronic Security Turnstile Gate High Sensitivity Supermarket Barrier Posts

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE,FCC,ROHS,ISO9000
Model Number: SEFT201A
Minimum Order Quantity: 1 pic
Price: $0-1/pic
Packaging Details: Wooden Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100 pcs per day
Detail Information
Sensitivity: High Sensitivity Charger Voltage: 9V For AC Or 10V For DC
Working Hours: 40 Hours Continuously Application: Electronic,Security,Quality Inspection
Model Number: SEFT201A Customize: Support
Features-1: Fault Detection And Alarm Functions, Easy To Use And Maintenance Features-2: Mechanical Antipinch Function
Features-3: Anti-breakthrough Function Features-4: Synchronization Functions
High Light:

pedestrian turnstile gate


high security turnstiles

Product Description


1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical antipinch function. If the gate meets resistance in the reset process,motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gate equipment).

6. Automatic reset function. Should the user fail to pass within the prescribed time, the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.

9. Direction can be set as single-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Counter function (optional).

14. Support infrared photocell for anti-pinch and reset function



Dry contat relay with 12V OR 24V pulse.

TCP/IP communication with computer.


Technical Parameter:

Model Number SE-FT201A
Passage width ≤850mm
Throughput rate 35p/m
Power supply AC100-240V
Operational voltage DC24V
Max power consumption 35W
Frequency 50-60HZ
prectection level 44IP
Working temperature -25 to +70degree
Dimension excluding bars 1200X300X1000mm
Net weight including bars 45kg
Optional devices 1.Fingerprint reader 2.Face recognition 3.Card collector
  4.Card reader 5.2D scanner 6.Palmprint reade
