Easy Assembly Body Scanner Metal Detector , Walk Through Scanner 33 Detection Zones

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE, FCC, ROHS, ISO
Model Number: PD6500I
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: WOODEN BOX
Delivery Time: 5 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 600 pcs/ one month
Detail Information
Application: Security Type: Metal Detector
Installation Mode: Handheld Usage: Body Security Checking
Delivery Time: 3-7days Within 10PCS Packaging Details: Carton Box, About 0.54cbm/ Set
Detecting Zones: 33 Detection Zones Warranty: 2 Years
High Light:

metal detector gate

,

portable metal detecto


Product Description


this is our new walk through metal detector with LEd Screen and keyboard


you can tell us the mod you need then we can offer you more details .




Technical Parameters
Power Supply 220V/AC 110V/AC
Power <30V
External Dimension 2200mm(H)*820mm(W)*550mm(D)
Passageway Dimension 2000mm(H)*700mm(W)*550mm(D)
Work environment -20°C- +45°C
Standard GB15210-2003<WALK THROUGH METAL DETECTOR>

Application



Features:

Easy Assembly
 Modular design allows for a quick and easy assembly, only 4 screws to mount it.

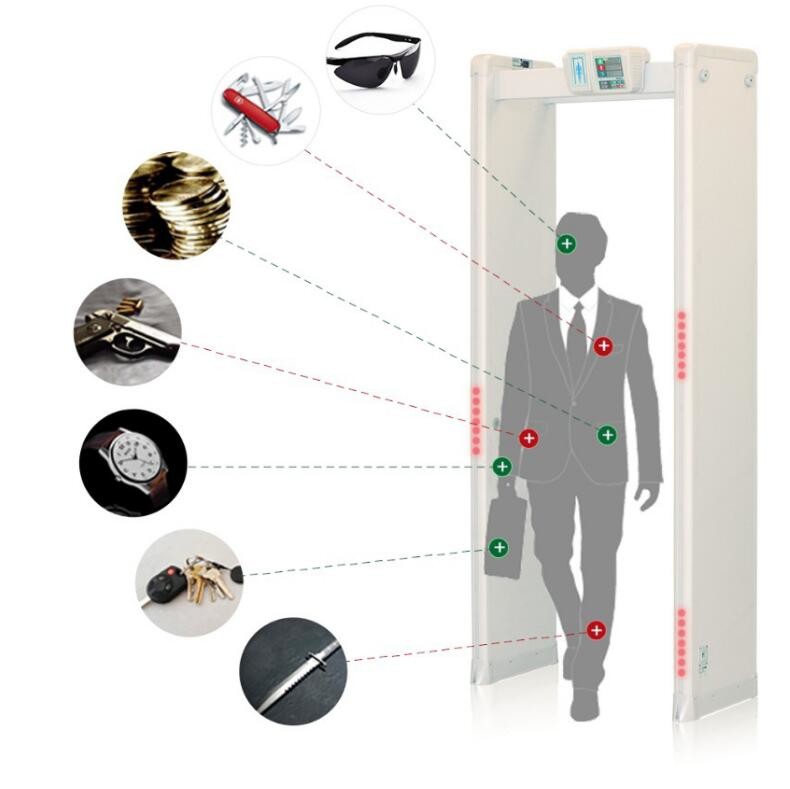

Pinpoint Detection Zones
there are different  distinct pinpoint detection zones for full target coverage on the left, centre and right side of the body from head to toe
Traffic Lights
on the entrance of the archway ,there are  traffic light to remind you the detector is ready for passenger.
Audible and visual alarms
there is audible alarm and visual LED lights signal when a target has been detected ,the pinpoint lights on the exit gatepost will show the location of any offending object.
Touchpad controls
The access control panel is designed for use by authorized personnel with specific, multi-level security codes.it allows authorized users to change settings.
Self-test
no battery is required for memory retention.while the unit is in operation,a self-test is performed , any failures or problems will be immediately reported on the LCD display



Specifications:

1)operating temperatures
-20`C to +70`C;humidity:to 95% non-condensing
2)power fully automatic 100 to 240VAC,50 or 60 hertz,5watts;no rewiring, switching or adjustments required
3) weatherproofing/foreign object protection standards meet IP55,IEC standard.
4)traffic counter
counter count the number of passenger that have passed through the detector, the number of alarms and calculates alarm percentage
5)synchronization
dual channels and DSP circuit allow several  to operate simultaneously in close proximity to another
6)alarms
audible tone and volume adjustable.bright LED visual alarm
7)target pinpoint lights
thirty-three distinct zones are displayed with two independent columns of LED' located on exit side of the gate

Dimensions
overall sizes(cm):224(height)x90(width)x58(depth)
size of alley(cm):224(height)x76(width)x58(depth)
Net Weight:68kg
shipping size(cm): 227x73x22 (side panel ) 80 x 59 x28cm (control box)
shipping weight: 80kg








Easy Assembly Body Scanner Metal Detector , Walk Through Scanner 33 Detection Zones 0


rports and Seaports

· Government Buildings

· Embassies

· Police Facilities

· Courthouses

· Prisons and jails

· Military Bases

· Hospitals

· Banks

· Financial Institutions

· Colleges and Schools

· Hotels and Casinos

· Power plants

· Research Sites

· Sports Stadiums

· Public Transportation

· Public Landmarks

· Factories and Warehouses

· Broadcast Studios

· Museums


if there are any need for you ,please feel free to contact me .
