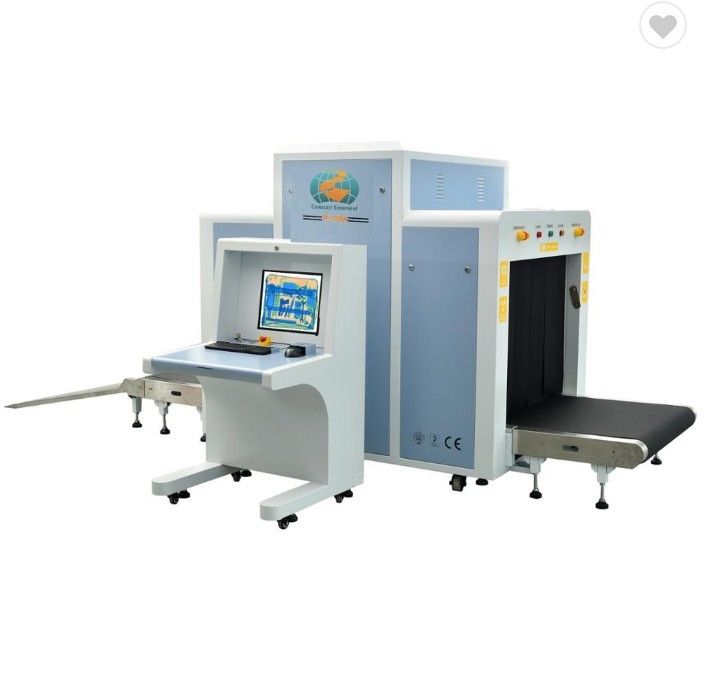

High Conveyor Speed X Ray Security Scanner For Bus Station / Airpport / Museum

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE,FCC, ROHS, ISO
Model Number: ZAD-X6550
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden packing
Delivery Time: 3-4 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 500 pcs per month
Detail Information
Power Wastage: 1.0KW(Max) Noise: <65 DB
Operating Temperature: 0℃~45℃ Storage Temperature: -20℃~60℃
Steel Penetration: 34MM Metal Line Tunnel Size: 650(W)*500(H) Mm
Conveyor Speed: 0.2m/s Warranty: 2 Years
High Light:

baggage x ray machine

,

airport baggage x ray machines


Product Description

X Ray Security baggage Scanner for bus station /airpport /museum/court/movie theater





Product Introduction :



X-ray penetrate inspection , the object can be found within the metal structure , can display the naked eye

can not see where the liquid is also very obvious object display .



Product specification :





1. Detection Mode: X-Ray  baggage scanner

2. Tunnel Size: 650(W)*500(H) mm

3. Conveyor Speed: 0.2m/s

4. Conveyor Max Load:170kg

5. Single inspection dosage: <1.5uGy

6. Wire Resolution:Ф0.1mm metal line

7. Steel Penetration:34MM metal line

8. Maximum leakage radiation: <0.05uGy/h

9. System Power:220AVC/50Hz





Specification :



model ZAD-X6550
Power wastage 1.0KW(Max)
Noise <65 dB
Operating Temperature 0℃~45℃
Storage Temperature -20℃~60℃





Application:



Used in the factory testing of security products and business units such as: electronic factories ,

shoe factories, toy factories, courts, railway stations, and event bag, line security management package .

.
