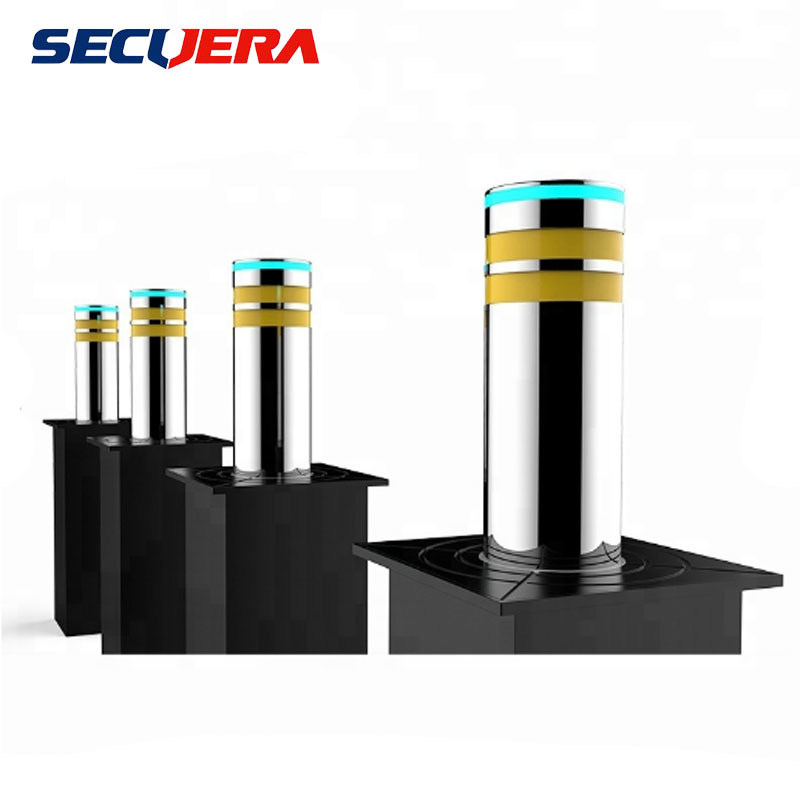

Automatic Concrete Hydraulic Road Blocker High Security Vehicle Parking Bollard

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE,FCC,ROHS,ISO
Model Number: SERHB-08
Minimum Order Quantity: 1 pic
Price: negotiable
Packaging Details: Wooden Box
Delivery Time: 5-8 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10 pic /Month
Detail Information
Warranty: 3 Years Product Name: Rising Hydraulic Bollards
Life: Over 10 Years Material: 304 Stainless Steel
Application: Factory,School,Prison,Car Parking Station And So On Model Number: SERHB-08
Feathers-1: Automatically Raise/lower/stop Feathers-2: Variable Frequency Controller
Feathers-3: Firm Foundation Plate Feathers-4: Built-in Valve
High Light:

parking space blocker


remote control parking bollards

Product Description

Anti- terrorism collision automatic concrete high security hydraulic bollard vehicle parking bollard


concrete bollards Product Datasheet

Model SERHB-08
Body cylinder Material 304 stainless steel
Outer cylinder diameter 325mm
Body Thickness 6mm
Body Diameter 219mm(+1)
Surface finis Drawing / polishing / painting
Body height 600mm
Embedded cylinder depth 1100mm
Weight 150kg
Embedded cylinder material 5mm thickness carbon steel with powder coating or zinc coating surface finish
Reflective Strip Available
Flashing light Customized
Work frequency 1500 cycles /day
Service life 10-15years
Impact Resistance More than 60,000 joules
Bearing Capacity More than 40 ton
Level of noise Less than 60 decibel
Control method Cable button or wireless remote
Rising/lowering speed 3s-6s(adjustable)
Movement electric hydraulic
Installation Cemented into the ground
Power Supply 380V(control voltage 24V)
System Dynamic Power 3.7Kw
Protection standard IP67 anti-water, anti-shock, anti- dust,antiimpact


concrete bollards Product Application

The rising bollards are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all places where vehicle traffic is restricted. The placeman sends instructions through the control system, and the hydraulic transmission enables the roadblock device to quickly ascend and descend. After the vehicle passes, the roadblock is automatically lifted and lowered by the inductive detection automatic command of the roadblock device or the manual button operation; to control the lane, the door is released or closed. To effectively prevent vehicles from forcibly punching cards.

The product adopts hydraulic drive technology for mandatory interception, strong load-bearing and anti-collision capability, simple and flexible operation, hydraulic transmission, stable and fast action, low noise, strong traffic capacity, safe and reliable, strong carrying capacity and stable lifting.

The rising bollards can be used together with the traffic barrier gate, the smart card charging management system and the access control attendance system to form a complete crossing management system. (added according to user requirements)




Packaging& Delivery:
1. Packaging: According to Standard Export Packing or as per customers' requirements
2. Delivery: Express/ Air/ Sea/ under the requirements of customer
3. Taxes & duties: International customers are responsible for all duties and taxes,
please contact your local authority for questions related to the amount of duties or taxes
you will be responsible for.


Our services:
1. Securina provides full operational and technical training support by experienced engineers
2. Phone technical support



Q: Are you manufacturer or trader?
A:We are manufacturer, we have own factory in Shenzhen, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.


Q. Do you sell the accessories for Products ?
A:Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.


Q.How about the packing for product?
A:Is it easy damaged during transportation? For light structure products like Gold detector. Hand held metal detector and so on we takes of strong carton box . For heavy structure products like conveyor belt needle detector. Food metal detector X ray machine .Our packing is Standard Export ploy Wooden Case. Every prepackage have a plastic bags cover .


Q. What’s your main product?
A:We professional in needle detector. Metal detector. X ray machine and other related electronic products and machines


Q.Where is your main sales market?
A:Our Gold meal detectors customer all over the world. Our hand metal detector and walk through metal detector mainly in Southeast of Asia. South of America.Middle east. East Europe and Africa Our needle and food metal detector mainly customers are from Australia. USA. All Europe and Asia


Q.How about your after-sales policy?
A:Customer first is our always principle . All of our products normal warranty is 24months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .


Q.Do you accept customer Logo and customized ?
A:we accept kinds of customized and logo of all of our products for customers


Q:How can we contact with you?
