Metal Detector System Walk Through Temperature Scanner With Face Recognition Camera

Basic Information
Place of Origin: CHINA
Brand Name: SECUERA or OEM
Certification: CE.FCC.ROHS,ISO9999
Model Number: SE-C200T
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: International Standard Packing
Delivery Time: 3 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 2000 SET/Month
Detail Information
Sensitivity: 0-99 Adjustable Display Ways: Single-line Of LCD Display
Alarm Way: Audio Alert,and LED Lacation Lamp Work At Same Time Body Temperature Scanner: Infrared Thermal Scan
Language Support: Customizable Application: Airport.station.church Security,school,factory And So On
Feathers-1: Electromagnetic Detection, Double Sides Emission And Reception, No Blinding Area Feathers-2: Detection Zones 6/12/18 Optional, Which Can Accurately Display The Position Of Targets
High Light:

walk through body temperature scanner

,

temperature measuring door


Product Description

Walk Through Metal Detector System Integrated with Face Recognition Camera and Flap Barrier





Features:

• Electromagnetic detection, double sides emission and reception, no blinding area.

• Detection zones 6/12/18 optional, which can accurately display the position of targets.

• Self-learning function, the system will automatically adjust the sensitivity of the corresponding location according to the actual situation.

• Adaptive function, it will turn on the auto-balance function in the serious interference environment to make the WTMD work normally.

• Alarm volume 4 levels adjustable.

• 10 working frequencies, multiple WTMD can work simultaneously side by side.

• Built-in password protection: preventing unauthorized settings changes.

• Language: Chinese and English(optional, other languages can be customized)

• Built 12 different occasions.

• Sensitivity 300 levels adjustable, and the sensitivity of each detection zones can be adjusted separately.

• Multi-devices connection: support personnel identification (face identification device, IC/ID identification device, etc.), alarm capture output (capture shooting camera), flap barrier system controlling output (wing barrier, three rollers barrier, swing barrier, etc.)

• Built-in self-diagnosis program, power-on self-test, error and fault alarm.

• Infrared device: can effectively reduce false alarm and missing, and can automatically count the number of people passing through and the number of alarms.

• Touch button, easy and clear backlight LCD display.

• Network through the computer interface (optional).

• The terminal software can remotely adjust all parameters of the walkthrough metal detector, and can also monitor the number of people passing through WTMD, alarm location, number of alarms, etc. (optional).

• Data statistics: results can be displayed on an external large-screen display (optional).

• Comply with current international safety standards, and is harmless to heart pacemaker wearers, pregnant women, floppy disks, video tapes, etc.



Technical Parameter

Working temperature -20 ° C -70 ° C
Working humidity 95%, no condensation
Working voltage 100V-240V, automatic adjustment
Power 55W
Self-test self-tests and displays the results on the display
Passing through speed faster than 60 person/minute
Security Password protection
Counter Count the number of people passing through, the number of alarms (distinguish between entering and going out)
Multi-frequency multiple frequencies are optional, multiple doors can work simultaneously side by side



Dimension:

Channel size: W76 x H200 x D58cm

External dimensions: W90 x H220 x D58cm

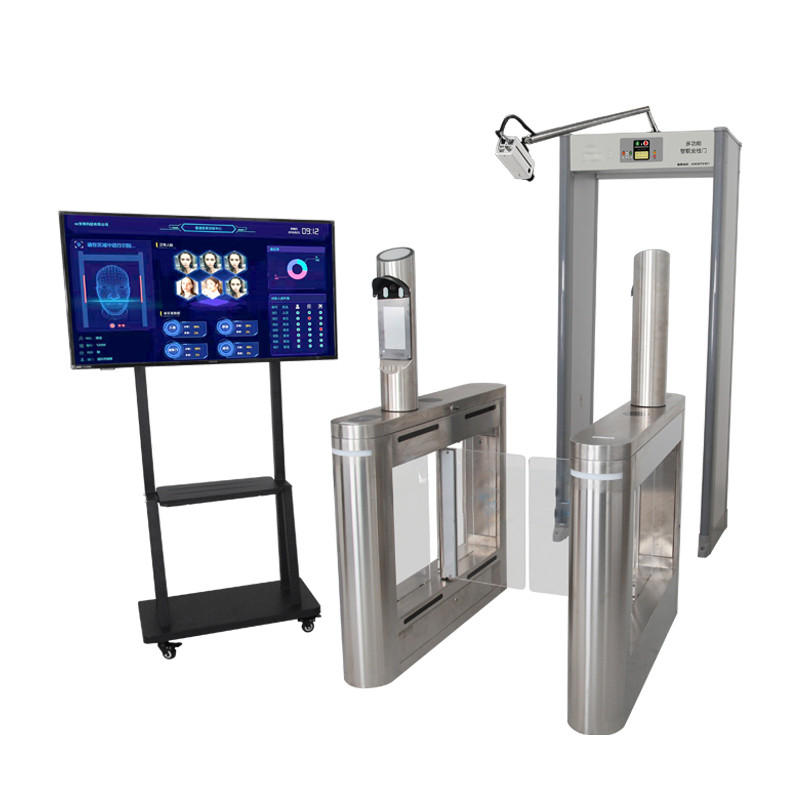

Metal Detector System Walk Through Temperature Scanner With Face Recognition Camera 0
