| Place of Origin: | China |
|---|---|
| Brand Name: | SECUERA |
| Certification: | CE,FCC, ROHS, ISO |
| Model Number: | SE-10080 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | wooden packing |
| Delivery Time: | 2-3 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 300 pcs per month |
| Tunnel Size: | 1000(W)mm*800(H)mm | Conveyor Speed(m/s): | 0.22 M/s |
|---|---|---|---|
| Single Inspection Dosage: | < 1.5µGy | Conveyor Max Load: | 200kgs |
| Wire Resolution: | 0.1mm Metal Line | Steel Penetration: | 34MM Armor Plate |
| Maximum Leakage Radiation: | <0.3µGY/H | ||
| High Light: | SE 10080 X Ray Baggage Scanner,ODM X Ray Baggage Scanner,SE 10080 Baggage Scanner Machine |
||
SE 10080 X Ray Baggage Scanner Machine For Airport Large Parcel
SE-10080 X Ray Security Baggage Scanner for Airport Large Parcel
Specifications of SE-10080 X Ray Baggage Scanner
Highlight
* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Continuous working 10000 hours above
* Threat alert and material classification
* International standard configuration:
Japan Hammatsu detection and UK Sens-tech board
* Network‐Ready
* Energy saving design
* One key turn off
* Drugs and explosives inspection
* Indication of the date and time

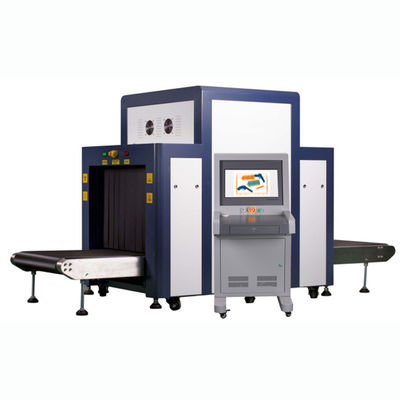

Image Photo of SE-10080 X Ray Baggage Scanner
Technical parameters
|
General Specifications |
|
|
Unit weight |
800 kgs |
|
Unit size(mm) |
3138.5(L)*1295(W)*1716.5(H) |
|
Tunnel size(mm) |
1000(L)*800(W) |
|
Conveyor Speed(m/s) |
0.2 |
|
Conveyor height(mm) |
341 |
|
Conveyor Max Load(kgs) |
205 |
|
Penetration |
Typical 32mm steel, guarantee 30mm steel |
|
Wire Resolution |
Typical AWG38, guarantee AWG36 |
|
X-Ray dosage each inspection |
Typical 1.5 μGy/h, guarantee 2.0 μGy/h |
|
Boundary Leakage |
Typical 1.0 μGy/h, guarantee 1.5 μGy/h |
|
Power consumption |
Max1.0KVA |
|
S/N ratio |
<60dB |
|
Film Safety |
Guarantee ASA/ISO1600 Film |
|
|
|
|
Configuration |
|
|
X-Ray generator |
160KV, oil cooling, from top to bottom |
|
Imaging System |
Japan Hammatsu detector + UK Sens-tech PCBA |
|
Computer |
CPU: Intel Celeron 2.60-2.70GHz, hard drive 500G, Storage 2G |
|
Monitor |
Dell or Acer, 17" LED sceen, resolution 1280*1024 pixels |
|
Operation table |
Double screen console |
|
Operation System |
Windows XP |
|
|
|
|
Software |
|
|
Image Enhancement |
1-64times enlargement continuity, Color/BW, negative, high/lowpenetration, organic /inorganic Stripping, general enhancement, and pseudo color,etc. |
|
Image Recall |
30 preceding images recallable,retrieval. |
|
Image Archive |
Up to 50,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP, XF, PNG, TIFF, GIF six formats. |
|
Other Functions |
Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc. |
|
Network Applications |
Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc (Optional). |
|
Operating Environment |
|
|
Operation temperature/Humidity |
5C‐40C / 0%-90%(non-condensing) |
|
Storage temperature/Humidity |
-20C‐60C / 10%-90%(non-condensing) |
|
Operation Power |
220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC) |
Application of SE-10080 X Ray Baggage Scanner
