SECUERA SE-8065 Airport Baggage Scanner Machine For Subway Hospital

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE,FCC, ROHS, ISO
Model Number: SE-8065
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden packing
Delivery Time: 2-3 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 300 pcs per month
Detail Information
Tunnel Size(mm): 808(W)*650(H) Conveyor Speed(m/s): 0.2
Wire Resolution: 38AWG Power Consumption: Max. 1KW
Noise: < 60 DB Anode Voltage: 160 KV
High Light:

L shaped airport baggage scanner machine

,

1KW airport baggage scanner machine

,

L shaped luggage x ray machine


Product Description

Tunnel Size 8065 Airport Bag Scanners Machine For Subway Hospital



Tunnel Size 8065 X-ray Baggage Scanner X Ray Machine



Specifications of SE-8065 X Ray Baggage Scanner



* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Uninterruptable power supply (UPS)
* Threat alert and material classification
* Auto archiving
* Network-Ready
* Energy saving design
* One key turn off

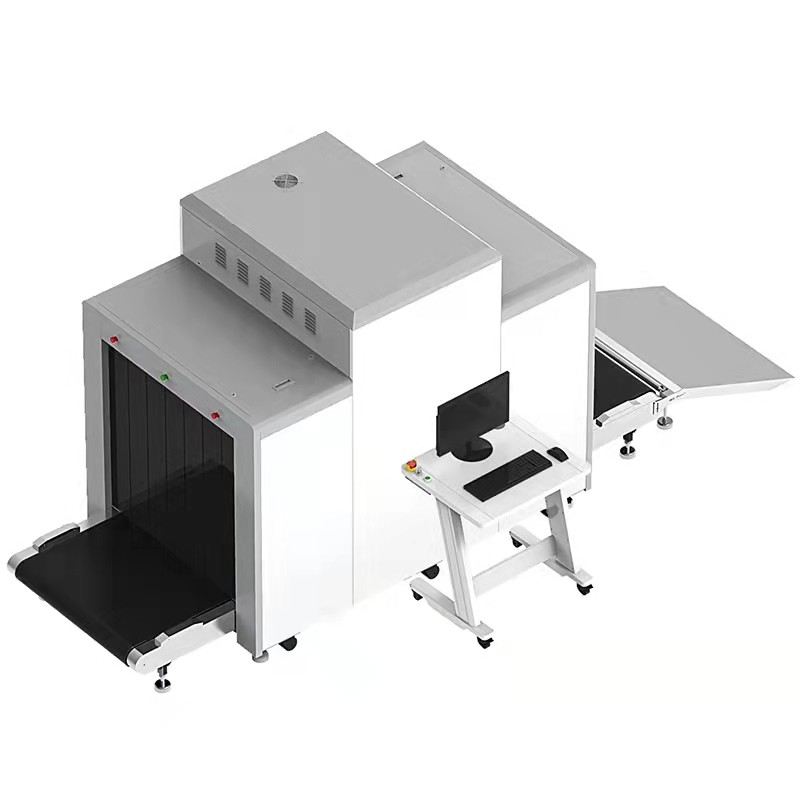

Image Photo of SE-8065 X Ray Baggage Scanner

SECUERA SE-8065 Airport Baggage Scanner Machine For Subway Hospital 0

Technical parameters

Physical Specifications
Unit weight (kgs) 750
Unit size (mm) 2630(L)*1103(W)*1502(H)
after packed in wooden pallet -
Gross weight (kgs) 950
Packing size #1: 213*121*179cm
  #2: 115*90*142cm

General Specifications
Tunnel size(mm) 808*650
Conveyor Speed(m/s) 0.2
Conveyor height(mm) 304
Conveyor Max Load(kgs) 150
X ray dose per each inspection Typical 2.5 μGy/h, guarantee 3.0 μGy/h
X ray leakage Typical 0.5 μGy/h, guarantee 1.0 μGy/h
Penetration Typical 38mm, guarantee 34mm
Wire Resolution Typical AWG40, guarantee AWG38
Penetration Resolution Typical AWG32, guarantee AWG30
Spatial resolution: Typical dia1.0mm,Vertical: dia1.0mm; Guarantee dia1.0mm,Vertical: dia1.0mm;
Power Consumption max. 1KW
Noise < 60 dB
Film Safety Guarantee ASA/ISO1600 Film

X-ray Generator (single)
Anode Voltage 160 KV
Anode power 0.7mA
Generate angle 82 degree upward
Generate direct from top to bottom
Cooling / Duty Cycle Oil Cooling /100%
Brand Spellman or local made

Image System
X-ray Sensor L-Shaped Photodiode Array (multi-energetic) , 16bit Deep
Image Display High resolution of 1024 * 1280 pixel; Image Grey Level: 65536
Image Enhancement 1-64times enlargement continuity, Color/BW, negative, high/low
penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall All preceding images recallable, retrieval
Explosives & Narcotics Detection Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive Up to 200,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Images process 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags

Operating Environment
Operation temperature/Humidity 0ºC-45ºC / 5%-95%(non-condensing)
Storage Temperature/Humidity -40ºCto 70ºC / 5%-95%(non-condensing)
Operation Power 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS 15mins, 30mins, 60mins etc, optional

Computer and other
Monitor High Resolution Color, LCD Accord, 17inch
Hard Disk SEAGATE 500G 3.5"
CPU G1610 2.6G
Storage 2GB 1600MHz DDR3 Innodisk
Main board H61 SYM76993VGGA

Compliance
International * ISO19001 ; ISO14001 ; OHSMS18001 ;
* CE
* USA FDA
* Maximum X-ray leakage of less than 5 μSv/h(0.5mR/h) measured at 5cm from any external surface. (European standard - less than 1 μSv/h(0.1mR/h) measured at 10cm from any external surface)
National (China) * Health Inspection Report
* Computer Software Copyright Registration Certificate
* Software Product Registration Certificate
* Radiation Safety Certificate from Ministry of Public Security
* Quality Certification from Safety and Police Electronic Products Quality Inspection Center
* Design pantent certification: Patent No. : 201020700245.2 ; Patent No. : 201020700245.8 ; Patent No. : 201020700256.0



Miscellaneous Functions



Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.





Application of SE-8065 X Ray Baggage Scanner

Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .

x ray luggage scanner check guns and weapons baggage x-ray scanner for airport/factory security Manufacturer
