Stainless Steel Pedestrian Control Security Full Height Turnstile Barrier Gate

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE, FCC,ROHS,ISO
Model Number: SE-FHT13
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: carton box
Delivery Time: 3-5 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 40000 pcs per month
Detail Information
Product Name: Crowd Control SS316 Full Height Turnstile Life: Over 10 Years
Warranty: 3 Years Language Support: Customizable
Application: Security,school,factory And So On Quality: Stable And Good
Feathers-1: Self-check And Alarm For Convenienting To Operate. Feathers-2: The Function With Or Without Card-reading Memory Cab Be Set According To Your Demand.
Feathers-3: Beam Can Be Lifted And Fall When Power Is Cut-off. Feathers-4: Direction-guide Lights In The Turnstile To Tell You Whether The Direction To Go Or Not.
High Light:

pedestrian barrier gate


access control turnstile gate

Product Description

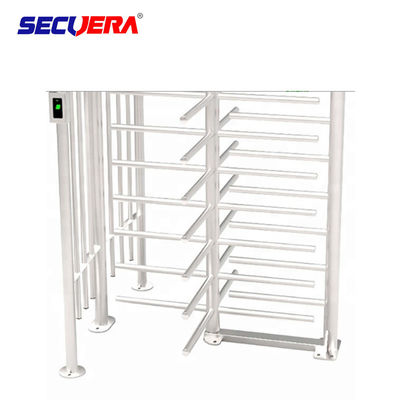

Stainless Steel Pedestrian Control Security Full Height Turnstile Barrier Gate


Crowd Control SS316 Full Height Turnstile Introduction :

The full high turnstile is designed to provide unsupervised access control for office or building.

The impenetrable construction eliminates any unauthorized access to restricted areas.

To gain authorized passage through the turnstile, the user must present a valid card for the access control system.

Upon presentation of the valid card. the turnstile will unlock and allow the user to pass through the direction requested.

The turnstile can also work with push button, fingerprint and face recognition access control system.


Crowd Control SS316 Full Height Turnstile Function :

(1) Running stably without noise and mechanical impact.

(2) The passing person number of the persons can be set.

(3) Several ways of working molds for your demand chosen.

(4) Bidirection, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board.

(5) Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.

(6) Direction-guide lights in the turnstile to tell you whether the direction to go or not.

(7) The standard electrical interface connected with various kinds of reader and writer equipment.
(8) All the functions realized in one integration machine and controlled and managed by the computer in the far distance.
(9) The number of the persons passed by can be counted automatically which can also be displayed in LED

(10) Beam can be lifted and fall when power is cut-off.

(11) The function with or without card-reading memory cab be set according to your demand.

(12) Self-check and alarm for convenienting to operate.


Crowd Control SS316 Full Height Turnstile Technical Parameter :

Pass width ≤600mm
Throughput Rate 30~40p/m
Power Supply 90-240V(ac)
Operational Volatge 24V(dc)
Max power consuption 32w
Frequency 50~60w
Protection level IP45
Working temperature -25~+70 degrees
Electro-magnetic drive DC
Dimension excluding bars 1500x1400x2300(mm)
Net Weight



Stainless Steel Pedestrian Control Security Full Height Turnstile Barrier Gate 0

Stainless Steel Pedestrian Control Security Full Height Turnstile Barrier Gate 1
