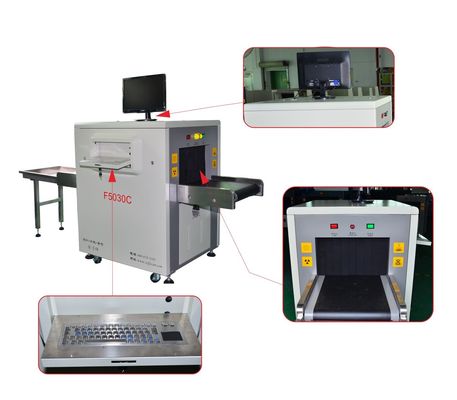

38 AWG Resolution X Ray Security Scanner , Friendly Interface Baggage Scanner Machine

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE,FCC, ROHS, ISO
Model Number: ZAD-X5030
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden packing
Delivery Time: 3-5 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 680 pcs per month
Detail Information
Channel Dimensions: 500*300mm Conveyor Speed: 0.2M/S
Conveyor Height: 73cm Max. Load: 100 Kg(Evenly Distributed)
Resolution: Standard: 38 AWG Penetration(steel): Standard: 30 Mm
High Light:

x ray baggage scanner


baggage x ray machine

Product Description

30mm Steel Penetration X Ray Baggage Scanner , Airport security Parcel Scanner Machine



Competitive Advantage:

1. Integrated, cost Effective, Turn-Key Security
2. Fit for small Baggage and Parcel Security Inspection.
3. Increased detection capability
4. Friendly interface,easy to learn and easy to operate
5. Reliable performance and uncompromising value



01. Airports, 02. Transport terminals, 03. Buildings,
04. Factories (to find needle in clothing, shoes, bags),
05. Courthouses, 06. Embassies, 07. Military installations,
08. Prisons, 09. Hotels, 10. Schools , 11. Convention centers,
12. Security checkpoints 13. Special events location





Tunnel Size: 505 mm(W)×304 mm(H)
Conveyor Speed: 0.2m/s
Conveyor Max Load: 160 kg(Evenly distributed)
Resolution: typical:40AWG Standard:38AWG
Penetration: 32mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage: < 1μGy/h(5cm distance from outer)
Generate direct: From bottom
Anode Voltage: 140 KV(adjustable)
Anode power: 0.3mA
Cooling / Duty Cycle: Oil Cooling /100%
X-ray Sensor: L-Shaped Photodiode Array (mono-energetic), 24bit Deep
Monitor: High Resolution Color, LCD Accord, 19 inch
Image Processing:

Edge enhancement, image strengthening, image lightening,

reducing darkening, image returning, image retrieval.

Image Grey Level: 65536
Image Max Resolution: 1440 * 900 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 100,000 pictures in real time
Zoom: 64 Times Enlarge, Whole screen continuous observation
Operation temperature/Humidity: 0℃-45℃/10%-95%(non-condensing)
Storage Temperature/Humidity: -40℃~+60℃/10%~95% (non-condensing)
Operation Power: AC 220 V(+10%~-15%) 50±3(Hz)
Power Consumption: About 0.41(KVA)






Airport X Ray Baggage Scanner Integrated With Stainless Steel
