| Place of Origin: | China |
|---|---|
| Brand Name: | SECUERA |
| Certification: | CE,FCC, ROHS, ISO |
| Model Number: | ZAD-X10080 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | wooden packing |
| Delivery Time: | 2-3 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 600 pcs per month |
| Tunnel Size: | 1000(W)*800(H)mm | Penetration: | 35mm Steel |
|---|---|---|---|
| Penetrate Resoltuion: | Dia 0.511mm | Application: | Public Security |
| Usage: | Secuity Equipment | Color: | White/Grey |
| Conveyor Max Load: | 200kg | Warranty: | 24 Months |
| High Light: | airport baggage x ray machines,x ray scanning machine |
||
X-RAY GENERATOR:
| Tunnel Size | 1000(W)×800(H)mm | Maximum leakage radiation | <0.3µGY/H |
| Conveyor Speed | 0.22 m/s | Orientation | Vertically Upward |
| Conveyor Max Load | 200 kg | Tube Current | 0.4~1.2MA(adjustable) |
| Single inspection dosage | < 1.5µGy | Anode Voltage | 100~160 KV(adjustable) |
| Wire Resolution | 0.1mm metal line | Angle | 80° |
| Steel Penetration | 30MM armor plate | Generator cooling/working periods | Sealed oil bath with forced air/100％ |
| Film Safety | For ISO 1600 |
Easy operation
Advantages :
1. With equipment to save electricity
2. Famous brand spare parts:
(1). Spellman brand generator from the USA
(2). Hamamatsu brand detector from Japan
(3). Interroll brand Roller from German
3. Protective cover on lead curtain to avoid lead pollution
4. Sound and light alarm
5. Local network supported
Application:
Feature:
Alarm by sounds & light: Alarm by sounds and light when conform to condition.
Network interface: Could be connect local area network and support multi-terminal check baggage at same times
Safety ray: Transmit ray under automatic control, avoids the miss.
Turn off by a key control:Turn off the machine only need one step:revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
Eagle-eye: Could be expediently observing enlargement area.
Estimate malfunction by self: Automatic estimate malfunction and prompt message, helpful for the maintenance.
Image performance system:
X-ray sensor: l type photo-diode array detector, 12bit
Monitor: high resolution 17inch color lcd display
Color quality: 24 bit real colors
Edge enhancement: object contour edge is more distinct
Super image enhancement: image detail is more distinct
High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorbtivity mass distinctly
Low penetrate strength display: increase contrast of low absorbtivity mass (easy to penetrate) to display it distinctly
Magnifier: function of partial enlargement
Brightening/dimming: increase brightness of image/decrease brightness of image
Image recurrence: display previous twenty images and process any one of them
Image restoration: restore image to initial status at the time of stopping conveyor
Image storing: real time store any image and process it in operation status
Multi-energy function:
Multi-energy color :display organic material for orange, display inorganic material for blue, and display mixture for green
High energy/low energy: switch to display two energy type, high energy stands for metal etc., low energy stands for nonmetallic
Auxiliary function for drugs & explosives: help to detect such dangerous material as drugs & explosives etc.
Audible & visible alarm: give sound and visible signal when conforming to condition
Operating environment:
| Storage Temperature: | -20ºC to 60ºC | Relative Humidity: | 20 to 95% non-condensing | Power wastage: | 1.5 KW (Max) |
| Operating Temperature: | 0ºC to 45ºC | System Power: | 220 VAC (±10%) 50±3HZ | Noise: | <65DB |

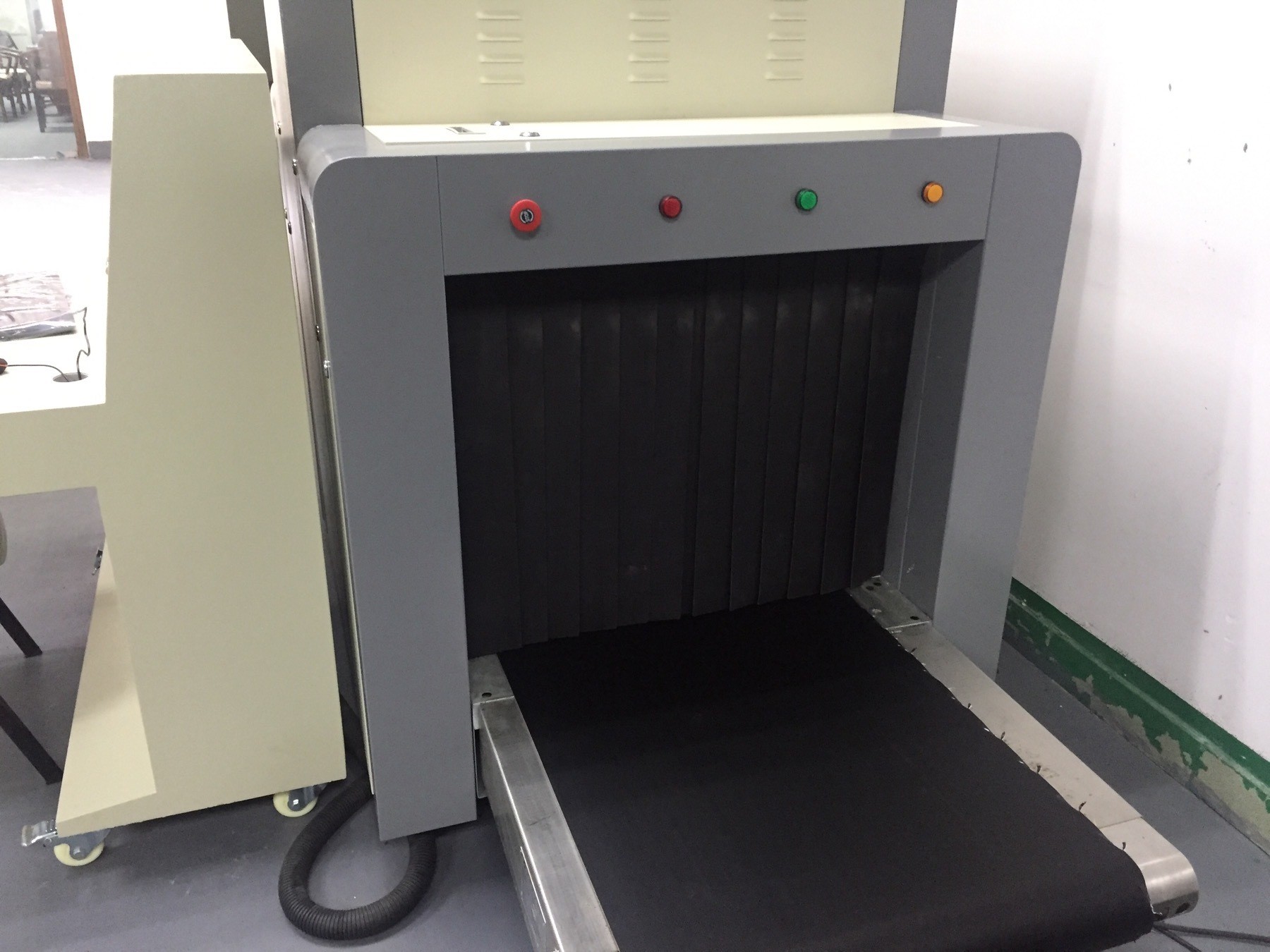

Detailed Images:
