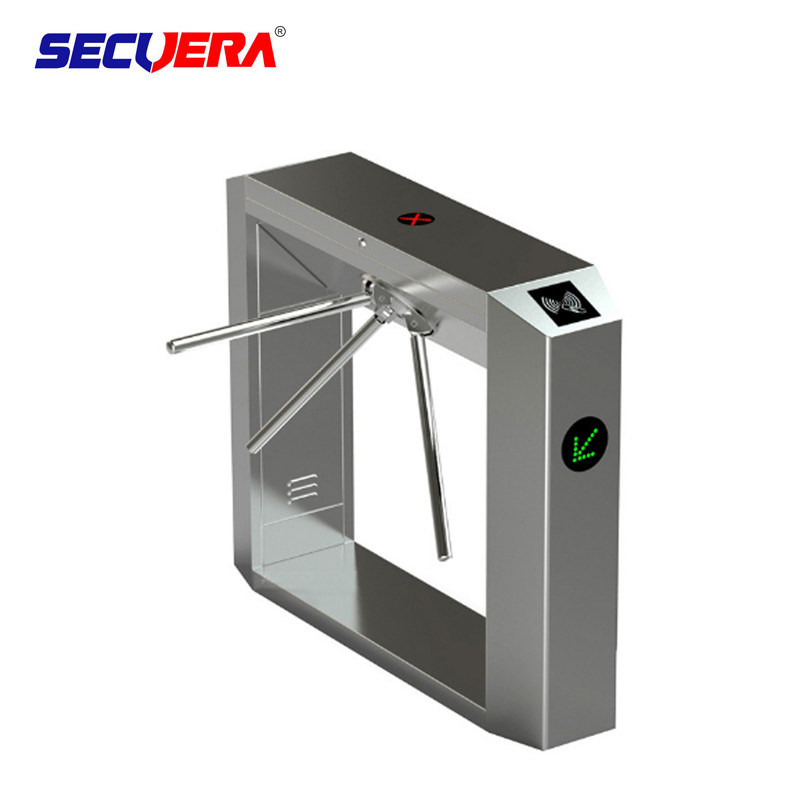

Vertical Tripod Turnstile/Automatic access control tripod turnstile used turnstiles for sale

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE,FCC,ROHS,ISO
Model Number: SE-TP11
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: carton box
Delivery Time: 3-5 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 pcs per month
Detail Information
Product Name: Tripod Barrier For Entrance Security Life: Over 10 Years
Warranty: 3 Years Language Support: Customizable
Application: Security,school,factory And So On Quality: Stable And Good
Feathers-1: Anti-Pinch Mechanical Structure,anti-bumps Function, Feathers-2: Break Into Protection Function
Feathers-3: Counting Function (optional) Feathers-4: Pinch Function (bridge Type Four Pairs Of Infrared Optional)
High Light:

access control turnstile gate


pedestrian turnstile gate

Product Description

Vertical Tripod Turnstile/Automatic access control tripod turnstile used turnstiles for sale


Tripod Barrier For Entrance Security Main Specification

Power voltage AC220 ±10% V/50 ±10% HZ
Drive voltage DC 24V
Pass speed 50person/minute(always open),35-40person/minute(always close)
Dimension 1400*200*1000mm
Cover thickness 1.5mm
Cabinet thickness 1.2mm
Open direction unidirectional or bidirectional
input interface Dry contact signal or 12v DC level or 12v pulse≥100ms,drive current≥10mA
Length of the bar ≤300mm, Standard bar length 260MM
Channel width ≤600mm
Open angle 180°
Running life Continuous Opening and Closing operationMore than 3 million times
Relative humidity ≤90%,None-condensation
Communication port TCP/IP



Tripod Barrier For Entrance Security Features

1.Fault self-test and alarm functions,convenient user maintenance and using

2.Via the control board Built in a small dish,Programmable devices running status

3.Anti-Pinch mechanical structure,anti-bumps function, when the swing arm reset process meet resistance, within a limited time automatically stops the motor, the default delay after the reset again (until reset), and the force is very small (≤2Kg )

4.Break into protection function, when the gate signal is not received, the arm automatically locked

5.Relative with a variety of reader device attached,working when receive relay switch signal

6.Remote control and management by the management computer

7.Power-off arm Automatic open,turn on automatically closed, can meet fire safety requirements

8.Pinch function (bridge type four pairs of infrared optional)

9.Accurate logic judgment and infrared reset function (4 or 6 pairs of infrared)

10.Counting function (optional)



Packaging& Delivery :
1. Packaging: According to Standard Export Packing or as per customers' requirements
2. Delivery: Express/ Air/ Sea/ under the requirements of customer
3. Taxes & duties: International customers are responsible for all duties and taxes,
please contact your local authority for questions related to the amount of duties or taxes
you will be responsible for.


Our services :

1. Securina provides full operational and technical training support by experienced engineers

2. Phone technical support



Q: Are you manufacturer or trader?
A:We are manufacturer, we have own factory in Shenzhen, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.


Q. Do you sell the accessories for Products ?
A:Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.


Q.How about the packing for product?
A:Is it easy damaged during transportation? For light structure products like Gold detector. Hand held metal detector and so on we takes of strong carton box . For heavy structure products like conveyor belt needle detector. Food metal detector X ray machine .Our packing is Standard Export ploy Wooden Case. Every prepackage have a plastic bags cover .


Q. What’s your main product?
A:We professional in needle detector. Metal detector. X ray machine and other related electronic products and machines


Q.Where is your main sales market?
A:Our Gold meal detectors customer all over the world. Our hand metal detector and walk through metal detector mainly in Southeast of Asia. South of America.Middle east. East Europe and Africa Our needle and food metal detector mainly customers are from Australia. USA. All Europe and Asia


Q.How about your after-sales policy?
A:Customer first is our always principle . All of our products normal warranty is 24months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .


Q.Do you accept customer Logo and customized ?
A:we accept kinds of customized and logo of all of our products for customers


Q:How can we contact with you?

A:Whatsapp&Wechat : +86-15818573270
