|Place of Origin:||China|
|Certification:||CE, FCC, ROHS, ISO|
|Minimum Order Quantity:||1set|
|Packaging Details:||carton box|
|Delivery Time:||5-8 days after payment|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal|
|Supply Ability:||800 pcs per month|
|Products Name:||Security Turnstile Gate||Life:||Over 10 Years|
|Warranty:||3 Years||Language Support:||Customizable|
|Application:||Airport.station.church Security,school,factory And So On||Quality:||Stable And Good|
|Feathers-1:||Lane Size Can Be Setting And Has Good Anti-pinch Performance To Protect Passengers.||Feathers-2:||Adopt Module Structure Design,it Has Easier Operation And Less Maintenance.|
|Feathers-3:||Merits For Smooth Running,speed Adjustable And Low Wear.||Feathers-4:||Cutting Edge New ARM Technology,which Has Better Expand-ability And High Cost Performance.|
pedestrian barrier gate,
access control turnstile gate

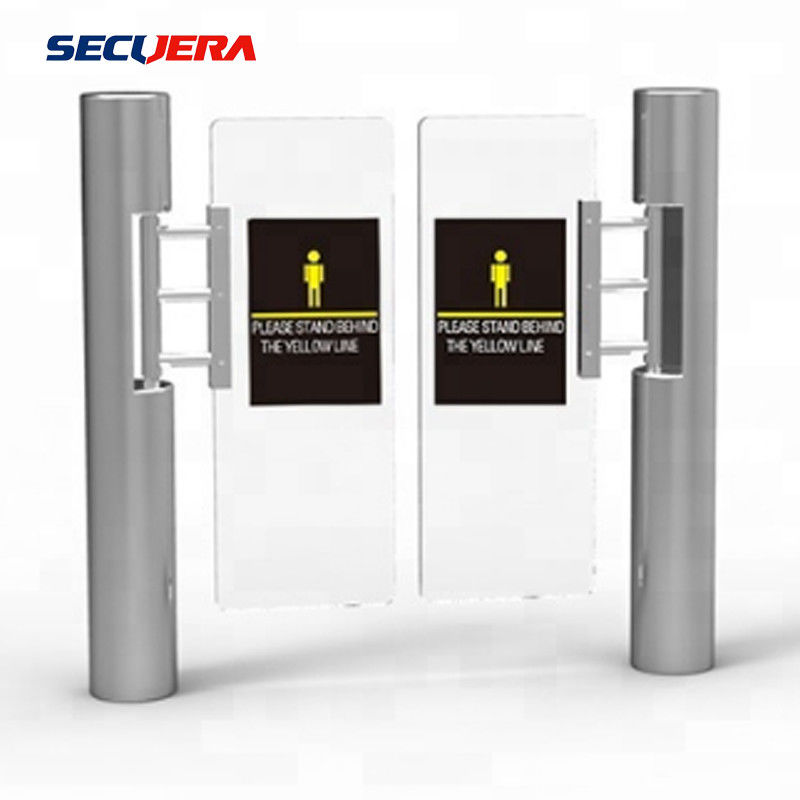

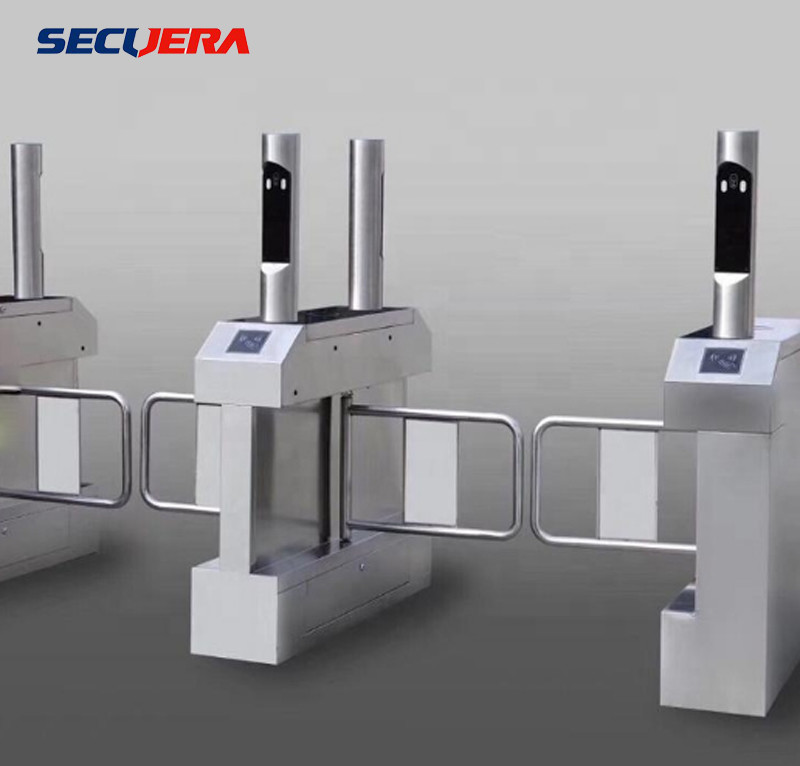

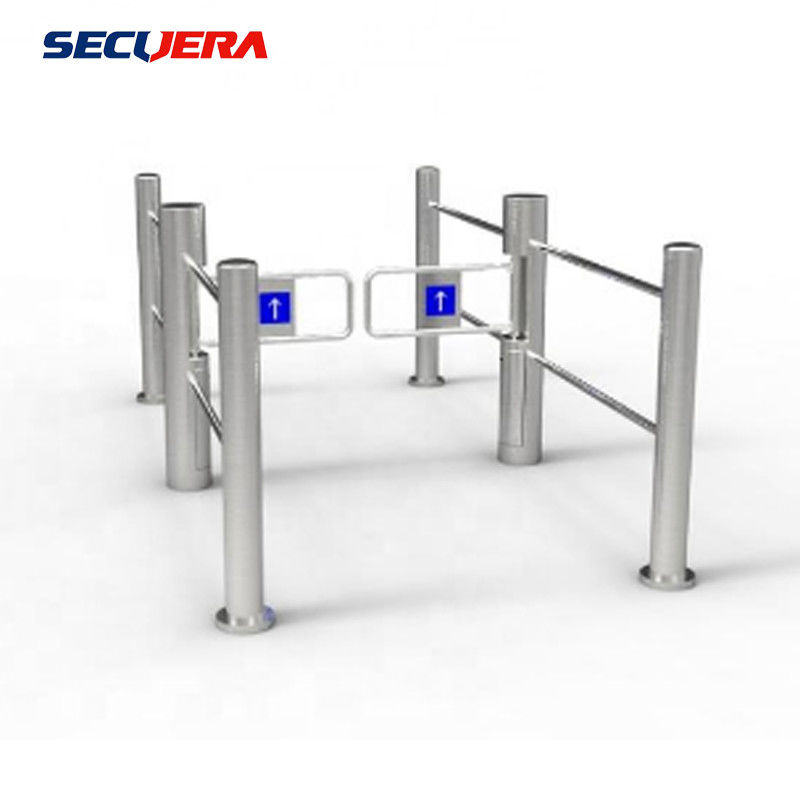

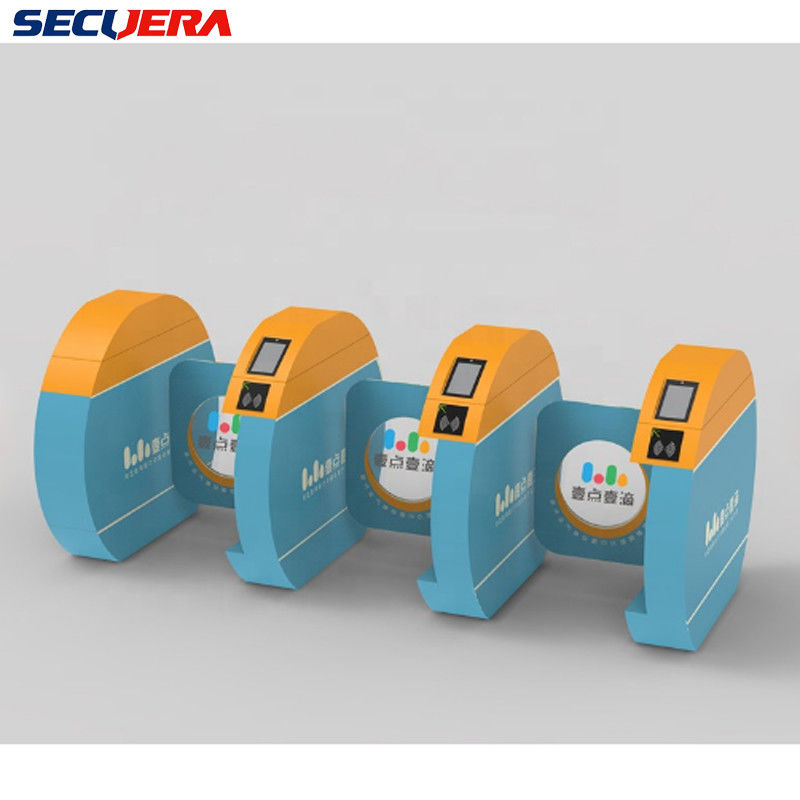

Pedestrian Automatic Sliding Security Entrance Control Swing RFID Turnstile Barrier Gate
Swing Turnstile Gate Spotlight :
♦Adopt Brush-less motor,it has longer lifespan.
♦Non polar collision avoidance,it has strong resistance to destruction.
♦Super ego protection, it is the preferred choice for non-motorized vehicle passageway.
♦Cutting edge new ARM technology,which has better expand-ability and high cost performance.
♦Merits for smooth running,speed adjustable and low wear.
♦Adopt module structure design,it has easier operation and less maintenance.
♦Lane size can be setting and has good anti-pinch performance to protect passengers.
Swing Turnstile Gate Specifications :
|Housing material||International standard 304SS,201/316SS|
|Arm rotation angle||180 degree|
|Passing speed||25-25 perople/minute|
|Input voltage||AC220±10% V,50HZ|
|Driving motor||DC Brushless Motor 50W/24V|
|Working environment||Indoor and outdoor|
|Working temperature||-40℃—— 80℃|
|Suitable humidity||5%—— 90%|
Swing Turnstile Gate Main Functions :
1.Equipped with standard card read window, can be connect with multi card-readdevice
2.With function of break down self check and alarm,easy maintenance and operation.
3.Swing turnstile can be connected with external button or remote control. achieved one or bi-direction passing at will
4.Auto reset function: If the passenger does not pass in given time, arms will lock automatically,delay time can be 3 s, 5 s, 10 s, 60 s..(given time can be set by operator).
5.Mechanical anti-trap:When people or objects hinder the arm running,the system will automatically detect and stop the run,swing arm strength of small, realize humanized protection.
6.Swing turnstile can realize a normally open or normally closed function switched by external button or remote control.
7.Lighting indicator :High brightness passing indication.
8.Normally open function:the swing turnstile arm will auto opening when power is off.the direction can be adjusted.
9.Sound and light alarm function, including illegal traffic, following, anti-trap etc.
Packaging& Delivery :
1. Packaging: According to Standard Export Packing or as per customers' requirements
2. Delivery: Express/ Air/ Sea/ under the requirements of customer
3. Taxes & duties: International customers are responsible for all duties and taxes,
please contact your local authority for questions related to the amount of duties or taxes
you will be responsible for.
Our services :
1. Securina provides full operational and technical training support by experienced engineers
2. Phone technical support
Q: Are you manufacturer or trader?
A:We are manufacturer, we have own factory in Shenzhen, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.
Q. Do you sell the accessories for Products ?
A:Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.
Q.How about the packing for product?
A:Is it easy damaged during transportation? For light structure products like Gold detector. Hand held metal detector and so on we takes of strong carton box . For heavy structure products like conveyor belt needle detector. Food metal detector X ray machine .Our packing is Standard Export ploy Wooden Case. Every prepackage have a plastic bags cover .
Q. What’s your main product?
A:We professional in needle detector. Metal detector. X ray machine and other related electronic products and machines
Q.Where is your main sales market?
A:Our Gold meal detectors customer all over the world. Our hand metal detector and walk through metal detector mainly in Southeast of Asia. South of America.Middle east. East Europe and Africa Our needle and food metal detector mainly customers are from Australia. USA. All Europe and Asia
Q.How about your after-sales policy?
A:Customer first is our always principle . All of our products normal warranty is 24months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .
Q.Do you accept customer Logo and customized ?
A:we accept kinds of customized and logo of all of our products for customers
Q:How can we contact with you?
A:Whatsapp&Wechat : +86-15818573270
