6 12 18 33 zones waterproo security inspection gate with safe alarm system for prison /supermarket/ bust station

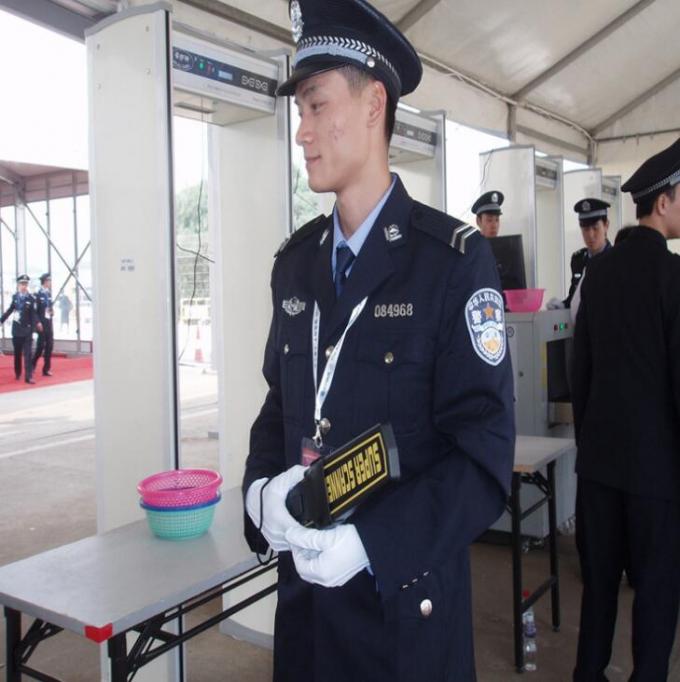

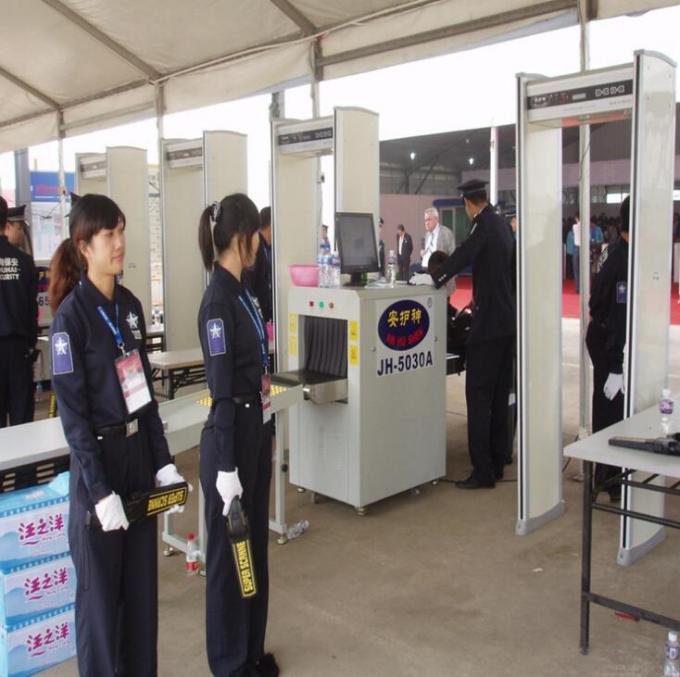

Now the security inspection gate is used in hotel ,airport ,court ,prison ,supermaket,bust station ,hospital and and even private house and convienience stores
for the voltage ,the voltage will be 110v or 220v to choose
you can tell us the mod you need then we can offer you more details .
||GB15210-2003<WALK THROUGH METAL DETECTOR>

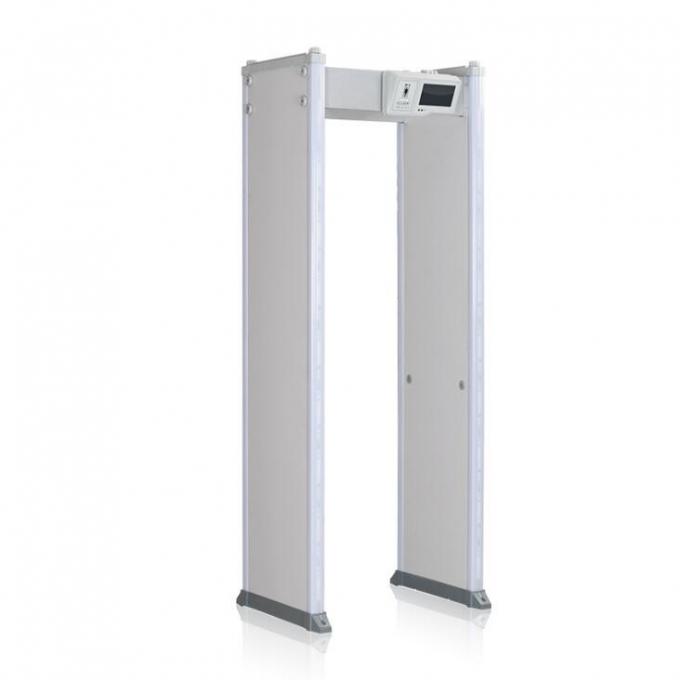

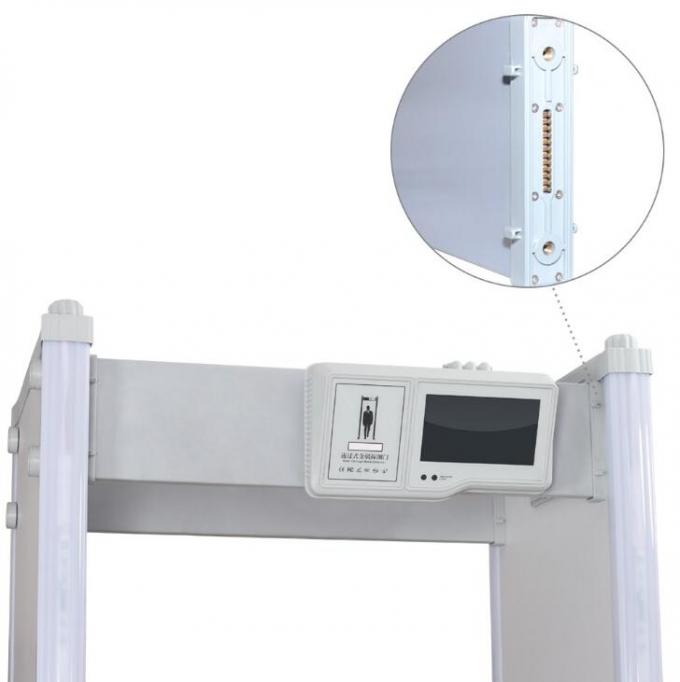

Modular design allows for a quick and easy assembly, only 4 screws to mount it.
Pinpoint Detection Zones

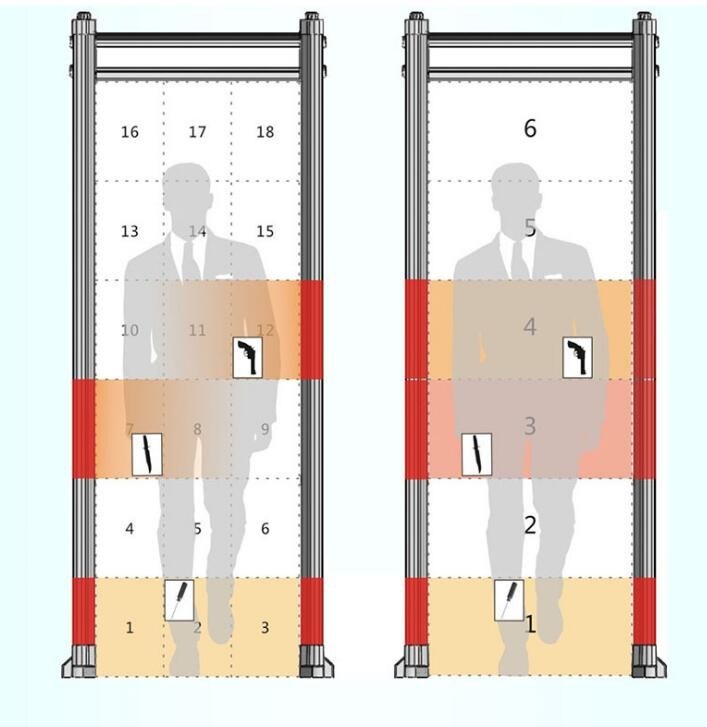

there are 33 distinct pinpoint detection zones for full target coverage on the left, centre and right side of the body from head to toe
on the entrance of the archway ,there are traffic light to remind you the detector is ready for passenger.
Audible and visual alarms

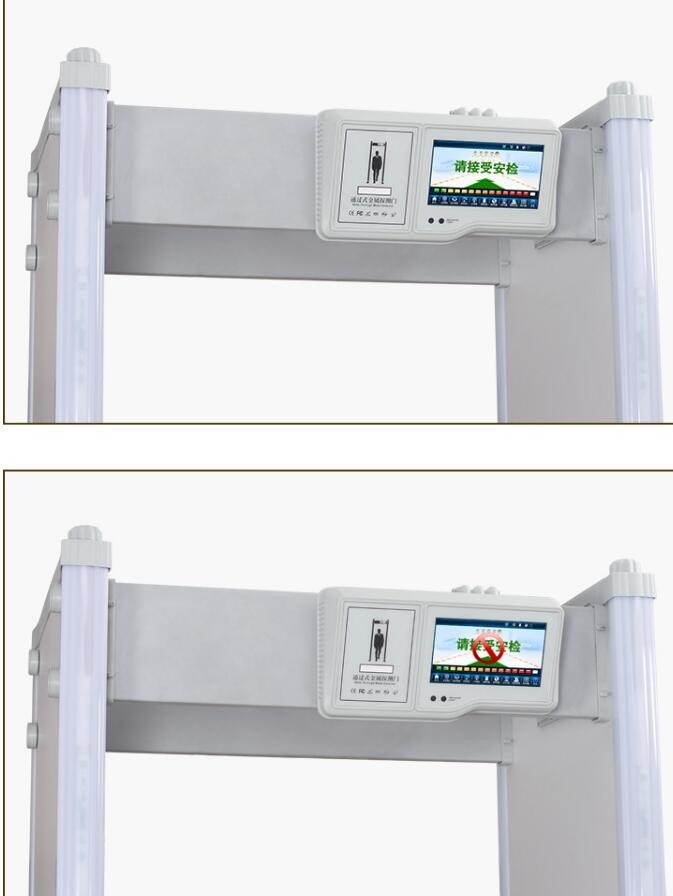

there is audible alarm and visual LED lights signal when a target has been detected ,the pinpoint lights on the exit gatepost will show the location of any offending object.
The access control panel is designed for use by authorized personnel with specific, multi-level security codes.it allows authorized users to change settings.
no battery is required for memory retention.while the unit is in operation,a self-test is performed , any failures or problems will be immediately reported on the LCD display
-20`C to +70`C;humidity:to 95% non-condensing
2)power fully automatic 100 to 240VAC,50 or 60 hertz,5watts;no rewiring, switching or adjustments required
3) weatherproofing/foreign object protection standards meet IP55,IEC standard.
counter count the number of passenger that have passed through the detector, the number of alarms and calculates alarm percentage

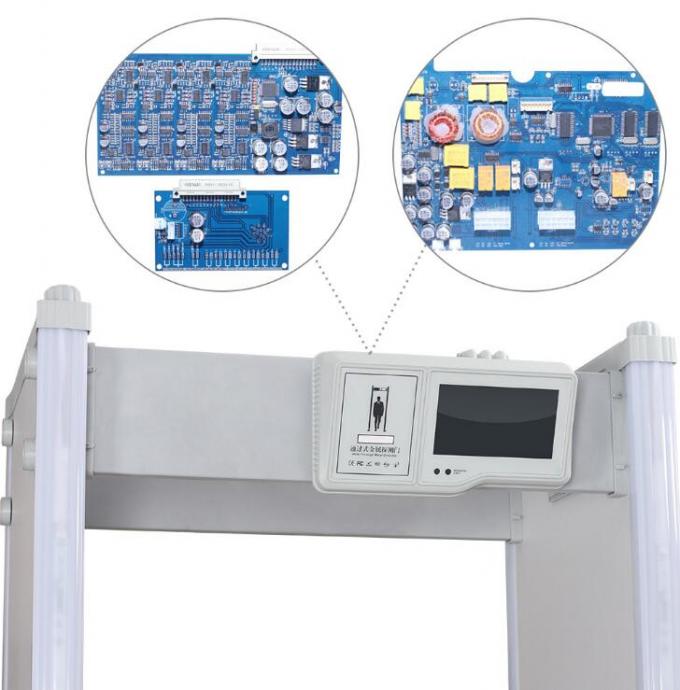

dual channels and DSP circuit allow several to operate simultaneously in close proximity to another
audible tone and volume adjustable.bright LED visual alarm
7)target pinpoint lights
thirty-three distinct zones are displayed with two independent columns of LED' located on exit side of the gate
size of alley(cm):224(height)x76(width)x58(depth)
shipping size(cm): 227x73x22 (side panel ) 80 x 59 x28cm (control box)
shipping weight: 80kg
if there are any need for you ,please feel free to contact me .
