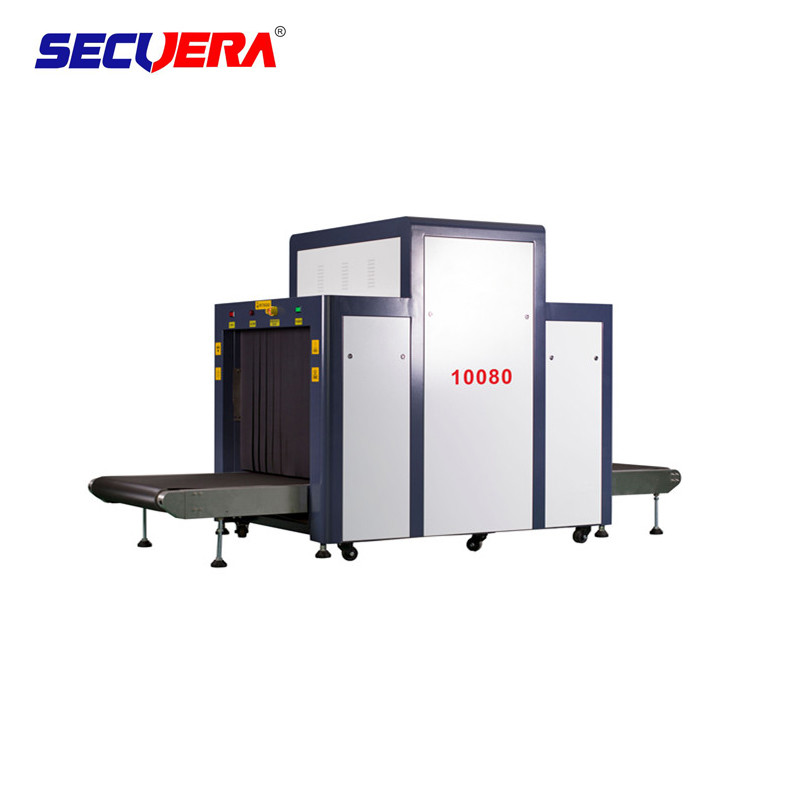

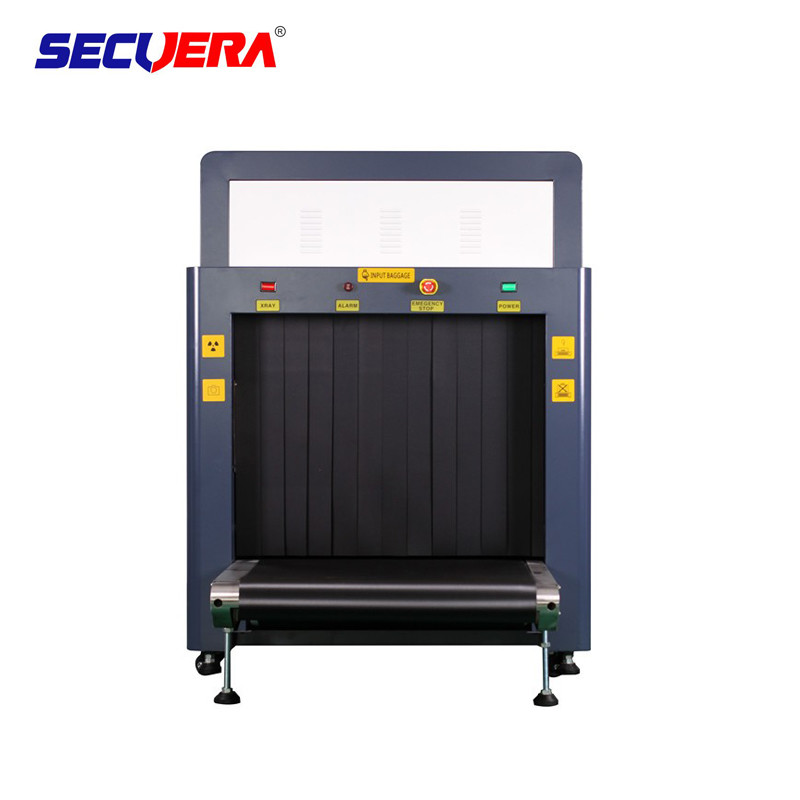

500W Airport Baggage Screening Equipment , Spellman Luggage Scanning Machine

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE,FCC,ROHS,ISO
Model Number: SE-10080
Minimum Order Quantity: 1 pic
Price: negotiable
Packaging Details: Wooden Box
Delivery Time: 5-8 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 300 pic /Month
Detail Information
Warranty: 3 Years Product Name: Traffic Road Blocker
Life: Over 10 Years Material: 304 Stainless Steel
Application: Factory,School,Prison,Car Parking Station And So On Model Number: SE-10080
Feathers-1: Green Lead Curtain Feathers-2: High Definition Image
Feathers-3: Dynamic Processing Feathers-4: Self-Diagnose
High Light:

portable digital x ray machine

,

x ray baggage scanner


Product Description

Spellman x-ray generator x ray baggage luggage scanner X-ray Scanner Equipment



x ray baggage scanner Features

x ray baggage scanner General Specification
Tunnel size
1000 (W) * 800 (H) mm
Rated power
500W
Rated load
250kg (evenly distributed)
Conveyor height
30cm
Transmission mode
Electric drum
Conveyor thickness
3.0mm
Transport speed
standard 0.22M/S, adjustable speed
Radiation direction
Top-illuminated
Penetration
38mm thick
Penetration resolution
34AWGΦ0.160mm
Line resolution
resolution 40AWGΦ0.0787mm>44SWG singlesolid core copper wire
Tube voltage / tube current
140KV/0.5mA
Leakage rate
<1.0μGy/h from the outer surface of the casing at 5CM
Single dose
radiation dose <1.5uGy
Net weight
550Kg
Product volume
320*131*172(cm)
Ray beam divergence angle
80 degrees
Equipment noise level
<55db
Pass rate
720 / h ~ 1500 / h
Leakage current
<0.5mA
Cooling
Sealed circulating oil cooled, 100
Work cycle
full cycle, need to be cooled
Rated voltage
AC 220V 50HZ (±10%)
Film Safety
ISO1600 Film Safety
Working temperature / humidity
-10 ° C ~ 45 ° C / 20% -95% (non-condensing)
Storage temperature / humidity
-20 ° C ~ 60 ° C / 20% -95% (non-condensing)
x ray baggage scanner Image processing system
1. X-ray sensor: L-shaped photodiode array detector, 16bit accuracy
2. Multi-energy color: organic matter is displayed in orange, inorganic substance is displayed in blue, mixture is displayed in green, and unclear area is displayed in black.
3. High energy / low energy: two energy switching display
4. Hazardous materials assisted detection: assisting in the detection of dangerous goods such as some typical drug explosives
5. Independent console: easy to read, can be separated from the host by a maximum distance of 2.5m, 19-inch high- resolution display
6. Magnifying glass local zoom function, edge enhancement object contour edge is more clear, easy to penetrate, full screen imaging graphics without distortion
7. Adopt network port transmission technology to improve information transmission speed



Packaging& Delivery:
1. Packaging: According to Standard Export Packing or as per customers' requirements
2. Delivery: Express/ Air/ Sea/ under the requirements of customer
3. Taxes & duties: International customers are responsible for all duties and taxes,
please contact your local authority for questions related to the amount of duties or taxes
you will be responsible for.



Our services:
1. Securina provides full operational and technical training support by experienced engineers
2. Phone technical support

FAQ

Q: Are you manufacturer or trader?
A:We are manufacturer, we have own factory in Shenzhen, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.



Q. Do you sell the accessories for Products ?
A:Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.



Q.How about the packing for product?
A:Is it easy damaged during transportation? For light structure products like Gold detector. Hand held metal detector and so on we takes of strong carton box . For heavy structure products like conveyor belt needle detector. Food metal detector X ray machine .Our packing is Standard Export ploy Wooden Case. Every prepackage have a plastic bags cover .



Q. What’s your main product?
A:We professional in needle detector. Metal detector. X ray machine and other related electronic products and machines



Q.Where is your main sales market?
A:Our Gold meal detectors customer all over the world. Our hand metal detector and walk through metal detector mainly in Southeast of Asia. South of America.Middle east. East Europe and Africa Our needle and food metal detector mainly customers are from Australia. USA. All Europe and Asia



Q.How about your after-sales policy?
A:Customer first is our always principle . All of our products normal warranty is 24months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .



Q.Do you accept customer Logo and customized ?
A:we accept kinds of customized and logo of all of our products for customers



Q:How can we contact with you?
A:Whatsapp:+15818573270
Skype&Wechat:secuera88
