| Place of Origin: | China |
|---|---|
| Brand Name: | SECUERA |
| Certification: | CE,FCC,ROHS,ISO |
| Model Number: | SE-100100 |
| Minimum Order Quantity: | 1 pic |
| Price: | negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 5-8 workdays |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 300 pic /Month |
| Warranty: | 3 Years | Product Name: | Traffic Road Blocker |
|---|---|---|---|
| Life: | Over 10 Years | Material: | 304 Stainless Steel |
| Application: | Factory,School,Prison,Car Parking Station And So On | Model Number: | SE-100100 |
| Feathers-1: | Review Feature , Recall Previously Image , Zoom Overview , Step Less Zoom | Feathers-2: | Display Date/time , Baggage Counter , User ID Number |
| Feathers-3: | TIP And Training Software , Free Programmable Keys , Real Time Diagnostic | Feathers-4: | Self-diagnosis Function |
| High Light: | portable digital x ray machine,x ray baggage scanner |
||

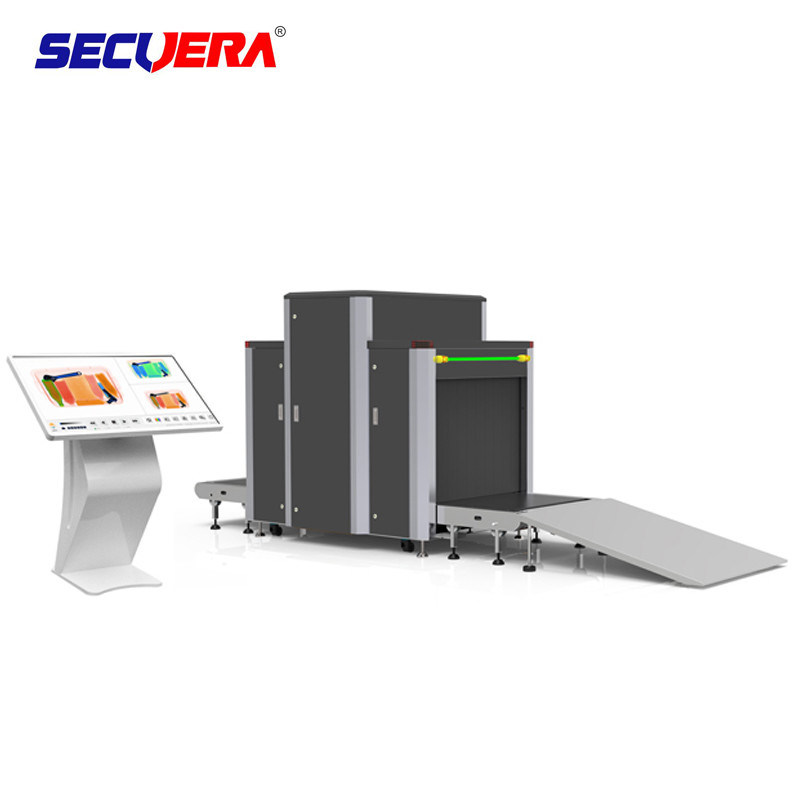

X-ray Airport Cargo Baggage Security Scanner X-ray Luggage Inspection Equipment Dental X-ray Scanner Machine
x-ray security inspection machine Application
| End user | Recommend X Ray Baggage Scanner model NO. |
| Airports, Transport terminals | SF6040; SF6550; SF10080; SF100100 |
| Factories (shoes, bags), | SF5030; SF5636; SF6040; SF6550 |
| Courthouses, Embassies, | SF5030; SF5636; SF6040; SF6550 |
| Military installations | SF5030; SF6040; SF6550; SF8065; SF100100 |
| Prisons, Hotels, Schools, | SF5030; SF5636; SF6040; SF6550; SF10080 |
| Security checkpoints, | SF5030; SF6040; SF6550; SF8065; SF10080 |
x-ray security inspection machine Specification
| Tunnel Size : | 1000 (W) ×1000 (H) mm |
| Power Requirement: | 220V AC (±10%) 50±3Hz |
| Power Consumption: | 1.0KW (Max) |
| Noise level: | <58dB |
| Conveyor Speed: | 0.22m/s |
| Conveyor Max Load: | 250 kg |
| Wire Resolution: | 38AWG |
| Spatial Resolution: | 1.0mm Horizontal and Vertical |
| Steel Penetration: | 38mm |
| Single inspection dosage: | < 1.6μGy |
| Leakage radiation: | <0.2µGy/h |
| Film Safety: | Guarantee ISO1600 Film |
x-ray security inspection machine Specifications
| Tube Current: | 1.0~1.5mA |
| Anode Voltage: | 150~200KV |
| Cooling: | Sealed oil bath with forced air |
| Duty Cycle: | Rated for 100%Duty Cycle |
| Beam Direction: | Downward |
| Beam Angle: | 80° |
| Detector: | L-shaped Array |
x-ray security inspection machine Specifications
| Operating temperature/humidity: | 0ºC ~ 45ºC/20% ~ 95% (Non-condensing) |
| Storage temperature/humidity: | -20ºC ~ 60ºC/20% ~ 95% (Non-condensing) |
x-ray security inspection machine Specification
| Processor: | I3-4340 (Dual core four thread) 3.6 GHZ 22nm 54W |
| Memory: | 4GDDR3 Loptop Memory |
| Hard Disk : | 1T |
x-ray security inspection machine Parts Advantage
1. x-ray generator is from Beijing KV tech
2. Interroll from Germany
3. Receiver from DEETEE Finaland
x-ray security inspection machine Image Display
1.19'' High Resolution LCD Monitor *2
2. Display Resolution: 1280*1024;24 bit/pixel Color
3. Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
4. Image storage: 100,000 pictures in real time (can be customized)
5. Zoom: 64 Times Enlarge, Whole screen continuous observation
6. Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color,mixture in green color
7. Edge enhancement: Object contour edge is more distinct
8. Super image enhancement: Image detail is more distinct
9. High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
10. Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
11. Brightening/dimming: Increase/Decrease brightness of image
12. Image recurrence: Display the previous twenty images and process any one of them
13. Image restoration: Restore image to initial status
14.Assist to detect drug and explosive powder
x-ray security inspection machine Special features
1. Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
2. Safety ray: Ray is transmitted under automatic control, avoiding the error
3. One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
4. Eagle eye: Capable of expediently observing the magnifying area
5. Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
6. TIP and training software , free programmable keys , real time diagnostic
7. Display date/time , baggage counter , User ID number
8. Review feature , recall previously image , zoom overview , step less zoom
Packaging& Delivery:
1. Packaging: According to Standard Export Packing or as per customers' requirements
2. Delivery: Express/ Air/ Sea/ under the requirements of customer
3. Taxes & duties: International customers are responsible for all duties and taxes,
please contact your local authority for questions related to the amount of duties or taxes
you will be responsible for.
Our services:
1. Securina provides full operational and technical training support by experienced engineers
2. Phone technical support
Q: Are you manufacturer or trader?
A:We are manufacturer, we have own factory in Shenzhen, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.
Q. Do you sell the accessories for Products ?
A:Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.
Q.How about the packing for product?
A:Is it easy damaged during transportation? For light structure products like Gold detector. Hand held metal detector and so on we takes of strong carton box . For heavy structure products like conveyor belt needle detector. Food metal detector X ray machine .Our packing is Standard Export ploy Wooden Case. Every prepackage have a plastic bags cover .
Q. What’s your main product?
A:We professional in needle detector. Metal detector. X ray machine and other related electronic products and machines
Q.Where is your main sales market?
A:Our Gold meal detectors customer all over the world. Our hand metal detector and walk through metal detector mainly in Southeast of Asia. South of America.Middle east. East Europe and Africa Our needle and food metal detector mainly customers are from Australia. USA. All Europe and Asia
Q.How about your after-sales policy?
A:Customer first is our always principle . All of our products normal warranty is 24months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .
Q.Do you accept customer Logo and customized ?
A:we accept kinds of customized and logo of all of our products for customers
Q:How can we contact with you?
A:Whatsapp:+15818573270
Skype&Wechat:secuera88
