500mm*300mm X Ray Screening Machine Parcel Inspect Scanner Networking Function

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE,FCC,ROHS,ISO
Model Number: SE-5030A
Minimum Order Quantity: 1 pic
Price: negotiable
Packaging Details: Wooden Box
Delivery Time: 5-8 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 300 pic /Month
Detail Information
Warranty: 3 Years Product Name: Traffic Road Blocker
Life: Over 10 Years Material: 304 Stainless Steel
Application: Factory,School,Prison,Car Parking Station And So On Model Number: SE-5030A
Feathers-1: Alarm Function Feathers-2: Networking Function
Feathers-3: Images Output Feathers-4: BI-direction(two-direction) Scanning
High Light:

portable digital x ray machine


x ray baggage scanner

Product Description

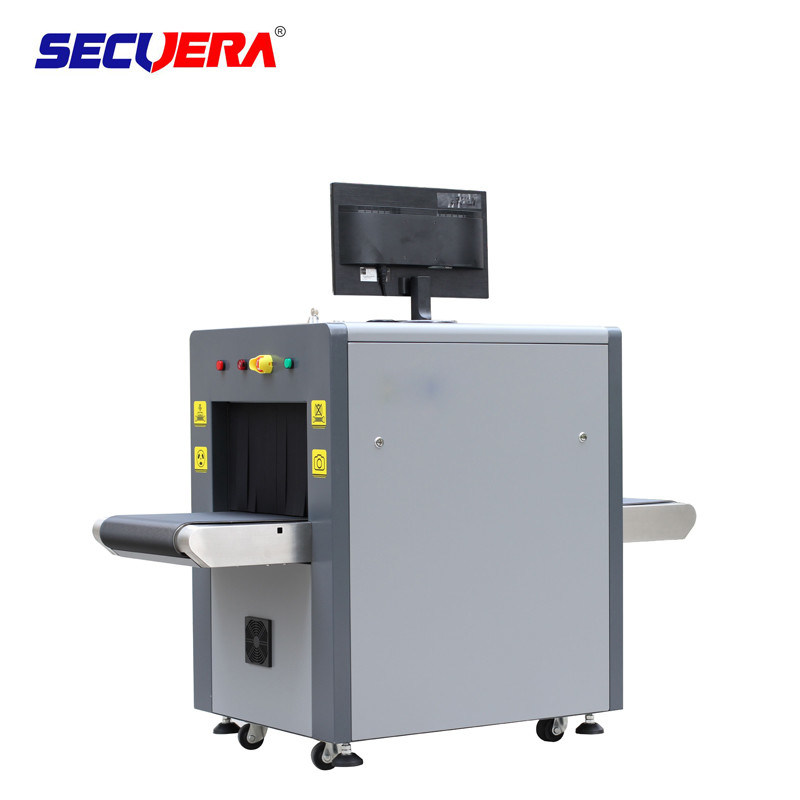

OEM 500mm*300mm X-ray Baggage Scanning Machine Parcel Inspect Scanner


X-ray Parcel Scanner 5030

Physical Details
Tunnel size 500(W) x 300(H) mm.
Product dimensions 2170mm(L)x720mm(W)x1193mm(H).
Wooden packagedimensions 1750mm(L)x850mm(W)x1400mm(H).
Shipping weight Gross weight: 310 kg.
Working temperature (-20)~(+60)/Humidity 5% to 95%, non-condensing.
Storage temperature (-30)~(+70)/Humidity 5% to 95%, non-condensing.
Power supply 110~240VAC (-10%~ +20%),50/60±3Hz.
Power consumption < 0.5 kw/h.
Certificates Meets electrical safety and compatibility requirements for CE(EMCDirective~2014/30/EU and LVD Directive~2014/35/EU),ROHS(Directive~2011/65/EU).
X-ray Generator
X-ray tube head Self-contained.
Tube voltage rating 80 kV(default), can be tailor-made based on requirement.
Tube current 0.2~0.6 mA.
Cooling/working period 100% with sealed oil bath cooling.
Beam direction Diagonal from bottom (60°beam divergence).
X-ray leakage dose Less than 0.35 μGy / h (5cm distance from any position of the machine).
Single scanning X-ray leakage dose Less than 1 μGy / h.
High X-ray leakage protection Two levels lead curtains to reduce the leakage, and protect operators & passengers.
X-ray Parcel Scanner 5030 Inspection Performance
Steel penetration 10 mm typical.
Conveyor speed 0.22m/s.
Conveyor height 740mm(including the support tray).
Wire resolution 38 AWG wire,40 AWG(0.0787 mm) typical.
Space resolution Horizontal Φ 1.0mm;vertical Φ 1.0 mm.
Noise <55dB.
Film safety Guaranteed for high-speed film up to ISO 1600 (33 DIN).
The array detector L-type photo-diode single energy detector.
Video 19 inch color LCD monitor, pixel 1280 x 1024 video card.
X-ray Parcel Scanner 5030 Image Performance System
Auto soft operating system Win 7 English version.
Standard functions High & Low penetration/Super penetration/Organic & in-organic image/local & edge enhancement/zoom in & zoom out/Image resolution/Image storage/Image management/Black & white image/Gray image/Belt forward & reversal/Marks
Image storage 100,000 images can be stored and process continuously.
Pull back/forward 30 images to process.
64x smart zoom Adjustable zoom preview window.
X-ray Parcel Scanner 5030 Other Functions
Alarm function Liquid and high density substances will give audio & indicator alarm with a red frame.
Networking function Can be connected to a dedicated virtual LAN configured tested by the assignedcommunications subcontractor.
Images output Images can be put out with USB interfaces.
X-ray Parcel Scanner 5030 Highlighted
BI-direction(two-direction) scanning.
Customized roller stand.
Double layer wooden packages.
Customized software language(Basic is English).
Normal keyboard and industrial keyboard optional.

































































































Packaging& Delivery:
1. Packaging: According to Standard Export Packing or as per customers' requirements
2. Delivery: Express/ Air/ Sea/ under the requirements of customer
3. Taxes & duties: International customers are responsible for all duties and taxes,
please contact your local authority for questions related to the amount of duties or taxes
you will be responsible for.


Our services:
1. Securina provides full operational and technical training support by experienced engineers
2. Phone technical support


Q: Are you manufacturer or trader?
A:We are manufacturer, we have own factory in Shenzhen, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.


Q. Do you sell the accessories for Products ?
A:Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.


Q.How about the packing for product?
A:Is it easy damaged during transportation? For light structure products like Gold detector. Hand held metal detector and so on we takes of strong carton box . For heavy structure products like conveyor belt needle detector. Food metal detector X ray machine .Our packing is Standard Export ploy Wooden Case. Every prepackage have a plastic bags cover .


Q. What’s your main product?
A:We professional in needle detector. Metal detector. X ray machine and other related electronic products and machines


Q.Where is your main sales market?
A:Our Gold meal detectors customer all over the world. Our hand metal detector and walk through metal detector mainly in Southeast of Asia. South of America.Middle east. East Europe and Africa Our needle and food metal detector mainly customers are from Australia. USA. All Europe and Asia


Q.How about your after-sales policy?
A:Customer first is our always principle . All of our products normal warranty is 24months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .


Q.Do you accept customer Logo and customized ?
A:we accept kinds of customized and logo of all of our products for customers
