| Place of Origin: | GuangDong ,China |
|---|---|
| Brand Name: | SECUERA or OEM |
| Certification: | CE |
| Model Number: | SE-1803 |
| Minimum Order Quantity: | 1 pic |
| Price: | negotiation |
| Delivery Time: | 5-8 workdays |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Inspection Height: | 0.1m~2m | Inspection Width: | 1m |
|---|---|---|---|
| Spatial Resolution: | 2mm | Scanning Speed: | 0.1s |
| Testing Time: | 4s | Dimension Include Platform: | 2375×1680×1498mm |

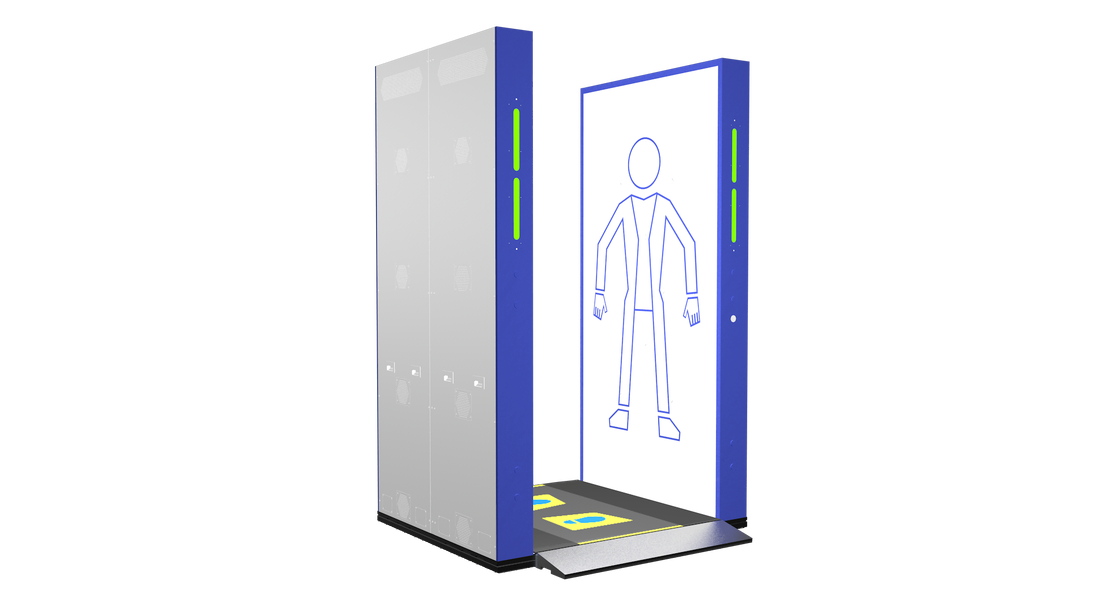

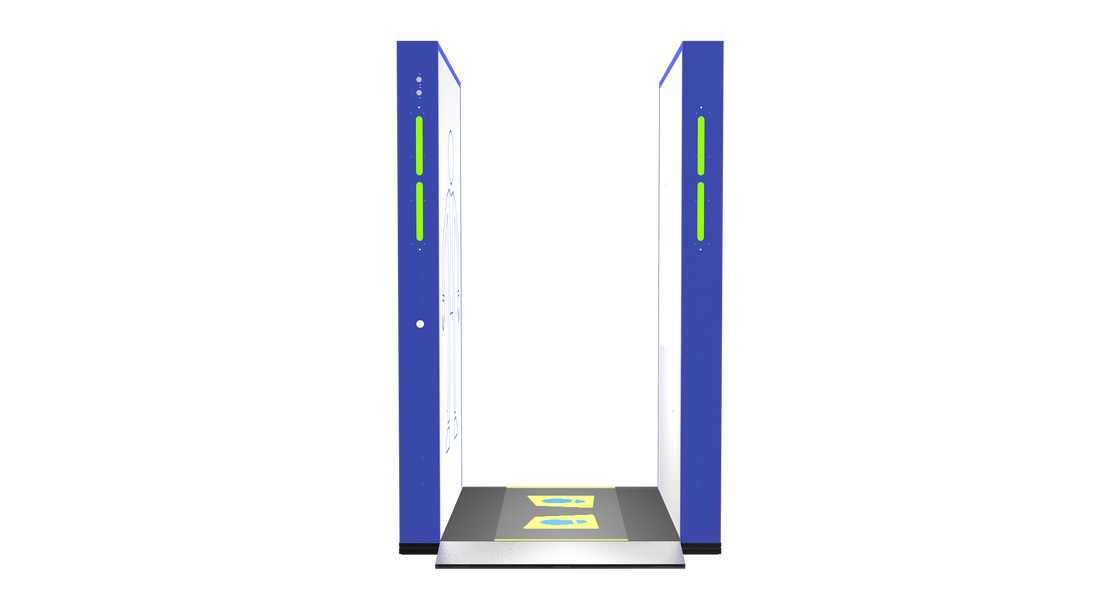

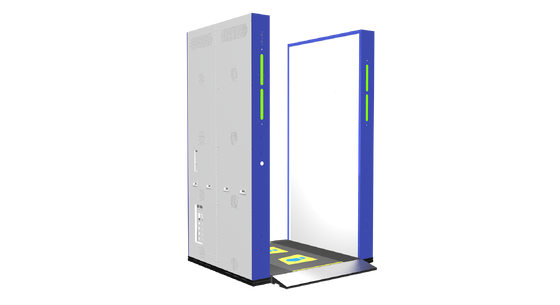

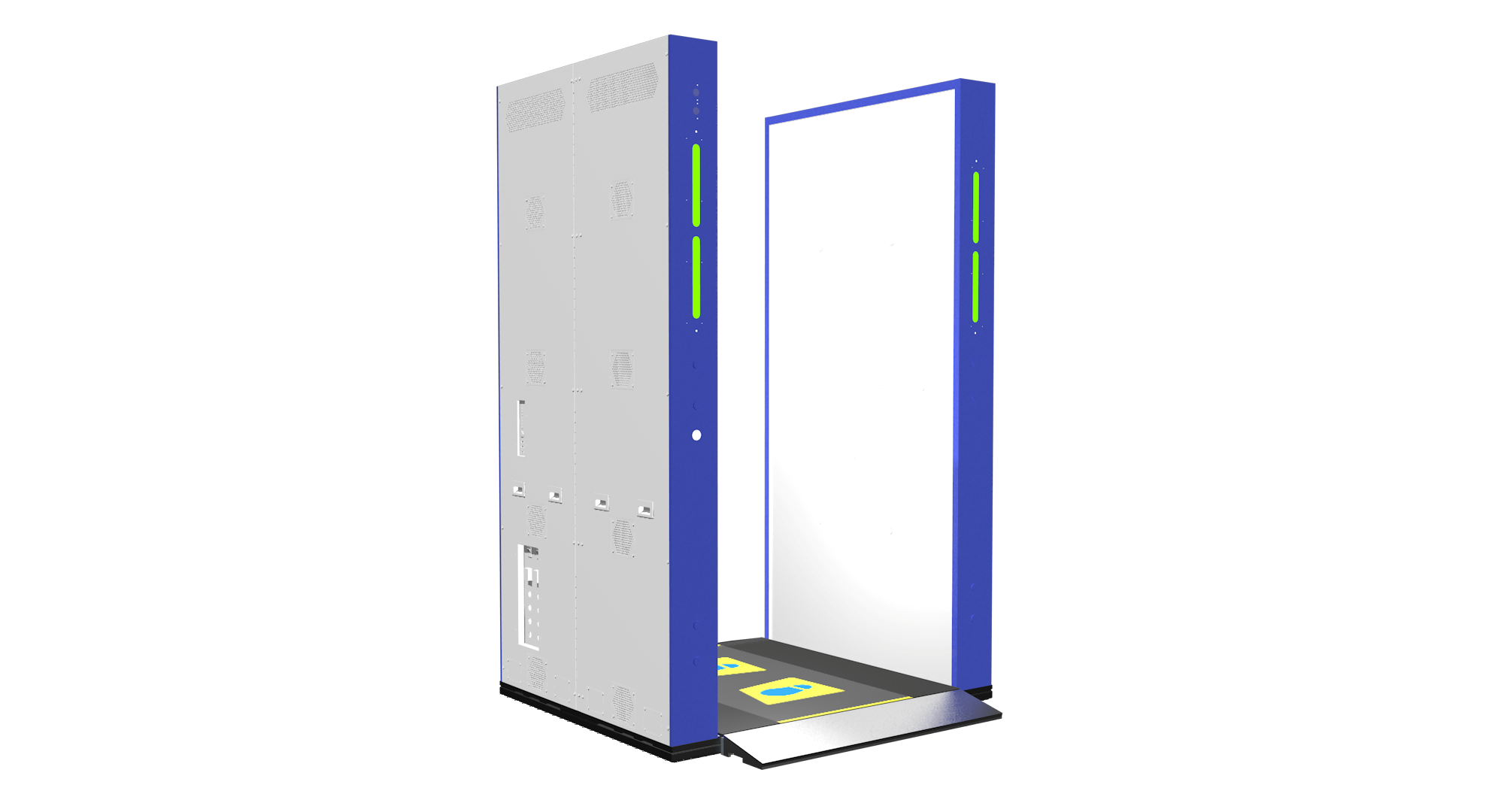

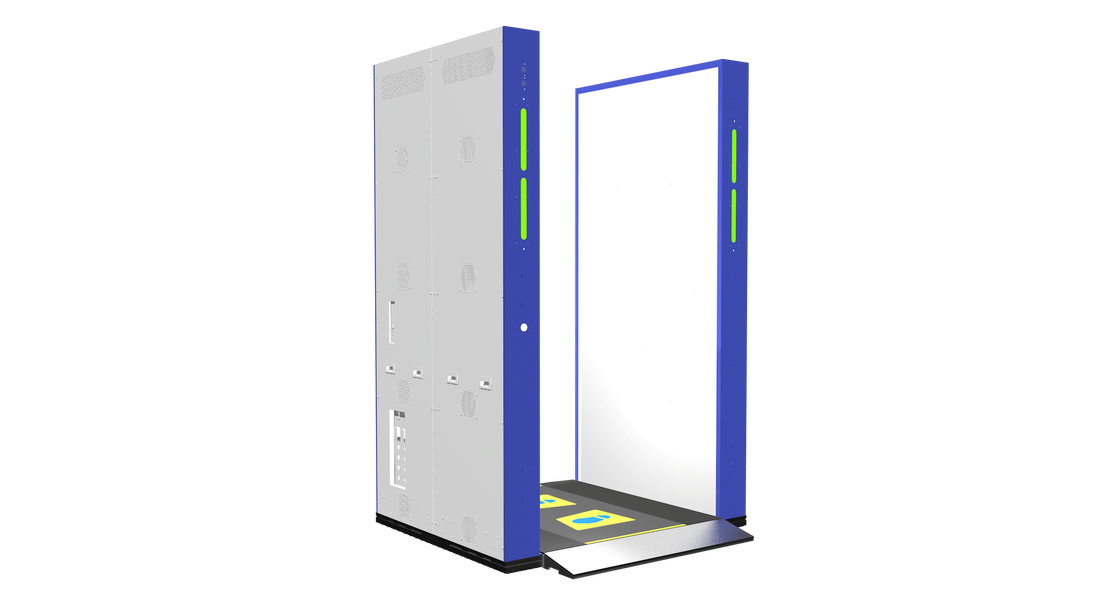

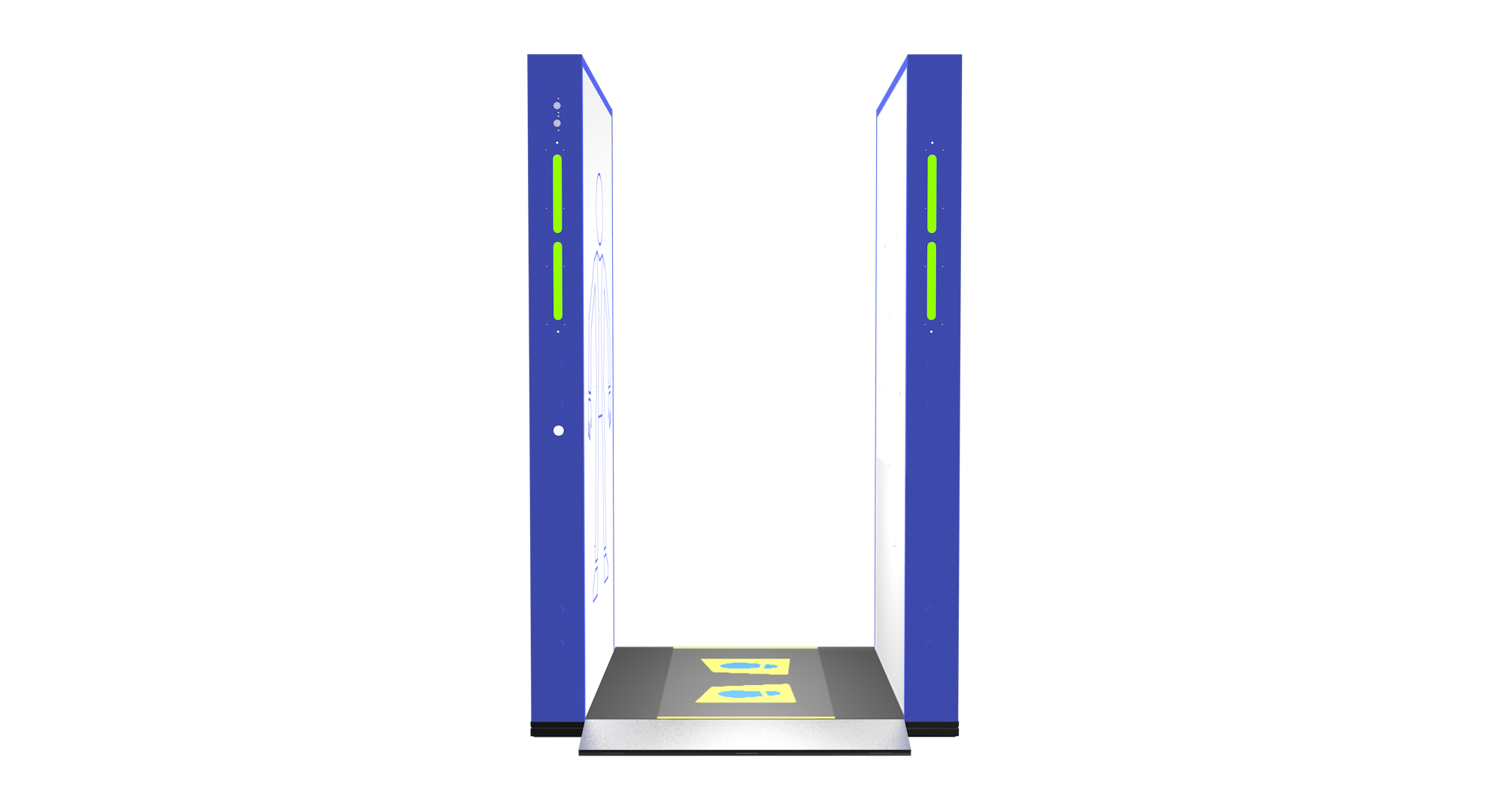

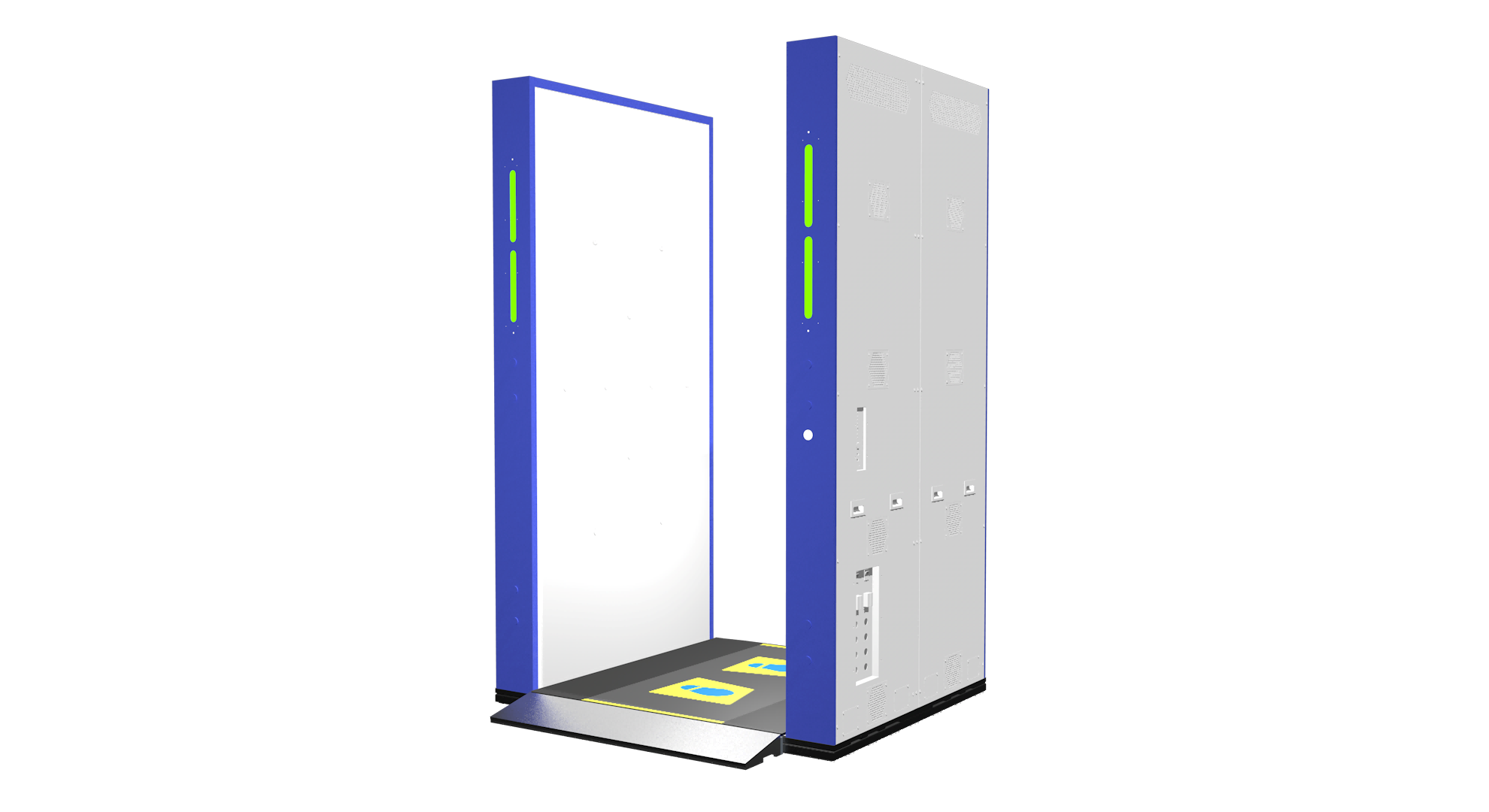

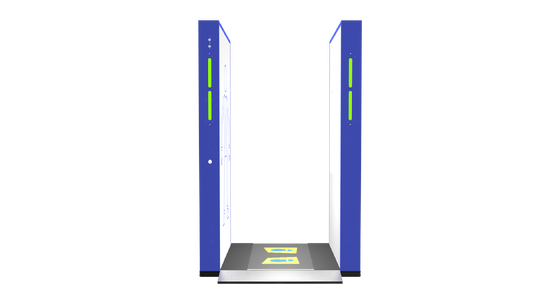

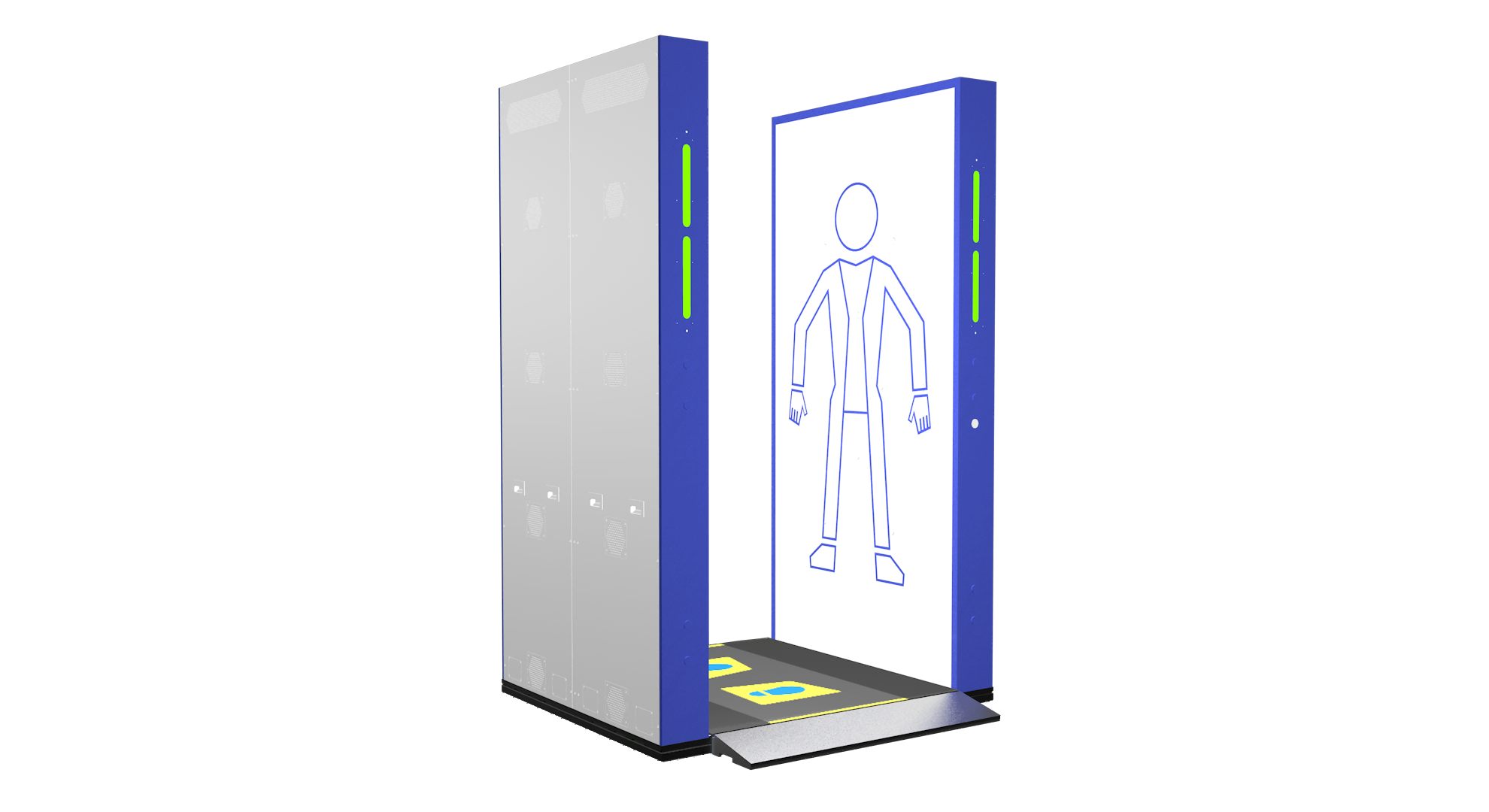

SE-1803 millimeter wave human body security scanner is a body security screening equipment which developed by SHENZHEN Secuera independently.SE-1803D has already got the A3 Level Usage License Certificate of CAAC safety screening equipment, which is the higest detection level in China. Based on ourself R&D 80GHz millimeter wave chip, the device uses 2D MIMO scanning technology to image the human body. Combining AI technology, the equipment automatically identifies the suspicious objects hidden under the clothes, including metal and non-metal, it realizes the non-contact security check for human body. Thanks to the 2D MIMO scanning technology, SE-1803 has faster scanning speed, higher resolution and detection rate, its unique barrier-free pass design offer a better feeling for the inspected person. In addition, SE-1803 millimeter wave human body security scanner integrates the foot metal detection module, which can detect the metal items hidden in the foot effectively, and improve the detection range furtherly.
ShenZhen Secuera Tech. Co., Ltd. focuses on the research and development of highly integrated millimeter wave, terahertz chips and related radar modules, and provides corresponding solutions according to customer requirements. Our company is dedicated to providing high-precision high-frequency measurement equipment and imaging modules, exploring the application of high-frequency radar in smart industry, smart city, intelligent security and other fields, and providing radar modules and overall solutions for industry partners.
SE-1803 millimeter wave human body security scanner Features
| Self-develop Chip | Self-developed 80GHz Millimeter Wave Chip |
| 2D MIMO Array Tech | Based on 2D MIMO Array Tech., it can achieve fastest scanning speed 0.1s and 3mm resolution |
|
All electronic arrays scan without moving structures |
All electronic arrays scan, without moving structures, low maintainence cost. |
| Automatic identification for all objects |
Based on the Al automatic detection, the device can detect the metal and non-metal obiects hidden under the clothes effectively while protecting the privacy of the passengers. |
SE-1803 millimeter wave human body security scanner Specifications
| Type | Performance | Remark |
| Inspection Height | 0.1m~2m | Lowest ～ Highest |
| Inspection width | 1m | - |
| Spatial resolution | 2mm | - |
| Scanning speed | 0.1s | - |
| Testing time | 4s | - |
| Dimension Include platform | 2375×1680×1498mm | Height x Deepth x Width |
| Whole set device dimension | 2375×1208×1498mm | Height x Deepth x Width |
| Inner width | 1120mm | Foot detection(Optional) |
| Working temp | -5℃～45℃ | Working temp. scope |
| Working Humidity | ≤80% | Relative humidity range |
| Working Voltage | 220VAC(-15%~+10%) | extra protective grounding |
SE-1803 millimeter wave security scanner mainly applies to airport, rail traffic, customs, sensitive events, and major events. For these occasions, the device can provide a security solution, that is thorough, safe, and effective. It can automatically identify the hidden prohibited objects made by metallic and nonmetallic materials and safeguards the security of public places.
