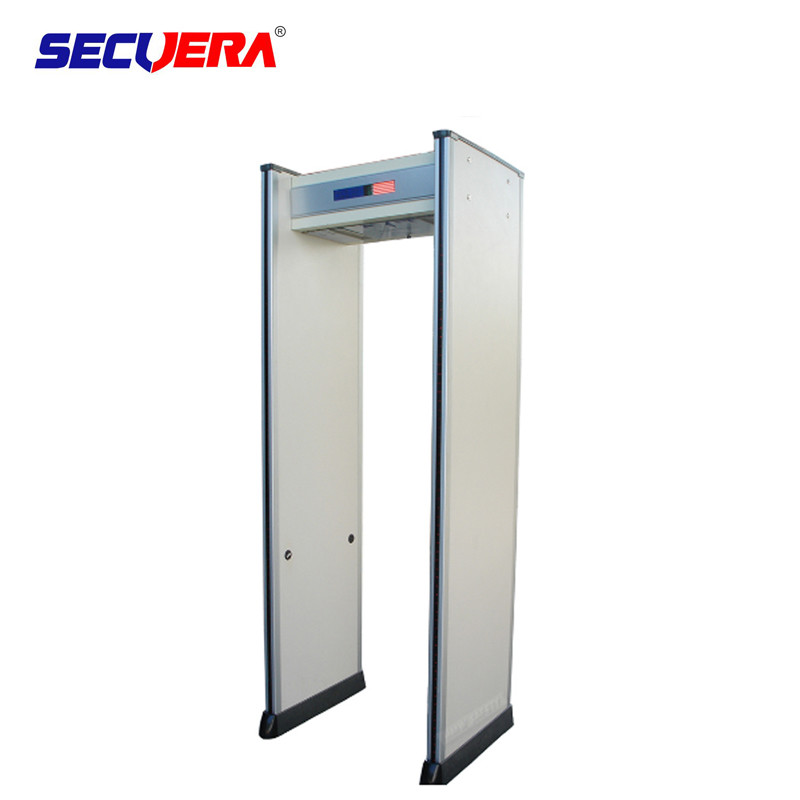

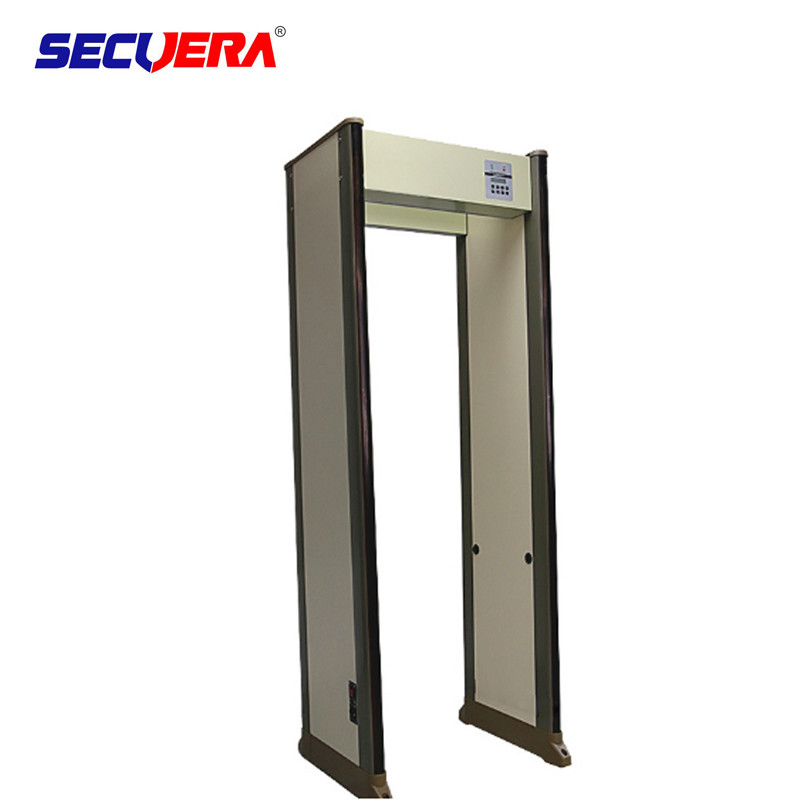

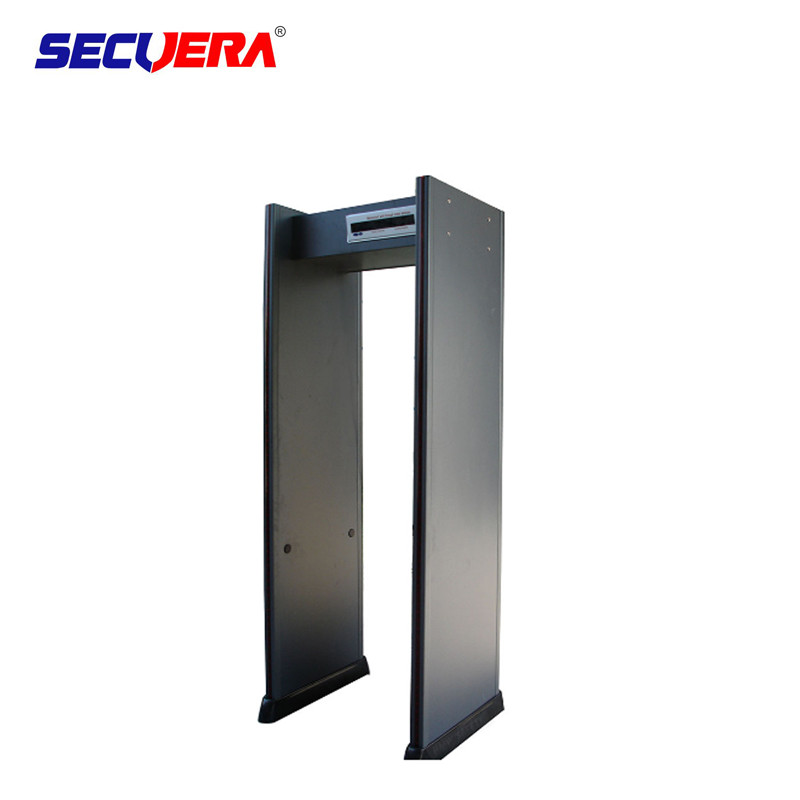

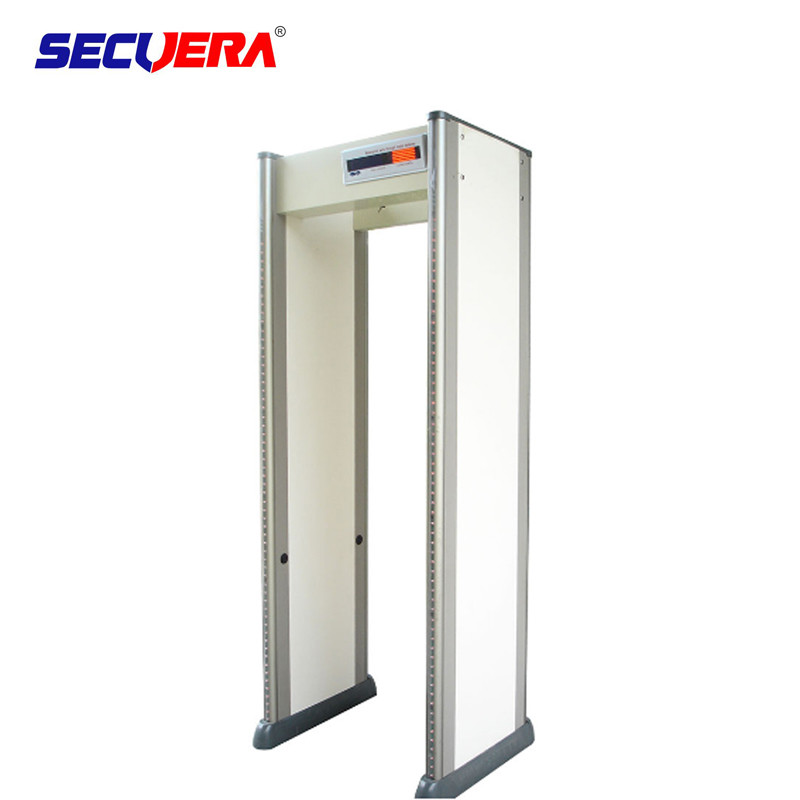

walk through metal detector gate for security Systems metal detector scanner door 6 zones detector

Basic Information
Place of Origin: China
Brand Name: SECUERA
Certification: CE,FCC,ROHS,ISO
Model Number: SE-600L
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: carton box
Delivery Time: 5 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 600pcs per month
Detail Information
Each Sensitivity: 0-255 Level Working Frequency: 50-60HZ
Grosee Weight: 50KG Detection Zones: 18 Zones(8/18/24/33/45 Is Optional)
Optional: Remote Control Alarm: Sound And Light
Power Supply: 220V/AC Warranty: 2 Years
Feature-1: The Both Sides LED Indicators Will Show The Metal Location Exactly Feature-2: Password Protection:Only Allow The Authorizes To Operate
High Light:

pass through metal detector


security walk through gate

Product Description

walk through metal detector gate for security Systems metal detector scanner door 6 zones detector


walk through metal detector door Performance and Feature

1. The both sides LED Indicators will show the metal location exactly.

2. Detection zones: Divided into 6 overlapping zones basic on human body to avoid the weak/blind areas.

3. Alarms methods: Sound &Visual Alarm. It will show the location of the forbidden metal hidden in human body such as weapon and knives exactly with the Corresponding height LED indicators in both side door panel.

4. Sensitivity:100 sensitivity steps in each program. Separate vertical zones with independently adjustable sensitivity from 0-99.

5. Password protection:Only allow the authorizes to operate. The password can be revised as requirement. It is high safe.

6. Intelligent statistics:Can count the pass and alarms automatically.

7. Easy to installation:Just take 20mins to install or remove follows user’s manual.

8. Harmless to human body:Reaching the EMC electromagnetic radiation, harmless to the heart pacemaker, pregnant, the floppy disk, film and video etc.


walk through metal detector door Technical Parameter

Interior dimension 2100mm(h)*700mm(w)*500mm(d)
Exterior dimension 2200mm(h)*800mm(w)*500mm(d)
Gorss weight 65kg
Color Dark Grey, Silver or as customized
Alarm sound alarm and Visual LED
Sensitivity 100 sensitivity steps in each program


Interference suppression digital filtering by signal processor. Several frequencies to suppress local electrical noise


Power supply AC90V-250V, 50HZ-60HZ; Battery(optional):12VDC
Consumption typical 35w(AC),25W(DC)
Ambient Operating Temperature from 20℃ to +60℃(from -4℉ to +140℉)
Humidity 0 to 95%


walk through metal detector gate Technical specification

Electrical current AC100V~240V 50/60Hz
Power 10W
Work environment -20℃~+45℃
Gross Weight 90kg
Outer frame 2220mm (h) x 820mm (w) X 522mm (d)
Inner frame 2000mm (h) X 700mm (w) X 522mm (d)

walk through metal detector gate Characteristic
Two LED light bars on both door panels: gives alarm corresponding to the height or human body.
6/12/18 Pinpoint zones to precisely identify multiple target locations from head to toe.
Advanced broadband detection technology: can detect ferrous and non-ferrous articles.
Sensitivity adjustable from Level 0 to300
High: Can detect a clip
Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes.
Shock proof to avoid false alarm
Sound and light alarm
Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
Tamper-Proof: operate program is protected by password.
Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources.
Mix distance between two Walk-thru: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity
Harmless to pregnant woman and heart pacemaker
Remote control(Optional)
Connect with computer, camera, turnstile, (Optional)



Packaging& Delivery :
1. Packaging: According to Standard Export Packing or as per customers' requirements
2. Delivery: Express/ Air/ Sea/ under the requirements of customer
3. Taxes & duties: International customers are responsible for all duties and taxes,
please contact your local authority for questions related to the amount of duties or taxes
you will be responsible for.

Our services :
1. Securina provides full operational and technical training support by experienced engineers
2. Phone technical support



Q: Are you manufacturer or trader?
A:We are manufacturer, we have own factory in Shenzhen, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.

Q. Do you sell the accessories for Products ?
A:Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.

Q.How about the packing for product?
A:Is it easy damaged during transportation? For light structure products like Gold detector. Hand held metal detector and so on we takes of strong carton box . For heavy structure products like conveyor belt needle detector. Food metal detector X ray machine .Our packing is Standard Export ploy Wooden Case. Every prepackage have a plastic bags cover .

Q. What’s your main product?
A:We professional in needle detector. Metal detector. X ray machine and other related electronic products and machines

Q.Where is your main sales market?
A:Our Gold meal detectors customer all over the world. Our hand metal detector and walk through metal detector mainly in Southeast of Asia. South of America.Middle east. East Europe and Africa Our needle and food metal detector mainly customers are from Australia. USA. All Europe and Asia

Q.How about your after-sales policy?
A:Customer first is our always principle . All of our products normal warranty is 24months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .

Q.Do you accept customer Logo and customized ?
A:we accept kinds of customized and logo of all of our products for customers

Q:How can we contact with you?
A:Whatsapp&Wechat : +86-15818573270
